Hammond Manufacturing PF11000T12LG24

B005T66TMS

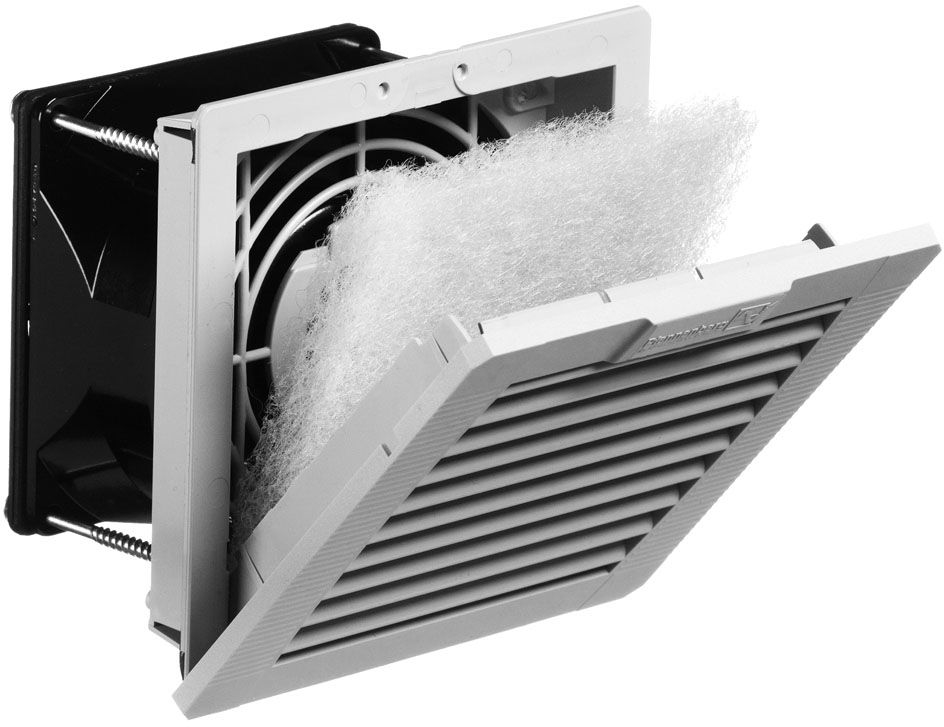

Hammond Filterfan, 10 W/deg C, 24V, 2W, Ip55 - PF11000T12LG24

Hammond Filterfan, 10 W/deg C, 24V, 2W, Ip55 - PF11000T12LG24zoom

Attributes

Key Value
Air Flow17 CFM, 11 CFM
Air Flow Rate16 cfm
Air Flow w/Filter11 CFM
Airflow DirectionIn or Out
Airflow MonitorNo
Airflow with Filter11 CFM
ApprovalsUL, cUL, CE, RoHS, CSA,.
Approximate Size4.3 x 4.3 in. ; 109 x 1.
Approximate Thickness1.9 in. ; 49 mm
Base Product NumberPF11000
Bearing TypeBall Bearing, Sleeve
Bezel ColorLight Gray
BrandHammond Mfg.
Catalog NumberPF11000T12LG24
CategoryBoxes, Enclosures, Racks
ColorGray
ConfigurationSquare
Connection2 wires, 310 mm long
Connection TypeWire Leads
Country of OriginUnited States
Cutout Dimensions3.62 x 3.62"
DescriptionFAN EXHAUST 24V 2W LT G.
Description:16 CFM Filter Fan, 24V .
Detailed DescriptionRack Fan, DC, Square, 1.
Digi-Key Part NumberPF11000T12LG24-ND
Dimensions109 mm H x 109 mm W x 4.
Dimensions(W x H x D)4.3 x 4.3 x 1.93"
Enclosure Cut-Out (in)3.62 "
Enclosure SeriesPF GEN4
Enclosure TypeNEMA 12/IP55
Estimated Weight0.5
Family SeriesHammond Manufacturing F.
Fan TypeDC
Filtration Efficiency/M.88% / G3
Grille ShapeSquare
Gross Weight3 lbs
Housing MaterialThermoplastic
IP RatingIP55
Item NumberPF11000T12LG24
Item TypeElectrical Plates or Co.
Made in USAYes
ManufacturerHammond Manufacturing C.
Manufacturer Part NumberPF11000T12LG24
Manufacturer Product Nu.PF11000T12LG24
Manufacturer Standard L.4 Weeks
MaterialPlastic
MFG Part #:PF11000T12LG24
MfrHammond Manufacturing
MountingSide Mount
Mounting Depth2.44 "
Net Weight3 lbs
Noise Level33 dB(A)
Operating Voltage24 VAC
PackageBox
Part NumberPF11000T12LG24
Power Consumption2 W
Power Rating2 W
Primary TypeFan
Product Series17-38CFM
Product StatusActive
Rated Voltage24 VDC
SeriesPF Series, PF, PF GEN4
Service Life70000 h
Shipping InfoShipped from Digi-Key
Size4.29 x 1.93 (109 x 49) .
Size / Dimension4.29" L x 4.29" W x 2.0.
SpecificationsFan, DC, Square, 11 CFM
Static Pressure0.15 In. H2O (38 Pa)
Sub BrandPF GEN4 Series
Supplier:Hammond Manufacturing
System of ProtectionNEMA Type 12, IP 55
TerminationTerminals
TypeEnclsosure Plates or Co.
Unimpeded Airflow17 CFM
UPC623980015927, 062398001.
UPC Code623980015927
UPC:623980015927
Voltage - Input24VDC
Voltage Rating24 V, 24 VDC
Weight0.35 lb, 0.16 kg, 1.5 l.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comPF11000T12LG24127.591In StockHAMMOND MFG127.59 @ 1
thumbzoomWalker IndustrialPF11000T12LG24148.51In Stock17Hammond Manufacturing148.5 @ 1
Hawk ElectronicsPF11000T12LG24153.11In StockHammond Mfg.153.1 @ 1
thumbzoomturtle.comHMC PF11000T12LG24153.831In StockHammond Manufacturing153.83 @ 1
thumbzoomSolutions DirectPF11000T12LG24154.321In StockHammond Manufacturing0.35154.32 @ 1
thumbzoomCarlton Bates Company62398001592155.521In StockHAMMOND MANUFACTURING155.52 @ 1
Dale-ElectricPF11000T12LG24164.531In StockHammond Manufacturing Co., Inc.164.53 @ 1
thumbzoommotorsandcontrol.comPF11000T12LG24169.711In StockHammond Manufacturing0.5169.71 @ 1
thumbzoomgordonelectricsupply.comPF11000T12LG24170.591In StockHAMMOND MFG170.59 @ 1
AmazonTPB005T66TMS171.111In Stock5Hammond Manufacturing171.11 @ 1
thumbzoomGalcoPF11000T12LG24-HMND174.711In StockHammond Manufacturing3.0174.71 @ 1
kscdirect.comHAM PF11000T12LG24178.181In StockHammond Manufacturing178.18 @ 1
thumbzoomDigi-Key2569541182.3812Hammond Manufacturing1.5182.38 @ 1
thumbzoomNewark51R3289189.68116HAMMOND189.68 @ 1
us.rs-online.com70166479212.0216Hammond Manufacturing0.352212.02 @ 1
thumbzoomcrescentelectric.com224862244.951In StockHammond Mfg.244.95 @ 1
