Attributes
| Key ^ | Value |
|---|---|
| Application | Designed to accept standard pushbuttons, switches and pilot lights. Provides protection from dirt, dust, oil and water. |
| Approvals, Standard | CSA, UL |
| Area (L x W) | 26.5in? (171cm?) |
| Base Product Number | PJ744 |
| Brand | Hammond Mfg. |
| Capacity | 102.77 cu-in |
| Catalog Number, Item Number, Manufacturer Part Number, Manufacturer Product Number, MFG Part #:, Part Number | PJ744P1 |
| Category | Boxes, Enclosures, Racks |
| Color | Light Gray |
| Color, Finish | Gray |
| Composition | Non-Metallic |
| Container Type, Package | Box |
| Country of Origin | United States |
| Cover Design | Lift-Off Cover |
| Cover Type, Locking Feature | Screw |
| Cubic Capacity | 102.774216 Cubic in |
| Depth | 3.88 in |
| Depth (In) | 3.88 |
| Description | BOX FIBERGLASS GRY 6.74"LX3.93"W |

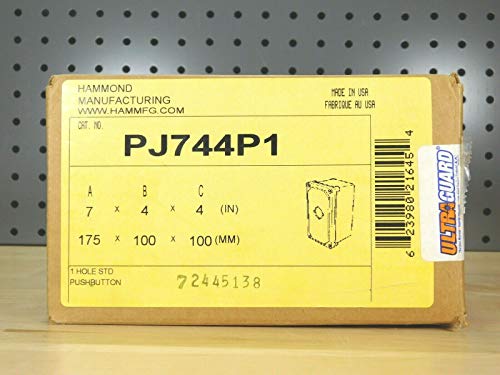

| Description: | N4X Wallmount Encl - 7x4x4 1 Hole Pbutton - Fiberglass |
| Design | Cover Included |
| Detailed Description | Box Fiberglass/Polyester Gray Cover Included 6.740" L x 3.930" W (171.20mm x 99.82mm) X 3.880" (98.55mm) |
| Digi-Key Part Number | PJ744P1-ND |
| Dimensions (H x W x D) | 6.74 x 3.93 x 3.88" |
| Door Design | Lift-Off |
| Enclosure Series, Series | PJPB |
| Estimated Weight | 1.6 |
| Family Series | Hammond Manufacturing Enclosures, PJ Series |
| Features | Pushbutton Holes - 1 |
| Gross Weight, Net Weight | 4 lbs |
| Height | 3.880" (98.55mm) |
| Height (In) | 6.74 |
| Hole Size (mm) | 30.5 |
| Inner Panel | Sold Separately |
| Item Type | Type 4, 4X Polyester Pushbutton Enclosure |
| Latching Mechanism | Screws |
| Length | 6.74 in |
| Made in USA, RoHS | Yes |
| Manufacturer | Hammond Manufacturing Co., Inc. |
| Manufacturer Standard Lead Time | 4 Weeks |
| Manufacturer, Mfr, Supplier: | Hammond Manufacturing |
| Material | Fiberglass, Polyester, Fiberglass/Polyester, Polyester Plastic |
| Material Flammability Rating, Thickness | - |
| Mounting, Mounting Type | Wall |
| NEMA Rating | NEMA 4X/13 |
| NEMA Rating, Nema Rating | 4X, 13 |
| NEMA Type | 4, 4X, 12, and 13 |
| Nominal Depth, Nominal Width | 4 " |
| Nominal Height | 7 " |
| Number of Doors, Number of Holes | 1 |
| Options Included | Gasketed Cover |
| Panel Included, Window/Clear Cover | No |
| Part Status, Product Status | Active |
| Product Series, Series | PJ |
| Ratings | IP66, NEMA 1,2,3,4,4X,12,13, UL-508 |
| Shipping Info | Shipped from Digi-Key |
| Size | 6.74 in x 3.93 in x 3.88 in |
| Size / Dimension | 6.740" L x 3.930" W (171.20mm x 99.82mm) |
| Special Features | Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled. Standard JIC sizes under 18"" x 16"". Threaded brass inserts are provided for optional inner panel. Cover is fastened with captive stainless steel screws in threaded brass inserts. Captive oil resistant gasket provides a positive seal. Mounting through rear holes on enclosure. Use #8 x 1 inch screw (not included). Enhanced UV inhibitors protect against outdoor weathering. Solid cover series available with and without mounting feet. Operating temperatures between 130C and -40C (266F to -40F). Impact index of 6.78J (5 ft/lb). For corrosion resistance information, please refer to table in Technical Information. |
| Standards | UL, CSA, IEC, RoHS |
| Sub Brand | PJPB Series |
| Temperature Rating | -40 to 266 deg F |
| Type | Push Button Enclosures, 1-Hole |
| UPC | 062398021645 |
| UPC, UPC: | 623980216454 |
| Weight | 4 lbs (1.8 kg) |
| Width | 3.93 in |
| Width (In) | 3.93 |
