mpn:
brand:
manufacturer:
MPN:
Description:

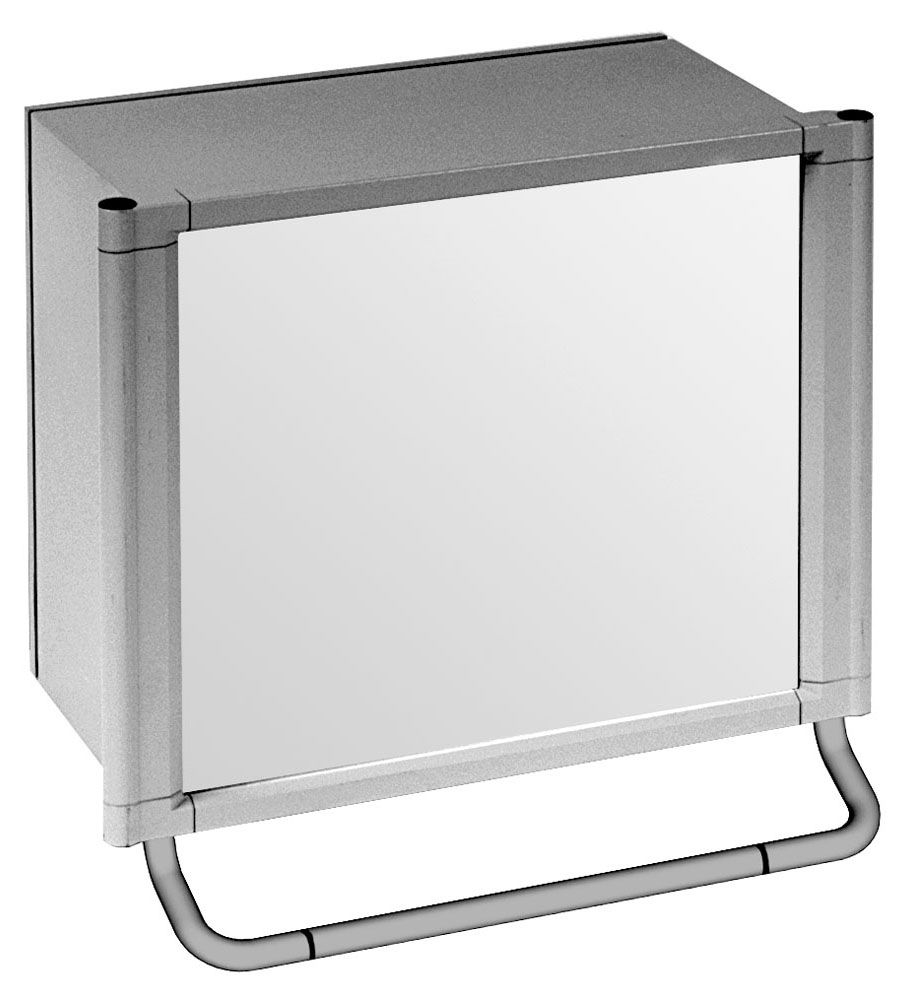

Command Enclosure - 16 x 20 x 10 - Gray
Weight:
40.0
Weight:
40.0 LB
Preferred Price:
1297.95
Price:
1297.95
Min Simple Price:
733.31
Absolute Min Price:
1041.3
Min Price:
1041.3
Dimensions:
[20.0, 16.0, 10.0]
qty:
21
simpleSku:
jgwODA:::ECP162010
sku:
jgwODA::2C:ECP162010@y0
condition:
11
seller:
Onlinecomponents.com
amzMan:
hammond manufacturing
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Application | Designed to enclose electronic controls, instruments and components in indoor environments where dirt, dust, oil and water may be present. Ideal for use with suspension systems. Multiple mounting provisions and full front mounting space provide for ideal operator interface. Smooth flush surfaces and attractive finishes compliment high tech equipment |
| Approvals | CSA, UL |
| Area (L x W) | 320in? (2065cm?) |
| Back Panel Number | ECPP1620 |
| Brand | Hammond Mfg. |
| Catalog Number, Item Number, Manufacturer Part Number, Manufacturer Product Number, Part Number | ECP162010 |
| Category | Boxes, Enclosures, Racks |
| Color | Gray |
| Composition | Metallic |
| Container Type, Package | Box |
| Country of Origin | Canada |
| Cover Design | Lift-Off Cover |
| Cubic Capacity | 3200 Cubic in |
| Depth (In) | 10.00 |
| Description | BOX STEEL GRAY 16"L X 20"W |
| Design | Hinged Door, Lid |
| Detailed Description | Box Metal, Steel Gray Hinged Door, Lid 20.000" L x 16.000" W (508.00mm x 406.40mm) X 10.000" (254.00mm) |
| Digi-Key Part Number | ECP162010-ND |
| Dimensions (H x W x D) | 16 x 20 x 10" |
| Door Design | Hinged (Single Door) |
| Enclosure Series, Product Series | ECP |
| Estimated Weight | 40 |
| Family Name | Eclipse Family |
| Family Series | Hammond Manufacturing Enclosures, ECP Series |
| Features | Stainless Steel Hinges |
| Finish | RAL 7040 Gray |
| Gross Weight, Net Weight | 32 lbs |
| Height | 10.000" (254.00mm) |
| Height (In) | 16.00 |
| IEC Rating, IP Rating | IP54 |
| Inner Panel | Sold Separately |
| Item Type | Eclipse Command System - NEMA 12 |
| Latching Mechanism | Quarter-Turn Latch |
| Locking Feature | Quarter Turn |
| Made in USA | No |
| Manufacturer | Hammond Manufacturing Co., Inc. |
| Manufacturer Standard Lead Time | 4 Weeks |
| Manufacturer, Mfr | Hammond Manufacturing |
| Material | Steel, Metal, Mild Steel, Metal, Steel |
| Material Flammability Rating | - |
| Mounting | Wall |
| Mounting, Type | Suspension System |
| NEMA Rating | NEMA 12 |
| Nema Rating, NEMA Rating | 12, 13 |
| NEMA Type | 12 and 13 |
| Nominal Depth | 10 " |
| Nominal Height | 16 " |
| Nominal Width | 20 " |
| Number of Doors | 1 |
| Product Status | Active |
| Ratings | IP54, NEMA 12,13, UL-508 |
| RoHS | Yes |
| Series | Eclipse |
| Series, Sub Brand | ECP Series |
| Shipping Info | Shipped from Digi-Key |
| Size | 16 in x 20 in x 10 in |
| Size / Dimension | 20.000" L x 16.000" W (508.00mm x 406.40mm) |
| Special Features | Formed from 16 gauge steel. Smooth, continuously welded seams ground smooth. Door stiffeners are designed to also permit additional mounting options. Formed lip on enclosure to exclude flowing liquids and contaminants. Reversible rear door is secured with slotted quarter turn fasteners. Door frames have zinc die-cast corners with extrusion pressed aluminum profiles. Door front panels are 3mm aluminum. Oil resistant gaskets are permanently secured. Bonding stud provided on door and grounding stud installed in enclosure. Quarter turn latches formed from mild steel. Formed steel hinge with stainless steel hinge pins. Fastening is recommended with optional Tara Plus or 50/80 suspension systems. Optional red handle easily mounts horizontally to bottom of enclosure front frame. Order separately. Heavy duty re-inforcing plate included |
| Standard | csa, ul, ce |
| Standards | UL, CSA, IEC, RoHS |
| Thickness | 16 Gauge |
| Type | Junction Box |
| UPC | 062398021639 |
| UPC, UPC Code | 623980216393 |
| Weight | 32 lbs (14.5 kg) |
| Width (In) | 20.00 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Onlinecomponents.com | ECP162010 | 733.31 | 733.31 | 1 | In Stock | HAMMOND MFG | 733.31 @ Qty: 1+ | |||
 | turtle.com | HMC ECP162010 | 875.81 | 875.81 | 1 | In Stock | Hammond Manufacturing | 875.81 @ Qty: 1+ | ||
 | Solutions Direct | ECP162010 | 886.08 | 886.08 | 1 | In Stock | Hammond Manufacturing | 886.08 @ Qty: 1+ | ||
| Hawk Electronics | ECP162010 | 891.0 | 891.0 | 1 | In Stock | Hammond Mfg. | 891.0 @ Qty: 1+ | |||
| AmazonTP | B005T6TM2C | 899.49 | 899.49 | 1 | In Stock | 4 | Hammond Manufacturing | 899.49 @ Qty: 1+ | ||
| AmazonUNK | B005T6TM2C | 899.49 | 899.49 | 1 | In Stock | Hammond Manufacturing | 899.49 @ Qty: 1+ | |||
 | Walker Industrial | ECP162010 | 907.88 | 907.88 | 1 | In Stock | 17 | Hammond Manufacturing | 907.88 @ Qty: 1+ | |
 | Carlton Bates Company | 62398021639 | 939.4 | 939.4 | 1 | In Stock | HAMMOND MANUFACTURING | 939.4 @ Qty: 1+ | ||
| Dale-Electric | ECP162010 | 1005.85 | 1005.85 | 1 | In Stock | Hammond Manufacturing Co., Inc. | 1005.85 @ Qty: 1+ | |||
 | Digi-Key | 2568608 | 1026.99 | 1026.99 | 1 | In Stock | Hammond Manufacturing | 32.0 | 1026.99 @ Qty: 1+ | |
 | motorsandcontrol.com | ECP162010 | 1037.59 | 1037.59 | 1 | In Stock | Hammond Manufacturing | 40.0 | 1037.59 @ Qty: 1+ | |
 | gordonelectricsupply.com | ECP162010 | 1045.0 | 1045.0 | 1 | In Stock | HAMMOND MFG | 1045.0 @ Qty: 1+ | ||
| Airline Hydraulics | ECP162010 | 1047.93 | 1047.93 | 1 | 2 | Hammond Manufacturing | 1047.93 @ Qty: 1+ | |||
| us.rs-online.com | 70320852 | 1048.42 | 1048.42 | 1 | In Stock | Hammond Manufacturing | 1048.42 @ Qty: 1+ | |||
| Newark | 02H4790 | 1051.35 | 1051.35 | 1 | 10 | HAMMOND | 1051.35 @ Qty: 1+ | |||
 | Galco | ECP162010-HMND | 1068.08 | 1068.08 | 1 | In Stock | Hammond Manufacturing | 32.0 | 1068.08 @ Qty: 1+ | |
| Guardian | HAMM-ECP162010 | 1358.7 | 1358.7 | 1 | In Stock | Hammond Mfg | 1358.7 @ Qty: 1+ | |||
 | crescentelectric.com | 1015362 | 1497.53 | 1497.53 | 1 | In Stock | Hammond Mfg. | 1497.53 @ Qty: 1+ |
