mpn:
brand:
manufacturer:
MPN:
Description:

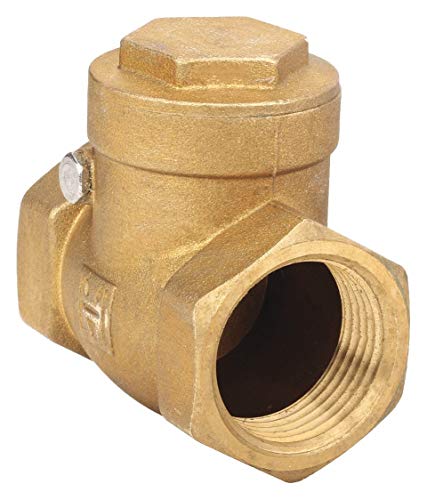

Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Swing, Body Material - Valves Brass, Pipe or Tube Size 1 in, Connection Type FNPT x FNPT, Cracking Pressure 0.750 to 1.000 psi, Mounting Orientation Horizontal, Vertical, Seal Material Brass, Min. Temp. - Valves -20 Degrees F, Max. Water Pressure - Valves 200 psi @ 150 Degrees F, Max. Steam Pressure - Valves Not Rated, Seat Material Brass, Flow - Valves 31 gpm, Full Flow - Valves Yes
Weight:
3.0
Weight:
3.0 LB
Dimensions:
[2.0, 2.0, 2.0]
qty:
1
simpleSku:
jgwODA:::967 1
sku:
jgwODA::RE:967 1@y0
condition:
11
amzMan:
cai - hammond valve
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Application - Valves | General Purpose |
| Body Material, Material of Construction, Seal Material - Check Valves | Brass |
| Connection | FNPT |
| Connection Type | Threaded |
| Cracking Pressure | 0.75 to 1 psi |
| Cracking Pressure - Check Valves | 0.750 to 1.000 psi |
| Flow - Valves | 31.0 gpm |
| Flow Design | Single |
| Full Flow - Valves | Yes |
| Item | Swing Check Valve |
| Item - Check Valves | Check Valve |
| Length | 2 23/32 in |
| Max. Pressure | 200 psi WOG |
| Max. Water Pressure - Valves | 200 psi @ 150 Degrees F |
| Mechanism and Body Design | Inline Swing |
| Min. Temp. - Valves | -20 Degrees F |
| Mounting Orientation - Check Valves | Horizontal, Vertical |
| Mounting Position | Vertical or Horizontal |
| Pipe or Tube Size, Pipe or Tube Size - Check Valves | 1 in |
| Pipe Size, Size | 1" |
