| Air Inlet Gender | Female |
| Air Inlet Gender (Broad - abbreviation) | F |
| Air Inlet Size, Air Outlet Size | 2 in |
| Air Inlet Type, Air Outlet Type | NPT |
| Bracket Kit, Bracket Kit Included, Drain Included | Yes |
| Connection Size - Air Treatment, Inlet Size (Combined) | 2 in NPT |
| Country of Origin (subject to change) | Korea, Republic of |
| Cycling Type | Non-Cycling |
| Dew Point | 38 Degrees F |
| Features | Dew Point Temperature Display Indicator, On/Off Switch |
| Finish | Epoxy Powder Coated |
| For Maximum Compressor Output Power, Max. Air Compressor HP | 2 hp |
| Frequency | 60 Hz |
| Heat Exchanger Material | Stainless Steel |
| Includes | Inlet Y Strainer |
| Input Voltage - Air Treatment | 460V AC |
| ISO Class, ISO Class - Air Treatment | 5 |

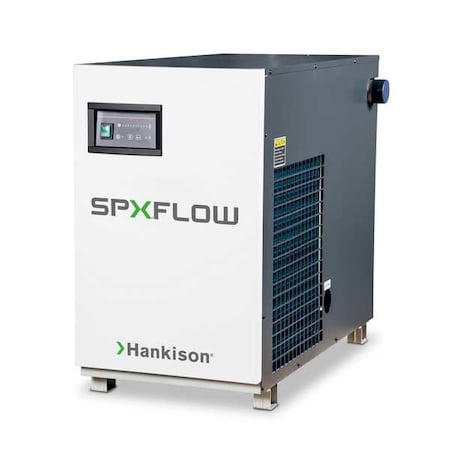

| Item | Refrigerated Air Dryer |
| Item - Refrigerated Air Dryers | Refrigerated Compressed Air Dryer |
| Max. Ambient Temp., Maximum Ambient Temperature | 110 Degrees F |
| Max. Flow - Air Treatment, Maximum Flow Rate | 300 cfm |
| Max. Incoming Pressure - Air Treatment, Maximum Operating Pressure | 232 psi |
| Max. Inlet Temp. - Air Treatment, Maximum Operating Temperature | 120 Degrees F |
| Maximum Flow @ 100 psi | 300 scfm |
| Minimum Operating Pressure | 43 psi |
| Number of Air Inlets, Number of Air Outlets | 1 |
| Overall Depth | 38 in |
| Overall Height | 30 in |
| Overall Width | 20 in |
| Phase (Broad - Abbreviation) | 3 |
| Phase - Air Treatment | Three |
| Power | 2.48 kW |
| Refrigerant | R-407C |
| Series | HPRN |
| Standards | CSA, ISO 8573-1: 2010 |
