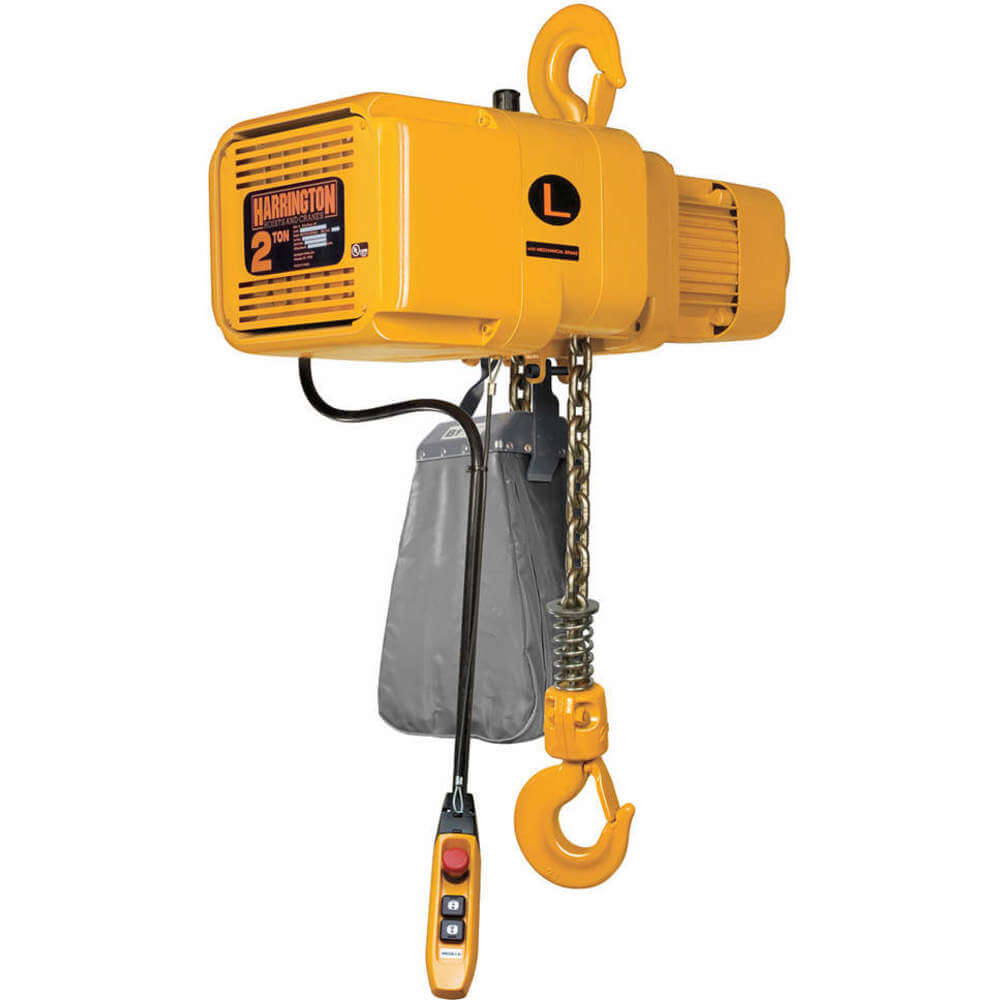

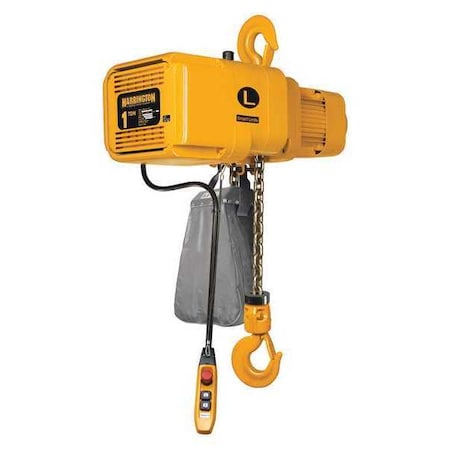

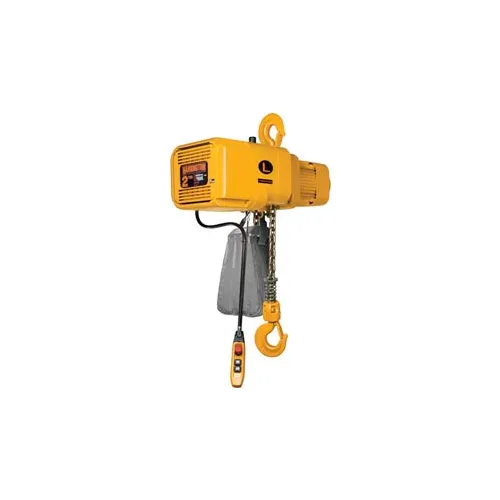

The NER dual speed series of electric chain hoists from Harrington incorporate an under the cover variable frequency drive giving the hoist amazing load control and field adjustable two speeds with up to a 12:1 speed ratio. Features include "The Guardian": Smart Brake Technology, a current driven electromagnetic brake that does not release unless the motor is energized, Grade 80 nickel plated load chain, variable frequency drive allowing speed adjustability and integral count hour functionality which records and displays the number of lowering starts and hoist on time, 5 pocket load sheave to reduce vibration and extend chain life, cooler motor and brake attributed to the fan cooled motor, low profile upper and lower limit switches and plug in pendant and power supply cords. Hoist are UL listed to UL 1340, built environmentally friendly meeting RoHS requirements and exceed ASME H4 Duty Rating. All Hoist are provided with test certificate verifying hoist has been factory load tested to 125% of rated capacity, in accordance to ASME B30.16. <br><br>
Weight:
161.0
Weight:
161.0 LB
Preferred Price:
8370.33
Price:
8370.33
Min Simple Price:
4729.0
Absolute Min Price:
6715.18
Min Price:
6715.18
Dimensions:
[27.0, 21.0, 21.0]
qty:
21
simpleSku:
OTg4MA:::NER020LD-15
sku:
OTg4MA::IC:NER020LD-15@y0
condition:
11
seller:
Zoro
amzMan:
harrington hoists, inc.
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Amps @ Low Volts | 9.1 A |
| Brake | DC Current |
| Classification | H4 |
| Clutch | Friction |
| Color | Yellow |
| Control | 110V Push Button Control Pendant |
| Control Cord | 11 ft |
| Country of Origin (subject to change) | Japan |
| Electric Hoist Item | Chain Hoist |
| Finish | Electrostatic Enamel |
| Fits Brand | Harrington Hoists Inc |
| Hoist Lift | 15 ft |
| Hoist Mount | Hook Mounted - No Trolley |
| Housing Depth | 9 1/2 in |
| Housing Length | 27 15/16 in |
| Housing Width | 11 11/16 in |
| Hz | 60 |
| Includes | Chain Container, Quick Disconnect Plugs On Pendant and Power Cord |
| Item | Electric Chain Hoist |
| Lift Speed | 14/2.5 fpm |
| Load Capacity | 4,000 lb |
| Lubrication | Oil Bath |
| Manufacturers Warranty Length | 10 yr Brake Warranty, 3 yr |
| Min. Between Hooks | 22 5/8 in |
| Motor HP | 2.4 hp |
| Number of Speeds | 2 |
| Phase | 3 |
| Reeving | 1 |
| Standards | ASME B30.16, ASME HST-1M, NFPA 70, RoHS, UL1340 |
| Thermal Protection | yes |
| Trolley Configuration | Hook Mounted |
| Voltage | 230V |
