- mpn09022646825
- brandname: HARTING
- manufacturername: HARTING

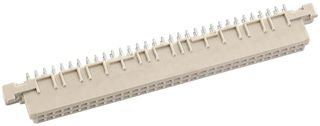

HARTING 09 02 264 6825 DIN 41612 PCB CONNECTOR RECEPTACLE 64WAY (50 pieces)
- PartNumber: 0902 264 6825
- PackageQuantity: 50
- Manufacturer: HARTING
- Label: HARTING
Attributes
| Key | Value |
|---|
| Alternate Part No. | 617-09-02-164-6921 |
| Amperage Rating | 2 A |
| Angle | straight |
| Brand | HARTING |
| Category | Connectors, Interconnec. |
| Coding | Coding With Loss Of Con. |
| Connection Type | Motherboard To Daughter. |
| Connector | plug |
| Connector pinout layout | a+b |
| Connector Style | Female connector |
| Connector Type | Mezzanine,Motherboard t. |
| Connector variant | type B |
| Contact Finish | - |
| Contact Finish Thickness | - |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Over Nickel, Nickel |
| Contact plating | selectively gold plated |
| Contact Resistance | 20 mOhms |
| Contacts, # of | 64 |
| Current Rating | 2 A |
| Current Rating (Amps) | - |
| Description | CONN DIN RCPT 64POS PNL. |
| Detailed Description | 64 Position Din Connect. |
| Digi-Key Part Number | 1195-1102-ND |
| Electrical mounting | THT |
| Enclosure material | thermoplastic |
| Engineering PN | DIN-Signal B064FS-4,5C1. |
| Export Class | EAR / EAR99 |
| Features | Lead-Free, - |
| Flammability rating | UL94V-0 |
| Housing Material | thermoplastic |
| Insulation Resistance | 1000000000000 Ohms |
| Kind of connector | female |
| Leads dimensions | L 4.5mm |
| Level, Class | 2 |
| Manufacturer | HARTING |
| Manufacturer Part No. | 09021646921 |
| Manufacturer Product Nu. | 09022646825 |
| Manufacturer Standard L. | 13 Weeks |
| Material - Insulation | Thermoplastic, Glass Fi. |
| Material Flammability R. | UL94 V-0 |
| Maximum current | 2A |
| Mechanical durability | 400 cycles |
| Mfr | HARTING |
| Mounting Angle | Right |
| Mounting Hole Size | 2.8 mm |
| Mounting Type | Panel Mount, Through Ho. |
| Number of Contacts | 64 |
| Number of pins | 64 |
| Number of Positions | 64 |
| Number of Positions Loa. | All |
| Number of Rows | 2 |
| Operating Temperature | - |
| Operating temperature | -55...125?C |
| Overall Length | 94.9 mm |
| Package | Bulk |
| Part # Aliases | 02 09 09-02-164-6921 16. |
| Pin Length | 4.5 mm |
| Pin Spacing | 2.54 mm |
| Pitch | 2.54 mm, 0.100" (2.54mm) |
| Primary Type | DIN 41612 ; Eurocard |
| Product Category | DIN 41612 Connectors |
| Product Header | Type B Female Backplane. |
| Product Status | Active |
| RoHS | Yes |
| Rows Loaded | a + b |
| Series | DIN-Signal B, DIN-Signa. |
| Spatial orientation | straight |
| Special Features | Backplane |
| Specification | DIN 41612 |
| Standards | IEC 60603-2 |
| Style | B |
| Tail Length | 3 mm |
| Termination | Wave Soldering, Solder |
| Termination Method | Wave soldering terminat. |
| Termination Style | Solder Pin |
| Tradename | DIN-Signal |
| Type | B, Socket |
| Type of connector | DIN 41612 |
| Weight | 10.990 g |
| Weight (g) | Unknown |
| Weight (lbs) | Unknown |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Beyond Components | 09-02-164-6921 | 2.38 | 1 | 100 | | HARTING Elektronik | | 2.38 @ 100 |
| Arrow | 09021646921 | 3.186 | 1 | 208 | | HARTING Elektronik | | 3.186 @ 100 |
 | TME | 09022646825 | 3.29 | 1 | 117 | | HARTING | | 3.29 @ 100 |
 | Newark | 96F2672 | 3.58 | 130 | 100 | | HARTING | | 3.58 @ 100 |
| PEI-Genesis | 09022646825 | 3.74 | 1 | 100 | | Harting | | 3.74 @ 100 |
| Chip One Stop Global | C1S309400004659 | 4.21 | 1 | 100 | | HARTING Elektronik | | 4.21 @ 100 |
| Hotenda | H704122 | 4.54 | 1 | 100 | | HARTING | | 4.54 @ 100 |
| Future Electronics | 6493365 | 4.716 | 1 | 520 | | HARTING | | 4.716 @ 100 |
 | Digi-Key | 3179684 | 4.8743 | 1 | 4242 | | HARTING | | 4.8743 @ 100 |
| us.rs-online.com | 70070231 | 5.89 | 130 | 100 | | HARTING | 0.024178 | 5.89 @ 130 |
| RS Delivers | 406-228 | 6.288 | 1 | 100 | | HARTING | | 6.288 @ 100 |
 | swatee.com | 09021646921 | 6.29 | 1 | 170 | | HARTING | | 6.29 @ 100 |
 | Radwell | 09022646825 | 8.03 | 1 | 100 | | HARTING | 0.05 | 8.03 @ 100 |
