mpn:
brand:
manufacturer:
MPN:
Description:

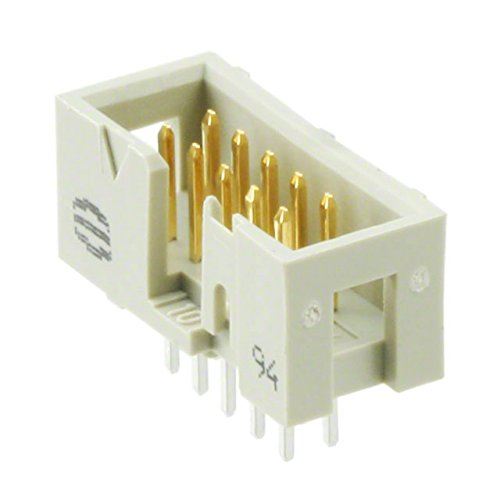

Headers, SEK-18 SV ML LP STR45 10P PL3
Preferred Price:
3.92
Price:
3.92
Min Simple Price:
1.42
Absolute Min Price:
3.15
Min Price:
3.15
Dimensions:
[1.0, 1.0, 1.0]
qty:
47
simpleSku:
NjQxMw:::09185107322
sku:
NjQxMw::7A:09185107322@y0
condition:
11
seller:
TME
amzMan:
harting
HazMat:
False
DropShip:
False
Attributes
| Key | Value |
|---|---|
| Alternate Part No. | 617-09185107322 |
| Applications | - |
| Brand | HARTING |
| Category | Connectors, Interconnects |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish Thickness - Post | - |
| Contact Gender | Pin (Male) |
| Contact Length - Mating | 0.240" (6.10mm) |
| Contact Length - Post | 0.177" (4.50mm) |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 2 A |
| Current Rating (Amps) | - |
| Description | CONN HEADER VERT 10POS 2.54MM |
| Detailed Description | Connector Header Through Hole 10 position 0.100" (2.54mm) |
| Digi-Key Part Number | 1195-1678-ND |
| Fastening Type | Latch Holder |
| Features | Keying Slot |
| Flammability Rating | UL 94 V-0 |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Ingress Protection | - |
| Insulation Color | Gray |
| Insulation Height | 0.350" (8.89mm) |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Manufacturer | HARTING |
| Manufacturer Part No. | 09185107322 |
| Manufacturer Product Number | 09185107322 |
| Manufacturer Standard Lead Time | 8 Weeks |
| Mated Stacking Heights | - |
| Material Flammability Rating | UL94 V-0 |
| Mfr | HARTING |
| Minimum Order | 100 |
| Mounting Angle | Straight |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature | -55?C ~ 125?C |
| Operating Temperature Range | - 55 C to + 125 C |
| Order Multiple | 100 |
| Overall Contact Length | - |
| Package | Tray |
| Part # Aliases | 09 09-18-510-7322 18 510 7322 |
| Pitch | 2.54 mm |
| Pitch - Mating | 0.100" (2.54mm) |
| Product Category | Headers & Wire Housings |
| Product Status | Active |
| Product Type | Headers |
| Row Spacing | 2.54 mm |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Series | SEK |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Termination Style | Through Hole |
| Type | Shrouded |
| Voltage Rating | - |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| TME | 09185107322 | 1.42 | 57.652 | 100 | 70 | HARTING | 1.42 @ Qty: 100+ | |||
| Future Electronics | 6002104 | 2.172 | 88.1832 | 100 | 70 | HARTING | 2.172 @ Qty: 100+ | |||
 | swatee.com | 09185107322 | 2.42 | 98.252 | 100 | 47 | HARTING | 2.42 @ Qty: 100+ | ||
 | Digi-Key | 3180261 | 2.48 | 2.48 | 1 | 35 | HARTING | 2.48 @ Qty: 1+ | ||
 | Newark | 92Y4072 | 2.7 | 2.7 | 1 | 37 | HARTING | 2.7 @ Qty: 1+ |
