HARTING 09185347324

B008QY8UO0

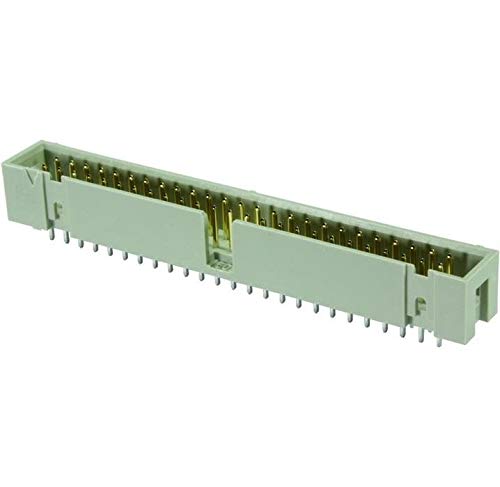

Harting Wire-to-Board Connector, Straight, Sek 18 Series, Through Hole, Header, 34, 2.54 Mm Rohs Compliant: Yes - 09 18 534 7324

Harting Wire-to-Board Connector, Straight, Sek 18 Series, Through Hole, Header, 34, 2.54 Mm Rohs Compliant: Yes - 09 18 534 7324zoom

Attributes

Key Value
Applications-
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - Mating-
Contact Finish - PostTin
Contact Finish Thicknes.-
Contact Finish Thicknes.-
Contact Length - Mating0.240" (6.10mm)
Contact Length - Post0.114" (2.90mm)
Contact MaterialCopper Alloy
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)-
DescriptionCONN HEADER VERT 34POS .
Detailed DescriptionConnector Header Throug.
Digi-Key Part Number1195-1736-ND
Fastening TypeLatch Holder
FeaturesKeying Slot
Ingress Protection-
Insulation ColorGray
Insulation Height0.350" (8.89mm)
Insulation MaterialPolybutylene Terephthal.
ManufacturerHARTING
Manufacturer Product Nu.09185347324
Manufacturer Standard L.8 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrHARTING
Mounting TypeThrough Hole
Number of Positions34
Number of Positions Loa.All
Number of Rows2
Operating Temperature-55?C ~ 125?C
Overall Contact Length-
PackageBulk
Pitch - Mating0.100" (2.54mm)
Product StatusActive
Row Spacing - Mating0.100" (2.54mm)
SeriesSEK
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Future ElectronicsC0106459031.96810060HARTING1.968 @ 100
TME091853473242.3410042HARTING2.34 @ 100
Arrow091853473243.4721149HARTING Elektronik3.472 @ 1
Mouser617-09-18-534-73243.481311HARTING Elektronik3.48 @ 1
thumbzoomDigi-Key31803193.76174HARTING3.76 @ 1
RS Delivers740-7146P4.6921504HARTING4.692 @ 1
