HARTING ELECTRONICS 09360083001

B076FB2WFG

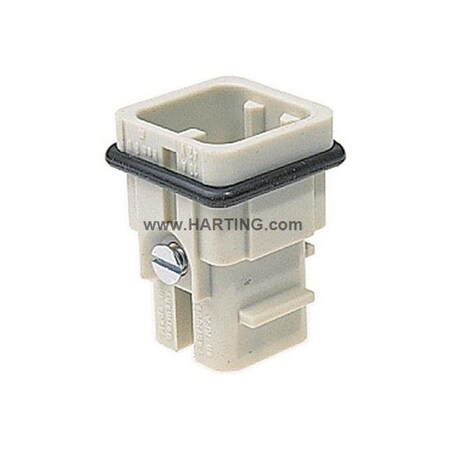

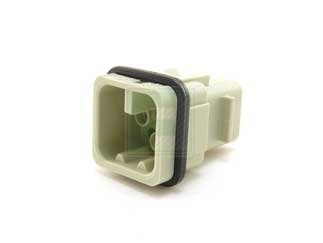

HARTING ELECTRONICS 09360083001 HAN D Series 8 Position 10 AMP Male Insert - 10 item(s)

HARTING ELECTRONICS 09360083001 HAN D Series 8 Position 10 AMP Male Insert - 10 item(s)zoom

Attributes

Key Value
AngleStraight
ApplicationIndustrial Connectors
Base Product Number09360083
CategoryConnectors, Interconnec.
ColorGray, Pebble Gray
Connection TypeCrimp
Connector GenderMale
Connector TypeInsert without Contacts
Contact Finish-
Contact Material-
Contact TypeHan? D
Current Rating10 A
Current Rating (Amps)10A
DescriptionINSERT MALE 8POS CRIMP
Detailed DescriptionMale Insert without Con.
Digi-Key Part Number1195-2103-ND
Export ClassEAR / EAR99
GenderMale
Housing MaterialPolyamide, Polyamide (P.
Includes PolesNo
Insert ColorGray
Insert MaterialPolyamide
ItemIndustrial Rectangular .
ManufacturerHARTING
Manufacturer Product Nu.09360083001
Manufacturer Standard L.15 Weeks
MaterialPolyamide
Material Flammability R.UL94 HB
Max. Single Wire Size2.5 mm2
Max. Voltage50V AC; 120V DC
Maximum Operating Tempe.125 Degrees C
MfrHARTING
Min. Single Wire Size0.14 mm2
Minimum Insulation Resi.1.00 x 10^10 ohm
Minimum Mating Cycles500
Minimum Operating Tempe.-40 Degrees C
Number of Poles8
Number of Positions8
Operating Temperature-40 to 125 C, -40?C ~ 1.
PackageBulk
Product StatusActive
RoHSYes
SeriesHan D Series, Han? 8D, .
Size3A
StandardsDNV GL; EN 60664-1; IEC.
Temperature Range-40 Degrees C to 125 .
Terminal TypeCrimp
TerminationCrimp
Termination StyleCrimp
TypePlug Insert
Voltage Rating120V DC, 50V, 50V AC, 5.
Weight (g)7.89000
Weight (lbs)0.01739
Wire Size0.14 to 2.5 sq mm, 14-2.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTME093600830016.791In StockHARTING6.79 @ 1
PEI-Genesis093600830017.071178Harting0.017397.07 @ 1
thumbzoomCarlton Bates Company789506915707.6315HARTING OF NORTH AMERICA INC7.63 @ 1
thumbzoomZoroG6052932247.991In StockHarting6.07.99 @ 1
Future Electronics14975938.7961020HARTING8.796 @ 10
us.rs-online.com701041639.51159HARTING9.5 @ 1
thumbzoomNewark79K04459.61300HARTING9.6 @ 1
thumbzoomDigi-Key31806869.991In StockHARTING9.99 @ 1
RS Delivers363-860814.7481In StockHARTING14.748 @ 1
