mpn:
brand:
manufacturer:
MPN:
Description:

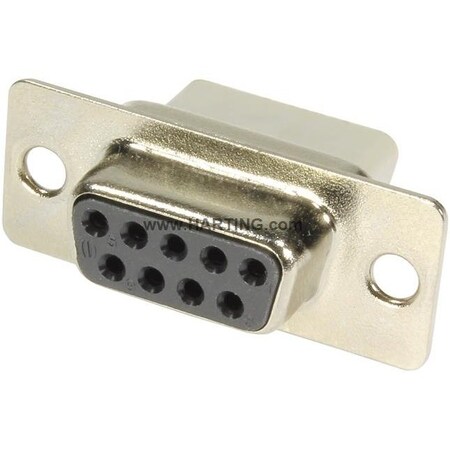

D-Sub Standard Series Straight Crimp D-sub Connector Socket 9 Way
Weight:
0.0825
Weight:
0.0825 LB
Preferred Price:
11.05
Price:
11.05
Min Simple Price:
0.88
Absolute Min Price:
8.36
Min Price:
8.36
Dimensions:
[23.0, 16.0, 11.0]
qty:
1
simpleSku:
NjQxMw:::09670094701
sku:
NjQxMw::CP:09670094701@x6
condition:
11
seller:
TME
amzMan:
harting
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Alternate Part No. | 617-09-67-009-4701 |
| Angle, Mounting Angle | Straight |
| Application | Standard |
| Brand, Manufacturer | HARTING |
| Cable Clamping Method, Connection Type, Termination | Crimp |
| Connector Gender, Gender, Type | Female |
| Contact Material | Copper Alloy |
| D-Sub Shell Size | D-Sub 1 |
| Dielectric Material | PBTP |
| Housing Finish, Shell Plating | Tin |
| Housing Material | Plated Steel |
| Housing Material, Shell Material | Metal |
| Insert Color | Black |
| Insert Material | Thermoplastic Resin Glass-Fibre Filled (PBTP) |
| Insulation Material | Polybutylene Terephthalate |
| Item | Fixing Flange D-Sub Connector |
| Locking Type | Fixing Flange |
| Manufacturer Part No. | 09670094701 |
| Maximum Operating Temperature | 125 Degrees C |
| Minimum Insulation Resistance | 1.00 x 10^10 ohm |
| Minimum Operating Temperature | -55 Degrees C |
| Number of Contacts, Number of Poles, Number of Positions, Series | 9 |
| Number of Rows | 2 |
| Operating Temperature Range | -55 Degrees C to 125 Degrees C |
| Package Quantity | 1 |
| Part # Aliases | 009 09 09-67-009-4701 4701 67 |
| Primary Type, Series | D-Sub |
| Product Category | D-Sub Standard Connectors |
| Series | D-Sub Series |
| Service Connector Type | Standard Density D-Sub Connector |
| Standards | IEC 60807-3, UL 1977 ECBT2.E102079, MIL-C-24308 ; DIN 41652 ; CECC 75301-802 |
| Termination Style | Through Hole |
| Type | Cable Socket |
| Wire Size | 28 to 18 AWG |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Carlton Bates Company | 78950691812 | 1.03 | 1.03 | 1 | 97 | HARTING OF NORTH AMERICA INC | 1.03 @ Qty: 1+ | ||
 | TME | 09670094701 | 1.16 | 1.16 | 1 | 58 | HARTING | 1.16 @ Qty: 1+ | ||
| Hotenda | H1191420 | 1.62 | 1.62 | 1 | 166 | HARTING | 1.62 @ Qty: 1+ | |||
| us.rs-online.com | 70070144 | 1.96 | 1.96 | 1 | 51 | HARTING | 1.96 @ Qty: 1+ | |||
 | Newark | 96F2634 | 2.09 | 2.09 | 1 | 79 | HARTING | 2.09 @ Qty: 1+ | ||
| RS Delivers | 843-6062 | 2.196 | 2.196 | 1 | 2186 | HARTING | 2.196 @ Qty: 1+ | |||
 | swatee.com | 09670094701 | 2.43 | 2.43 | 1 | 664 | HARTING | 2.43 @ Qty: 1+ | ||
 | Zoro | G405285924 | 9.9 | 29.7 | 6 | In Stock | Harting | 1.32 | 9.9 @ Qty: 6+ |
