mpn:
brand:
manufacturer:
MPN:
Description:

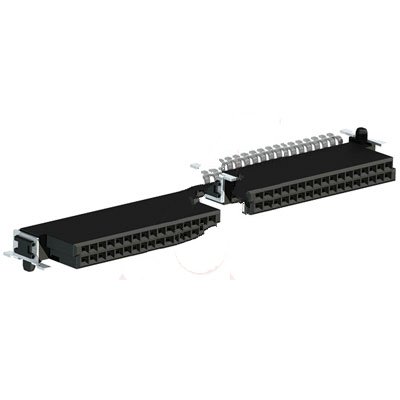

Connector, Wt 1904 g, 32 Contacts, Har-flex Series
Weight:
4.151378
Weight:
1.1 LB
Preferred Price:
11.76
Price:
11.76
Min Simple Price:
2.92643
Absolute Min Price:
10.18
Min Price:
10.18
Dimensions:
[1.0, 1.0, 1.0]
qty:
25
simpleSku:
Njk3MQ:::15250322601000
sku:
Njk3MQ::PU:15250322601000@y0
condition:
11
seller:
Hotenda
amzMan:
harting
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Applications | General Purpose |
| Body Orientation | Right Angle |
| Brand, Manufacturer, Mfr | Harting |
| Category | Connectors, Interconnects |
| Connection Type | Motherboard To Daughtercard ; Extender Card |
| Connector | socket |
| Connector series, Series | har-flex? |
| Connector Type | Receptacle |
| Contact Finish - Mating, Contact Finish Thickness - Mating, Contact Finish Thickness - Post, Contact Length - Post, Current Rating (Amps), Ingress Protection, Mated Stacking Heights, Voltage Rating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Contact Resistance | 25 mOhms |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Contacts pitch, Pitch | 1.27mm |
| Current Rating | 2 A, 1.7A |
| Description | CONN RCPT 32POS 0.05 SMD R/A |
| Detailed Description | 32 Position Receptacle Connector 0.050" (1.27mm) Surface Mount, Right Angle |
| Digi-Key Part Number | 1195-3418-2-ND - Tape & Reel (TR) |
| Electrical mounting | SMT |
| Engineering PN | har-flex ang f 32p PL1 560pcs |
| Fastening Type | Push-Pull |
| Features | Board Guide, Solder Retention |
| Insulation Color | Black |
| Insulation Height | 0.120" (3.05mm) |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Resistance | 1000000000 Ohms |
| Kind of connector, Type | female |
| Manufacturer Product Number | 15250322601000 |
| Manufacturer Standard Lead Time | 10 Weeks |
| Material Flammability Rating | UL94 V-0 |
| Maximum current | 2.3A |
| Mechanical durability | 500 cycles |
| Mounting Type | Surface Mount, Right Angle, Surface Mount |
| Number Of Contacts, Number of Contacts, Number of pins, Number of Positions | 32 |
| Number of pieces on reel | 560pcs. |
| Number of Positions Loaded | All |
| Number of Rows, Number Of Rows | 2 |
| Operating Temperature | -55?C ~ 125?C |
| Operating temperature | -55...125?C |
| Orientation | Angled |
| Package | Tape & Reel (TR) |
| Pitch | 1.27 mm |
| Pitch - Mating, Row Spacing - Mating | 0.050" (1.27mm) |
| Primary Type | Mezzanine/Stacking |
| Product Status | Active |
| Rated voltage | 150V AC |
| Series | har-flex Series, Har-Flex |
| Series Number | 1525 |
| Spatial orientation | horizontal |
| Style | Board to Board or Cable |
| Termination | Reflow Soldering (SMT) |
| Termination, Termination Method | Solder |
| Type | Wire to Board |
| Type of connector | PCB to PCB |
| Weight | 1904.000 g |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Hotenda | H1418896 | 2.92643 | 657.276178 | 560 | 34 | HARTING | 2.92643 @ Qty: 560+ | |||
| Newark | 33AH6064 | 3.87 | 869.202 | 560 | 25 | HARTING | 3.87 @ Qty: 500+ | |||
 | RS Delivers | 843-9059 | 5.676 | 5.676 | 1 | 25 | HARTING | 5.676 @ Qty: 1+ | ||
 | Digi-Key | 3854947 | 6.528 | 6.528 | 1 | 2625 | HARTING | 6.528 @ Qty: 1+ | ||
 | TME | 15250322601000 | 2130.86 | 2130.86 | 1 | 25 | HARTING | 2130.86 @ Qty: 1+ | ||
| us.rs-online.com | 70280993 | 2585.49 | 580701.054 | 560 | 25 | HARTING | 4.1888 | 2585.49 @ Qty: 560+ |
