Description:

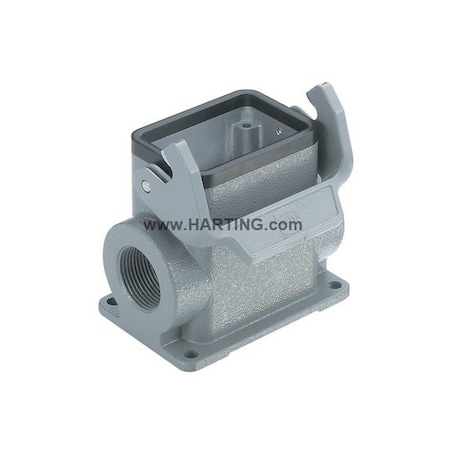

Surface Mounted , 6B, Side Entry, Single Lever, IP65, 2x M25, Han B Series
Weight:
0.6732
Weight:
0.66 LB
Preferred Price:
51.97
Price:
51.97
Min Simple Price:
28.4
Absolute Min Price:
40.32
Min Price:
40.32
Dimensions:
[23.0, 16.0, 11.0]
qty:
126
simpleSku:
Njk3MQ:::19300060291
sku:
Njk3MQ::QU:19300060291@y0
condition:
11
seller:
Digi-Key
amzMan:
harting
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Application | Industrial Connectors |
| Base Type, Connector Type | Side Entry |
| Cable Entry Thread Size, Gland thread, Lock Location | M25 |
| Case | size 6B |
| Category | Connectors, Interconnects |
| Color, Housing Color, Size / Dimension | Gray |
| Connector series | Han? B |
| Connector variant | high |
| Dimensions (L x W x H) | 82 mm x 72.5 mm x 73.5 mm |
| Enclosure material | aluminium alloy |
| Engineering PN | Han 6B-asg2-LB-M25 |
| Entry Location | Side |
| Entry Type | Dual-Entry |
| Family Name | Han A/B Family |
| Features | IP65 - Dust Tight, Water Resistant |
| Height | 73.5 mm |
| Housing Color | Feed Through, Dust grey |
| Housing Finish | -40?C ~ 125?C |
| Housing Material | Aluminium die-cast, Powder Coated |
| Housing/Hood Material | Aluminum Die-Cast |
| Housing/Hood Size Designation, Size Designation | 6 B |
| Ingress Protection | Aluminum, Die Cast |
| Insert mounting | 44x27mm |
| IP rating, IP Rating | IP65 |
| Item | M25 Rectangular Connector Housing |
| Length | 82 mm |
| Levers and Bolts Material | Polycarbonate; Stainless Steel |
| Lock Type | Single Lever |
| Locking system | with latch |
| Manufacturer, Mfr | HARTING |
| Material | Aluminium |
| Maximum Operating Temperature | 125 Degrees C |
| Mechanical mounting | flange (4 holes), |
| Minimum Operating Temperature | -40 Degrees C |
| Number of Entries, Number of gland holes | 2 |
| Operating temperature | -40...125?C |
| Operating Temperature Range | -40 to 125 Degrees C |
| Package | Active |
| Part Status | Base - Box Mount |
| Primary Material | Aluminum |
| Product Type | Housing |
| Seal Material | NBR |
| Series | Bulk, Han B Series, Han |
| Size | Locking Clip (1) on Base Bottom |
| Size, Style | 6B |
| Thread Size | 3.228" L x 2.244" W x 2.906" H (82.00mm x 57.00mm x 73.80mm) |
| Type of enclosure | for HDC connectors |
| Width | 72.5 mm |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Digi-Key | 1195-3085-ND | 28.4 | 28.4 | 1 | In Stock | HARTING | 28.4 @ Qty: 1+ | ||
| kirbyrisk.com | 2538324 | 30.58 | 30.58 | 1 | In Stock | Harting | 30.58 @ Qty: 1+ | |||
 | TME | 19300060291 | 34.21 | 34.21 | 1 | 5 | HARTING | 34.21 @ Qty: 1+ | ||
| Mouser | 617-19300060291 | 40.23 | 40.23 | 1 | 20 | HARTING Elektronik | 40.23 @ Qty: 1+ | |||
 | Zoro | G805286149 | 41.39 | 41.39 | 1 | In Stock | Harting | 6.57 | 41.39 @ Qty: 1+ | |
| us.rs-online.com | 70104469 | 45.12 | 45.12 | 1 | 117 | HARTING | 45.12 @ Qty: 1+ | |||
 | Newark | 29H1688 | 47.56 | 47.56 | 1 | In Stock | HARTING | 47.56 @ Qty: 1+ | ||
| RS Delivers | 844-3168 | 50.472 | 50.472 | 1 | 126 | HARTING | 50.472 @ Qty: 1+ |
