mpn:
brand:
manufacturer:
MPN:
Weight:
1.67
Weight:
0.2662 LB
Preferred Price:
28.52
Price:
28.52
Min Simple Price:
15.51
Absolute Min Price:
22.16
Min Price:
22.16
Dimensions:
[23.0, 16.0, 11.0]
qty:
114
simpleSku:
Njk3MQ:::19300101421
sku:
Njk3MQ::UK:19300101421@y0
condition:
11
seller:
TME
amzMan:
harting
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Application | Industrial Connectors |
| Base Product Number | 19300101 |
| Cable Entry Thread Size, Gland thread, Thread Size | M25 |
| Cable Entry, Style | Top Entry |
| Case | size 10B |
| Category | Connectors, Interconnects |
| Color, Housing Color | Gray |
| Connector series, Series | Han? B |

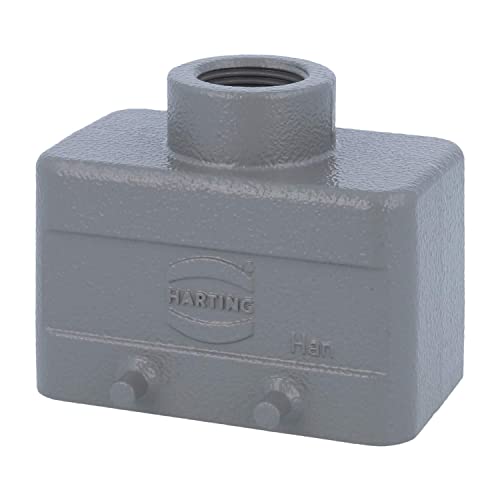

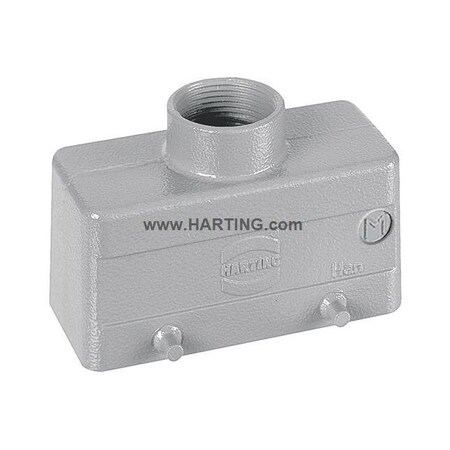

| Connector Type, Product Type | Hood |
| Country of Origin (subject to change) | Unknown |
| Description | CONN HOOD TOP ENTRY SZ10B M25 |
| Detailed Description | Hood Connector Top Entry M25 10B IP65 - Dust Tight, Water Resistant |
| Digi-Key Part Number | 1195-3108-ND |
| Dimensions (L x W x H) | 72.6 mm x 57.2 mm x 48.5 mm |
| Enclosure material | aluminium alloy |
| Engineering PN | Han 10B-HTE-LC-4 Pegs-M25 |
| Entry Location | Top |
| Entry Type | Single-Entry |
| Family Name | Han A/B Family |
| Features | - |
| Height | 48.5 mm |
| Housing Finish | Powder Coated |
| Housing Material | Aluminum, Die Cast |
| Housing Material, Primary Material | Aluminum |
| Housing/Hood Material | Aluminum Die-Cast |
| Housing/Hood Size Designation, Size Designation | 10 B |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Insert mounting | 57x27mm |
| IP rating | IP65 |
| Item | M25 Rectangular Connector Hood |
| Length | 72.6 mm |
| Lever | Double |
| Lock Location | Locking Clip (2) on Base Bottom |
| Locking system | for double latch |
| Locking Type | Dual Lever |
| Manufacturer Product Number | 19300101421 |
| Manufacturer Standard Lead Time | 9 Weeks |
| Manufacturer, Mfr | HARTING |
| Material | Aluminium |
| Maximum Operating Temperature | 125 Degrees C |
| Mechanical mounting | for cable |
| Minimum Operating Temperature | -40 Degrees C |
| Number of Entries, Number of gland holes | 1 |
| Operating Temperature | -40?C ~ 125?C |
| Operating temperature | -40...125?C |
| Operating Temperature Range | -40 to 125 Degrees C |
| Package | Bulk |
| Product Status | Active |
| Seal Material | NBR |
| Series | Han B Series, Han |
| Size | 10B |
| Size / Dimension | 2.858" L x 1.693" W x 2.303" H (72.60mm x 43.00mm x 58.50mm) |
| Spatial orientation | straight |
| Type of enclosure | for HDC connectors |
| Width | 57.2 mm |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | TME | 19300101421 | 15.51 | 15.51 | 1 | In Stock | HARTING | 15.51 @ Qty: 1+ | ||
 | Zoro | G005286062 | 18.05 | 18.05 | 1 | In Stock | Harting | 2.73 | 18.05 @ Qty: 1+ | |
 | Newark | 51AC2756 | 18.67 | 18.67 | 1 | In Stock | HARTING | 18.67 @ Qty: 1+ | ||
 | Digi-Key | 3181693 | 20.25 | 20.25 | 1 | 7 | HARTING | 20.25 @ Qty: 1+ | ||
| us.rs-online.com | 70104060 | 20.45 | 20.45 | 1 | 93 | HARTING | 20.45 @ Qty: 1+ | |||
| RS Delivers | 844-2929 | 22.524 | 22.524 | 1 | 114 | HARTING | 22.524 @ Qty: 1+ |
