Attributes
| Key ^ | Value |
|---|---|
| Accessory Type, Type | Base |
| Base Product Number | 19410100 |
| Case | size 10B |
| Category | Connectors, Interconnects |
| Color, Housing Color | Black |
| Connector series | Han-Eco? Modular |
| Connector Type | Base - Panel Mount |
| Country of Origin (subject to change) | Unknown |

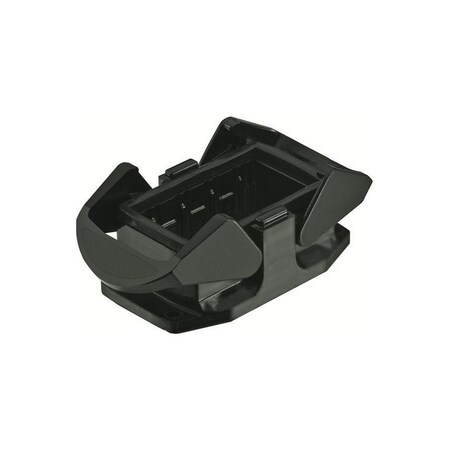

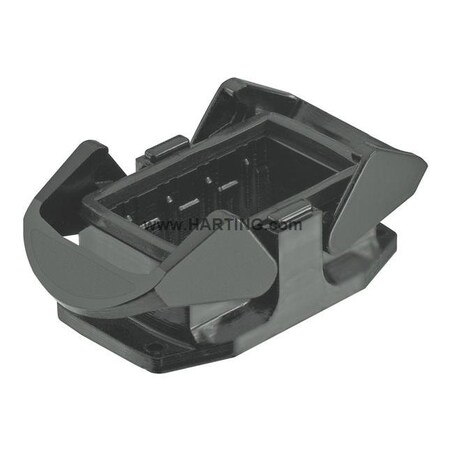

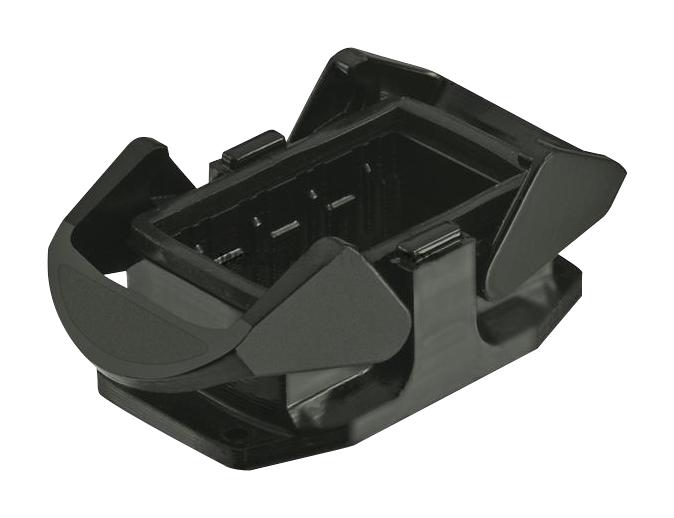

| Description | CONN BASE BOTTOM ENTRY SZ10B |
| Detailed Description | Base - Panel Mount Connector Bottom Entry 10B IP65 - Dust Tight, Water Resistant |
| Digi-Key Part Number | 1195-3176-ND |
| Dimensions (L x W x H) | 93 mm x 58.3 mm x 34.2 mm |
| Enclosure material | polyamide |
| Engineering PN | Han-Eco Mod.10-HBM |
| Entry Location | Top |
| Entry Type | Single-Entry |
| Family Name | Han-Modular Family |
| Features, Housing Finish, Thread Size | - |
| Height | 34.2 mm |
| Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Housing/Hood Material | Polyamide Fiber-Glass Reinforced |
| Housing/Hood Size Designation, Size Designation | 10 B |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Insert mounting | 57x27mm |
| IP rating | IP65 |
| Item | Rectangular Connector Housing |
| Length | 93 mm |
| Levers and Bolts Material | Fiber-Glass Reinforced Polyamide |
| Lock Location | Locking Clip (2) on Base Bottom |
| Locking system | with double latch |
| Locking Type | Dual Lever |
| Manufacturer Product Number | 19410100301 |
| Manufacturer Standard Lead Time | 8 Weeks |
| Manufacturer, Mfr | HARTING |
| Material | Glass-Filled Polyamide |
| Max. Temp. | 125?C |
| Maximum Operating Temperature | 125 Degrees C |
| Mechanical mounting | flange (4 holes), |
| Minimum Operating Temperature | -40 Degrees C |
| Number of Entries | 1 |
| Operating Temperature | -40?C ~ 125?C |
| Operating temperature | -40...125?C |
| Operating Temperature Range | -40 to 125 Degrees C |
| Package | Bulk |
| Primary Material | Polyamide Glass Fiber Reinforced |
| Primary Type | Industrial Rectangular |
| Product Status | Active |
| Product Type | Housing |
| Seal Material | NBR |
| Series | Han-Eco Series, Han-Eco?, Han-Eco |
| Size | 10B |
| Size / Dimension | 3.661" L x 2.244" W x 1.346" H (93.00mm x 57.00mm x 34.20mm) |
| Style | Bottom Entry |
| Type of enclosure | for HDC connectors |
| Width | 58.3 mm |
| Width in modules | 4 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Arrow | 19410100301 | 10.454 | 10.454 | 1 | 97 | HARTING Elektronik | 10.454 @ Qty: 1+ | |||
 | Zoro | G605286097 | 15.19 | 15.19 | 1 | In Stock | Harting | 1.96 | 15.19 @ Qty: 1+ | |
 | TME | 19410100301 | 16.89 | 16.89 | 1 | In Stock | HARTING | 16.89 @ Qty: 1+ | ||
| us.rs-online.com | 70235403 | 17.29 | 17.29 | 1 | 22 | HARTING | 17.29 @ Qty: 1+ | |||
 | Digi-Key | 3181761 | 17.29 | 17.29 | 1 | In Stock | HARTING | 17.29 @ Qty: 1+ | ||
 | Newark | 30AC7064 | 17.93 | 17.93 | 1 | In Stock | HARTING | 17.93 @ Qty: 1+ | ||
| Mouser | 617-19410100301 | 18.41 | 18.41 | 1 | 28 | HARTING Elektronik | 18.41 @ Qty: 1+ | |||
| RS Delivers | 742-2725 | 24.84 | 24.84 | 1 | 286 | HARTING | 24.84 @ Qty: 1+ |
