mpn:
brand:
manufacturer:
MPN:
Preferred Price:
96.25
Price:
96.25
Min Simple Price:
52.6
Absolute Min Price:
74.69
Min Price:
74.69
Dimensions:
[1.0, 1.0, 1.0]
qty:
21
simpleSku:
OTI0MQ:::79K4437
sku:
OTI0MQ::Y2:79K4437@y0
condition:
11
seller:
Arrow
amzMan:
harting
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Angle | Right Angle Straight |
| Approximate Amperage Rating - Grounding Braid, Current Rating | 1 A |
| ASIN | B005T7TTY2 |
| Batteries Required? | No |
| Category | Connectors, Interconnects |
| Color | Pebble Gray |
| Connection Material | Copper Alloy |
| Connector Configuration | Rows z,a,b,c and d |
| Connector Type | Printed Board, Receptacle, Female Sockets |
| Contact Finish | Noble Metal; Tin over Nickel, Gold |
| Contact Finish Thickness, Current Rating (Amps), Features, Material - Insulation, Operating Temperature, Style | - |
| Contact Plating | Gold Over Nickel |
| Description | CONN DIN RCPT 160POS PCB RA GOLD |
| Description/Special Features, Features | Angled |
| Detailed Description | 160 (96 + 64 Ground) Position Din Connector Receptacle, Female Sockets Gold Through Hole, Right Angle |
| Digi-Key Part Number | 1195-1030-ND |
| Finish | Noble Metal over Ni (Mating Side) Sn over Ni (Termination Side) |
| Flammability Rating | UL 94 V-0 |
| Gender | Female |
| Green Environmental Attribute | Lead-Free |
| Item | PCB Connector |
| Item Package Quantity, Level, Class | 1 |
| Length | 0.114 in |
| Manufacturer Product Number | 02041601101 |
| Manufacturer Standard Lead Time | 13 Weeks |
| Manufacturer, Mfr | HARTING |
| Material | Glass Fiber Filled Thermoplastic Resin |
| Material Flammability Rating | UL94 V-0 |
| Max. Temp. | 125?C |
| Mounting Hole Size | 2.8 mm |
| Mounting Type | Through Hole, Right Angle |
| Number of Contacts | 160 |
| Number of Positions | 160 (96 + 64 Ground) |
| Number of Positions Loaded | All |
| Number of Rows | 5 |
| Overall Length | 93.8 mm |
| Package | Bulk |
| Part Number | 79K4437 |
| Pin Length | 2.9 mm |
| Pin Spacing | 2.54 mm |
| Pitch | 0.100" (2.54mm), 2.54 |
| Primary Type | Industrial |

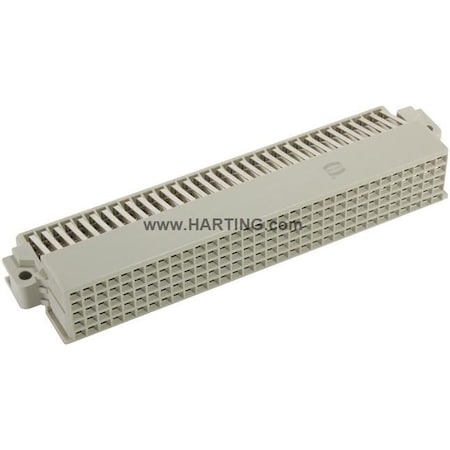

| Product Header | Har-Bus 64 Inverse Type Female Printed Board Connector |
| Product Status | Active |
| Series | Har-Bus 64, harbus64 Series, DIN 41612 |
| Special Features | Backplane |
| Standards | IEC 60603-2, UL 1977 ECBT2.E102079; CSA-C22.2 No. 182.3 ECBT8.E102079 |
| Sub-Category | Connectors |
| Terminal Type | Wave Soldering |
| Termination | Solder |
| Type | PCB Socket |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Arrow | 02041601101 | 52.6 | 52.6 | 1 | 27 | HARTING Elektronik | 52.6 @ Qty: 1+ | |||
| Hotenda | H704069 | 54.2 | 54.2 | 1 | In Stock | HARTING | 54.2 @ Qty: 1+ | |||
| Amazon | B005T7TTY2 | 56.76 | 56.76 | 1 | In Stock | HARTING | 56.76 @ Qty: 1+ | |||
| TME | 02041601101 | 67.02 | 576.372 | 20 | In Stock | HARTING | 67.02 @ Qty: 20+ | |||
| AmazonTP | B073RQJ768 | 68.5 | 68.5 | 1 | In Stock | 5 | HARTING ELECTRONICS | 68.5 @ Qty: 1+ | ||
 | Digi-Key | 3179612 | 71.5 | 71.5 | 1 | 194 | HARTING | 71.5 @ Qty: 1+ | ||
| us.rs-online.com | 70070262 | 71.74 | 71.74 | 1 | 4 | HARTING | 71.74 @ Qty: 1+ | |||
| Future Electronics | 5173976 | 72.468 | 72.468 | 1 | 35 | HARTING | 72.468 @ Qty: 1+ | |||
| RS Delivers | 381-8668 | 78.096 | 78.096 | 1 | 12 | HARTING | 78.096 @ Qty: 1+ | |||
 | Carlton Bates Company | 78950686392 | 1362.6 | 1362.6 | 1 | In Stock | HARTING OF NORTH AMERICA INC | 1362.6 @ Qty: 1+ | ||
 | Zoro | G4052228 | 1872.99 | 1872.99 | 1 | In Stock | Harting | 1872.99 @ Qty: 1+ |
