| Application | Chemical Dosing, Transfer and Processing, Chlorination Systems |
| Body Material | PVDF |
| Connection Type | FNPT |
| Country of Origin (subject to change) | United States |
| Cover Material | Noryl(TM) |
| Elastomer Material | EPDM |
| Height | 3.55" |
| Inlet Size, Pipe Size | 3/8" |

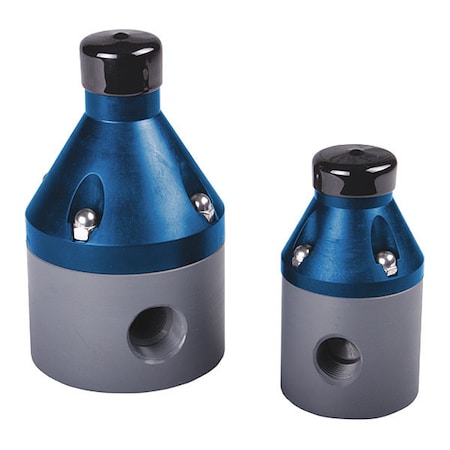

| Item | Pressure Reducing Control Valve |
| Length | 2.35" |
| Max. Continous Flow Rate, Max. Continuous Flow Rate | 11 gpm |
| Max. Fluid Temp. | 300 Degrees F |
| Max. Intermittent Flow Rate | 3.5 gpm |
| Max. Pressure, Operating Pressure | 250 psi |
| Max. Temp. | 70 Degrees F |
| Nut Material | Stainless Steel |
| Port Size | 3/8" x 3/8" |
| Pressure Adjustment Range | 10 to 150 psi |
| Spring Material | Zinc Plated |
| Valve Type | Pressure Reducing |
