Hayward TC1400TE

B009D813TM

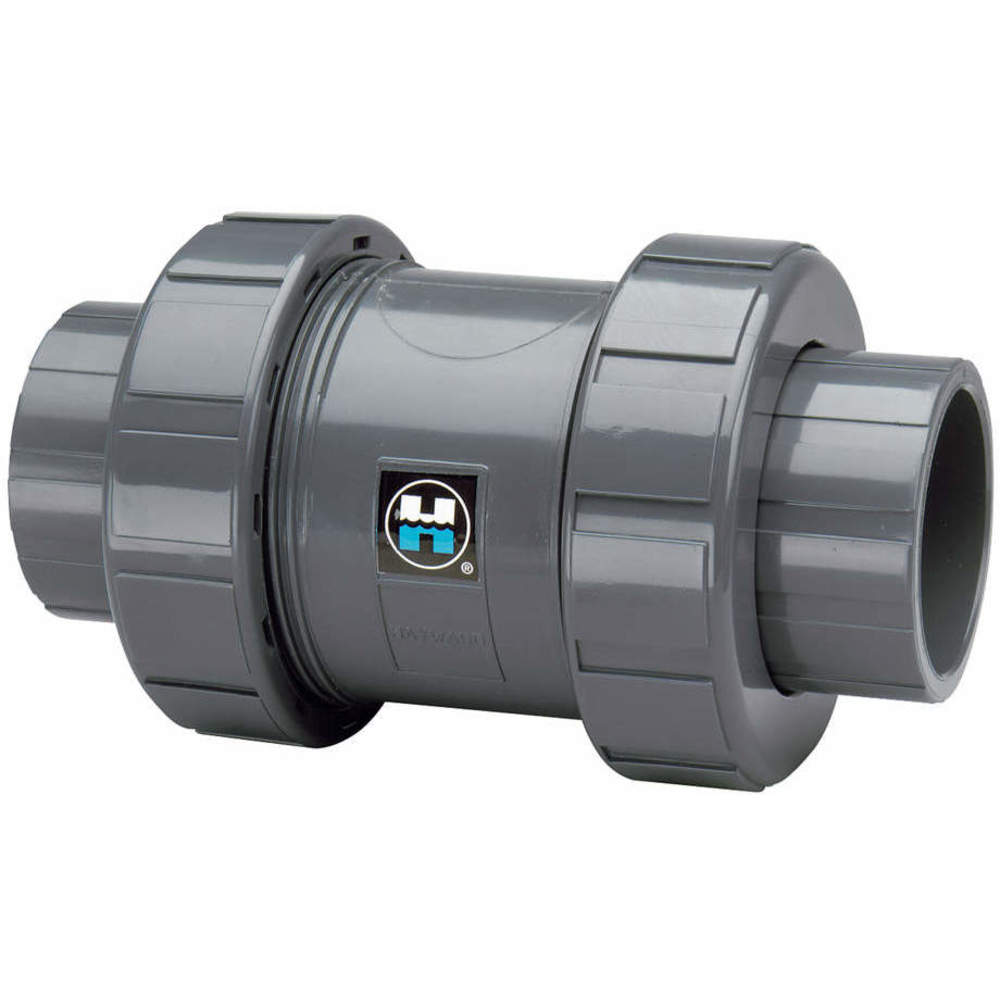

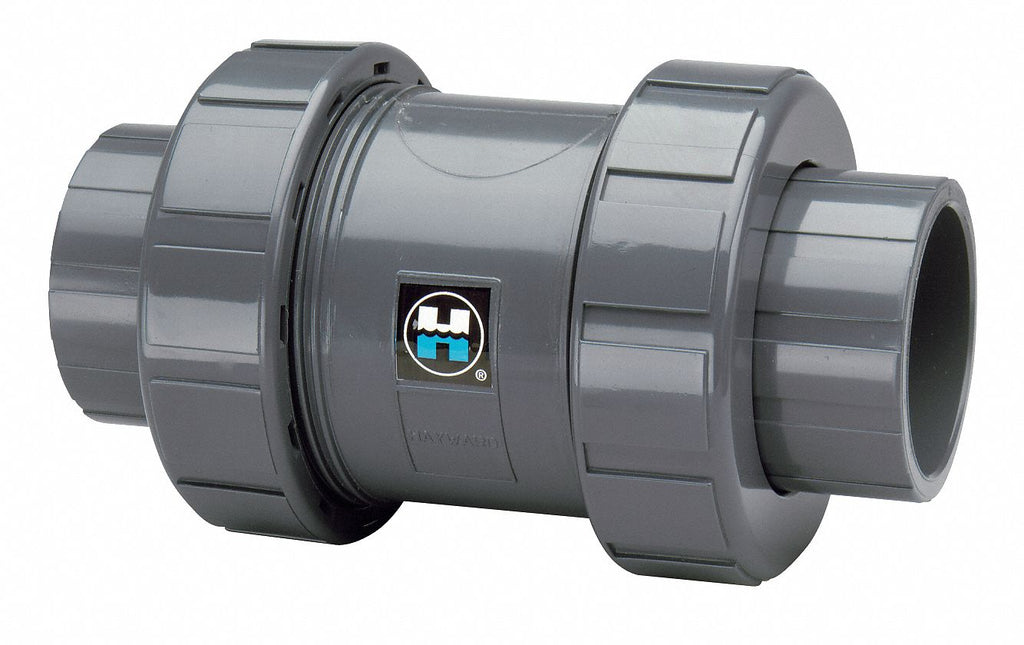

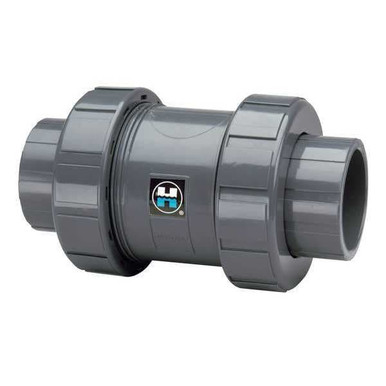

Hayward TC1400TE Series TC True Union Ball Check Valve, Threaded End, PVC with EPDM Seals, 4" Size

Hayward TC1400TE Series TC True Union Ball Check Valve, Threaded End, PVC with EPDM Seals, 4" Sizezoom

Attributes

Key Value
Application - ValvesProcess Piping
Body MaterialPVC
Body Material - ValvesPVC
BrandHayward
ColorGrey
ConnectionFNPT
Connection TypeFNPT x FNPT, Threaded
Connection Type - Check.FNPT x FNPT
Cracking Pressure3.0 psi
Description:4" PVC True Union Ball .
Dimensions8.56 in H
End StyleFNPT
Flow - Valves275 gpm
Flow DesignSingle
Full Flow - ValvesYes
Inlet to Outlet Length12.94 in
International ShippingNo
ItemCheck Valve
Item - Check ValvesCheck Valve
Length13 in
ManufacturerHAYWARD INDUSTRIAL PROD.
MaterialPVC
Max. Pressure150 psi @ 70 Degrees F
Max. Steam Pressure - V.Not Rated
Max. Temp. - Valves140 Degrees F
Max. Water Pressure - V.150 psi @ 70 Degrees F
Mechanism and Body Desi.Inline True Union
MFG Part #:TC1400TE
Min. Temp. - Valves40 Degrees F
Mounting OrientationVertical
Mounting Orientation - .Vertical
MpnTC1400TE
Nominal Size4 in
Overall Height8 9/16 in
Pipe or Tube Size4 in
Pipe or Tube Size - Che.4 in
Pipe Size4"
Port TypeFull
Pressure Rating150 psi
Seal MaterialEPDM
Seat MaterialEPDM
Seat Material - Check V.EPDM
SeriesTC Series
Size4"
SKUZO-G3043783
Softgoods MaterialEPDM
StandardsNSF 61
Sub-CategoryPVC
SubCategoryPlumbing
Supplier:HAYWARD INDUSTRIAL PROD.
Temperature Rating70 deg F
TypeTrue Union
UPC610377166690
UPC:610377166690
Width8 9/16 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonSCB009D813TM466.91In StockHayward Flow Control466.9 @ 1
thumbzoomsustainablesupply.comC2783582621.341In StockHayward18.0621.34 @ 1
thumbzoomZoroG3043783625.99113Hayward18.0625.99 @ 1
grainger.caWWG5AAU1640.175408121In StockHAYWARD18.0640.17540812 @ 1
thumbzoomblackhawksupply.comTC1400TE770.281In StockHayward770.28 @ 1
thumbzoomRaptor SuppliesAE2ZGT776.65881151In StockHAYWARD776.6588115 @ 1
thumbzoomsimsupply.comZO-G3043783785.841In StockHayward785.84 @ 1
getpoolparts.comTC1400TE1212.781In StockHayward Pool1212.78 @ 1
kscdirect.comHAY TC1400TE1400.511In StockHAYWARD INDUSTRIAL PRODUCTS1400.51 @ 1
