Hayward WCV1250V

B07BFNTDH6

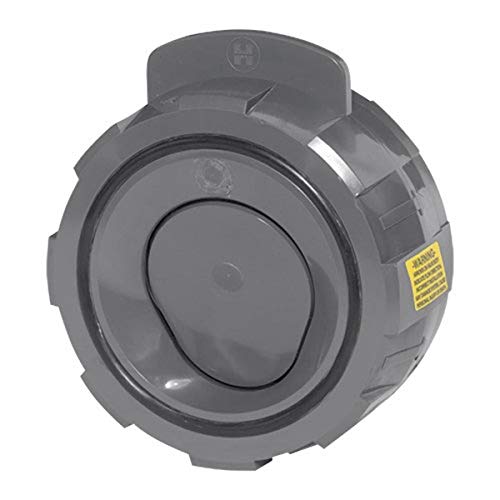

Hayward WCV1250V Series WCV Full Pattern Wafer Check Valve Without Spring, PVC with FPM Seals, 2-1/2" Size

Hayward WCV1250V Series WCV Full Pattern Wafer Check Valve Without Spring, PVC with FPM Seals, 2-1/2" Sizezoom

Attributes

Key Value
Application - ValvesGeneral Purpose
Body MaterialPVC
Body Material - ValvesPVC
Connection TypeFlanged
Connection Type - Check.Flange x Flange
Country of Origin (subj.United States
Cracking Pressure1 psi
Cracking Pressure - Che.1.0 psi
Description:2-1/2" PVC Wafer Full P.
Domestic/ImportDomestic
Flow155 gpm
Flow - Valves155 gpm
Flow DesignSingle
Full Flow - ValvesYes
Inlet to Outlet Length2.3 in
ItemWafer Check Valve
Item - Check ValvesCheck Valve
Length2 19/64 in
Length (Straight Wirewa.2 19/64 in
ManufacturerHAYWARD INDUSTRIAL PROD.
Material of ConstructionPVC
Max. Pressure150 psi @ 70 Degrees F
Max. Steam Pressure - V.Not Rated
Max. Temp.140 Degrees F
Max. Temp. - Valves140 Degrees F
Max. Water Pressure150 psi @ 70 Degrees F
Max. Water Pressure - V.150 psi @ 70 Degrees F
Mechanism and Body Desi.Inline Wafer
MFG Part #:WCV1250V
Min. Temp. - Valves40 Degrees F
Mounting OrientationHorizontal, Vertical
Mounting Orientation - .Horizontal, Vertical
Mounting PositionVertical or Horizontal
Nominal Size2-1/2 in
Overall Height6 in
Pipe or Tube Size2 1/2 in
Pipe or Tube Size - Che.2 1/2 in
Pipe Size2 1/2"
Port TypeFull
Pressure Rating150 psi
Seal MaterialFPM
Seal Material - Check V.FPM
Seat MaterialFPM
Seat Material - Check V.FPM
SeriesWCV
Size2 1/2"
Softgoods MaterialFPM
Spring Material316 Stainless Steel
Spring Material - Check.316 Stainless Steel
Sub-CategoryPVC
Supplier:HAYWARD INDUSTRIAL PROD.
Temperature Rating70 deg F
TypeWafer
UPC:610377188685
Width4 3/4 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG4998043290.41In Stock10Hayward1.89290.4 @ 1
thumbzoomblackhawksupply.comWCV1250V438.31In StockHayward438.3 @ 1
thumbzoomsustainablesupply.comC1910751459.541In StockHayward1.89459.54 @ 1
thumbzoomRaptor SuppliesAH8KFF574.41846151In StockHAYWARD574.4184615 @ 1
kscdirect.comHAY WCV1250V611.531In StockHAYWARD INDUSTRIAL PRODUCTS611.53 @ 1
