Hayward WCV1300V

B07BFMTQQN

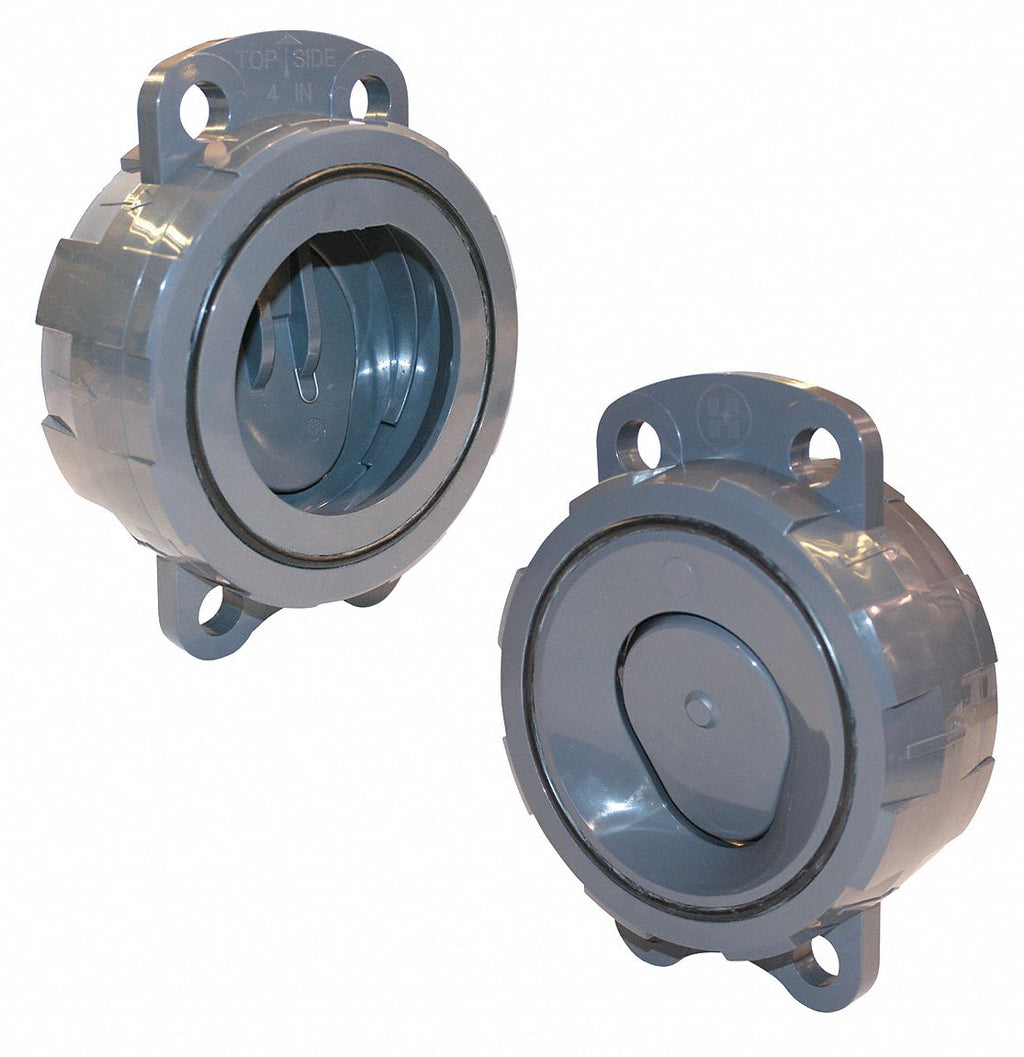

Hayward WCV1300V Series WCV Full Pattern Wafer Check Valve Without Spring, PVC with FPM Seals, 3" Size

Hayward WCV1300V Series WCV Full Pattern Wafer Check Valve Without Spring, PVC with FPM Seals, 3" Sizezoom

Attributes

Key Value
Application - ValvesGeneral Purpose
Body MaterialPVC
Body Material - ValvesPVC
Connection TypeFlanged
Connection Type - Check.Flange x Flange
Country of Origin (subj.United States
Cracking Pressure1 psi
Cracking Pressure - Che.1.000 psi
Description:3" PVC Wafer Full Patte.
Domestic/ImportDomestic
Flow220 gpm
Flow - Valves220 gpm
Flow DesignSingle
Full Flow - ValvesYes
Inlet to Outlet Length2.4 in
ItemWafer Check Valve
Item - Check ValvesCheck Valve
Length2.40"
Length (Straight Wirewa.2 13/32 in
ManufacturerHAYWARD INDUSTRIAL PROD.
Material of ConstructionPVC
Max. Pressure150 psi @ 70 Degrees F
Max. Steam Pressure - V.Not Rated
Max. Temp.140 Degrees F
Max. Temp. - Valves140 Degrees F
Max. Water Pressure150 psi @ 70 Degrees F
Max. Water Pressure - V.150 psi @ 70 Degrees F
Mechanism and Body Desi.Inline Wafer
MFG Part #:WCV1300V
Min. Temp. - Valves40 Degrees F
Mounting OrientationHorizontal, Vertical
Mounting Orientation - .Horizontal, Vertical
Mounting PositionVertical or Horizontal
Nominal Size3 in
Overall Height6-1/2"
Pipe or Tube Size3 in
Pipe or Tube Size - Che.3 in
Pipe Size3"
Port TypeFull
Pressure Rating150 psi
Seal MaterialFPM
Seal Material - Check V.FPM
Seat MaterialFPM
Seat Material - Check V.FPM
SeriesWCV
Size3"
Softgoods MaterialFPM
Spring Material316 Stainless Steel
Spring Material - Check.316 Stainless Steel
Sub-CategoryPVC
Supplier:HAYWARD INDUSTRIAL PROD.
Temperature Rating70 deg F
TypeWafer
UPC:610377188692
Width5-1/4"

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG4998025380.291In Stock26Hayward2.19380.29 @ 1
thumbzoomblackhawksupply.comWCV1300V521.71In StockHayward521.7 @ 1
thumbzoomsustainablesupply.comC1910752552.151In StockHayward2.19552.15 @ 1
kscdirect.comHAY WCV1300V673.961In StockHAYWARD INDUSTRIAL PRODUCTS673.96 @ 1
thumbzoomRaptor SuppliesAH8KFG690.17592151In StockHAYWARD690.1759215 @ 1
