mpn:
brand:
manufacturer:
MPN:
Description:

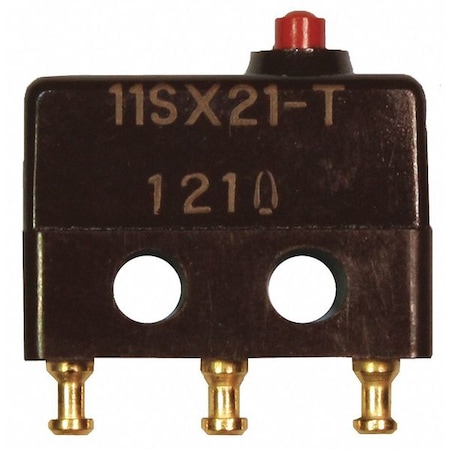

Precision Switch Basic Actuator-Pin Plunger 4 Amps Wire wrap, SX Series
Weight:
0.02
Weight:
0.02 LB
Preferred Price:
22.03
Price:
22.03
Min Simple Price:
11.82
Absolute Min Price:
17.18
Min Price:
17.18
Dimensions:
[1.0, 1.0, 1.0]
qty:
21
simpleSku:
ODExMw:::11SX21-T
sku:
ODExMw::9A:11SX21-T@y0
condition:
11
seller:
iodParts
amzMan:
honeywell
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| AC Contact Rating - Snap Action Switch | 5A @ 240V |
| Actuator Length | 0.50" |
| Actuator Type | Plunger, Round (Pin Plunger) |
| Actuator Type - Snap Action Switch | Pin, Plunger |
| Base Product Number | 11SX21 |
| Body Style | Subminiature |
| Casing Material | Water Resistant Phenolic |
| Category | Switches |
| Circuit, Contact Form, Contact Form- Switches | SPDT |
| Country of Origin (subject to change) | Mexico |
| Current Rating | 5A, 5 A |
| Current Rating (Amps) | 5A (AC/DC) |
| DC Contact Rating - Snap Action Switch | 5A @ 250V |
| Depth | 0.2" |
| Depth - Snap Action Switch | 0.2 in |
| Description | SWITCH SNAP ACTION SPDT 5A 250V |
| Detailed Description | Switch SPDT Chassis Mount |
| Differential Travel | 0.002" (0.05mm), 0.002 in |
| Digi-Key Part Number | 480-2300-ND |
| Electrical Connection - Snap Action Switch, Terminal Type, Termination Style | Solder Turret |
| Electrical Life, Features, Ingress Protection | - |
| Height | 0.4" |
| Height - Snap Action Switch | 0.4 in |
| Housing Material | General Purpose Phenolic |
| Item | Miniature Snap Action Switch |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Length | 0.5" |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Manufacturer Part Number, Manufacturer Product Number | 11SX21-T |
| Manufacturer Standard Lead Time | 10 Weeks, 4 Weeks |
| Manufacturer, Mfr | Honeywell Sensing and Productivity Solutions |
| Max. Pretravel | 0.02 in |
| Mechanical Life | 10,000,000 Cycles |
| Mounting Dimension | 0.19" Centers |
| Mounting Dimension - Snap Action Switch | 0.19 in Centers |
| Mounting Hole Size | 0.09 in |
| Mounting Type | Chassis Mount |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 5 oz, 2.5 to 5 Oz., 71 ~ 141gf |
| Operating Position | 0.320" (8.13mm) |
| Operating Temp. Range | -67 Degrees to 257 Degrees F |
| Operating Temperature | -55, -55?C ~ 125?C |
| Over Travel | 0.004 in |
| Overtravel | 0.004" (0.1mm) |
| Package, Packaging | Tray |
| Pretravel | 0.020" (0.5mm) |
| Product Status | Active |
| Release Force | 1.0 oz, 28gf |
| Series | SX, SX Series |
| Shop By | Closeouts |
| Special Features | High Temperature |
| Standard Package | 30 |
| Standards | CE, UL: E12252; CSA: LR41372, UL Listed, CSA Certified |
| Switch Function | On-Mom |
| Temperature Rating | -54 to +121 C |
| Termination | Solder Lugs |
| Type | Basic |
| Type of Actuator | Pin Plunger |
| Voltage Rating | 250VAC |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | 28 V, 28V |
| Voltage Rating, Voltage Rating - AC | 250 V |
| Watertight - Snap Action Switch | No |
| Width - Snap Action Switch | 0.5 in |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| iodParts | 11SX21-T | 11.82 | 125.292 | 25 | 60 | Honeywell | 11.82 @ Qty: 25+ | |||
| Onlinecomponents.com | 11SX21-T | 12.42 | 12.42 | 1 | 1450 | HONEYWELL | 12.42 @ Qty: 1+ | |||
| us.rs-online.com | 70119075 | 17.84 | 17.84 | 1 | 650 | Honeywell | 17.84 @ Qty: 1+ | |||
 | ebay.com_industrialgaragesales | 11SX21-T | 18.25 | 18.25 | 1 | In Stock | HONEYWELL | 18.25 @ Qty: 1+ | ||
| Arrow | 11SX21-T | 18.6 | 18.6 | 1 | 54 | Honeywell | 18.6 @ Qty: 1+ | |||
 | Zoro | G4712775 | 19.31 | 19.31 | 1 | In Stock | Honeywell | 19.31 @ Qty: 1+ | ||
| Mouser | 785-11SX21-T | 20.29 | 20.29 | 1 | 353 | Honeywell | 20.29 @ Qty: 1+ | |||
 | ebay.com_spyder93 | 11SX21-T | 20.89 | 20.89 | 1 | In Stock | HONEYWELL | 20.89 @ Qty: 1+ | ||
 | Radwell | 11SX21-T | 22.0 | 22.0 | 1 | 7 | HONEYWELL MICROSWITCH | 22.0 @ Qty: 1+ | ||
 | Newark | 23F4180 | 24.54 | 24.54 | 1 | 282 | HONEYWELL | 24.54 @ Qty: 1+ | ||
 | ebay.com_plccenter | 11SX21-T | 24.9 | 24.9 | 1 | In Stock | HONEYWELL | 24.9 @ Qty: 1+ | ||
| AmazonTP | B00MEJMT9A | 24.98 | 24.98 | 1 | In Stock | 3 | Honeywell | 24.98 @ Qty: 1+ | ||
| AmazonSC | B00KSLL2IA | 25.63 | 25.63 | 1 | In Stock | Honeywell | 25.63 @ Qty: 1+ | |||
 | TME | 11SX21-T | 25.66 | 25.66 | 1 | 200 | HONEYWELL | 25.66 @ Qty: 1+ | ||
 | ebay.com_dockguys | 11SX21-T | 25.89 | 25.89 | 1 | In Stock | HONEYWELL | 25.89 @ Qty: 1+ | ||
 | ebay.com_grainger | 11SX21-T | 26.89 | 26.89 | 1 | In Stock | HONEYWELL | 26.89 @ Qty: 1+ | ||
 | Digi-Key | 1248451 | 28.34 | 28.34 | 1 | In Stock | Honeywell Sensing and Productivity Solutions | 28.34 @ Qty: 1+ | ||
 | ebay.com_zorotools | 11SX21-T | 36.69 | 36.69 | 1 | In Stock | HONEYWELL | 36.69 @ Qty: 1+ | ||
 | ebay.com_mrhadi | 11SX21-T | 64.85 | 64.85 | 1 | In Stock | HONEYWELL | 64.85 @ Qty: 1+ | ||
 | ebay.com_avisahar2304 | 11SX21-T | 97.0 | 97.0 | 1 | In Stock | HONEYWELL | 97.0 @ Qty: 1+ | ||
 | kempstoncontrols.co.uk | 11SX21-T | 4440.3489 | 4440.3489 | 1 | In Stock | Honeywell | 4440.3489 @ Qty: 1+ |
