| AC Contact Rating - Snap Action Switch | 15A @ 240V |
| Actuator Length | 2.50" |
| Actuator Type - Snap Action Switch | Hinge, Lever |
| Contact Form, Contact Form- Switches | SPDT |
| Country of Origin (subject to change) | Mexico |
| Current Rating | 15a |
| Depth | 0.7" |
| Depth - Snap Action Switch | 0.7 in |
| Differential Travel | 0.003 in |
| Electrical Connection - Snap Action Switch, Terminal Type | Screw |
| Height | 1.0" |
| Height - Snap Action Switch | 1 in |
| Housing Material | General Purpose Phenolic |

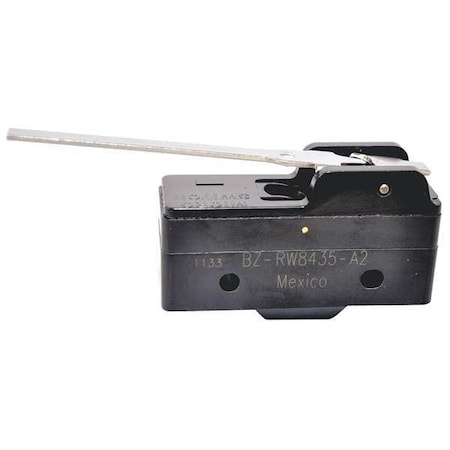

| Item | Industrial Snap Action Switch |
| Length | 2.0" |
| Lever Actuator Length - Snap Action Switch | 2.5 in |
| Max. Pretravel | 0.266 in |
| Mounting Dimension | 1.00" Centers |
| Mounting Dimension - Snap Action Switch | 1.00 in Centers |
| Operating Force | 7 gf max |
| Operating Temp. Range | -67 Degrees to 185 Degrees F |
| Over Travel | 0.219 in |
| Series | BZ |
| Standards | CSA, ENEC, UL |
| Type of Actuator | Straight Lever |
| Voltage Rating | 250VAC |
| Watertight - Snap Action Switch | No |
| Width - Snap Action Switch | 2 in |
