mpn:
brand:
manufacturer:
MPN:
Description:

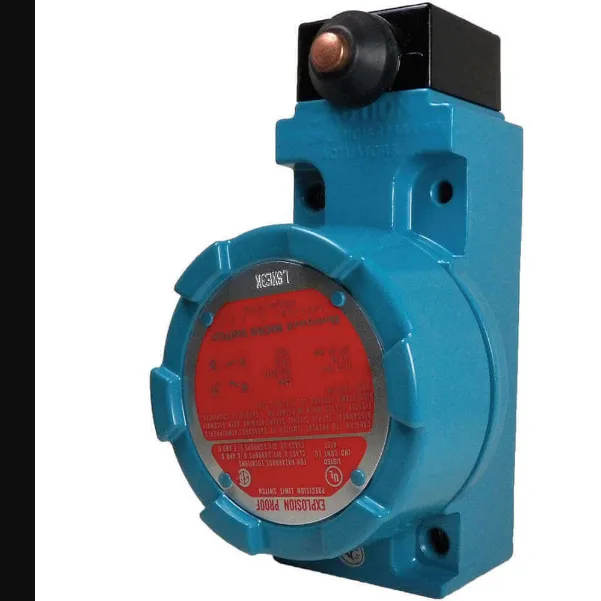

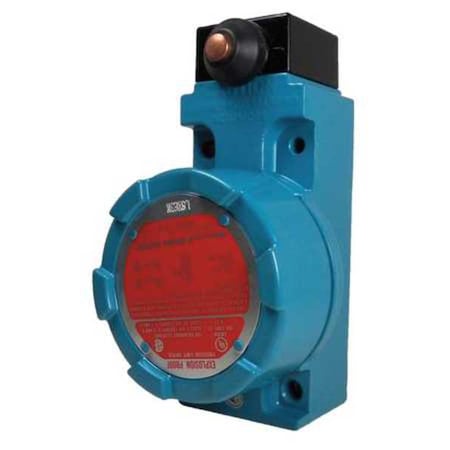

Limit Switch, Explosion Proof, Side Plunger, 1NC/1NO, SPDT, Snap Action
Weight:
0.115625
Weight:
0.115625 LB
Preferred Price:
372.79
Price:
372.79
Min Simple Price:
210.62
Absolute Min Price:
299.08
Min Price:
299.08
Dimensions:
[7.0, 4.0, 4.0]
qty:
21
simpleSku:
MjcyMA:::LSXE3K
sku:
MjcyMA::IQ:LSXE3K@y0
condition:
11
seller:
Onlinecomponents.com
amzMan:
honeywell sensing and control
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| AC Contact Rating, AC Contact Rating - Limit Switch | 10A @ 600V |
| Action | Snap |
| Actuator | Side Plunger |
| Actuator Length | 1.30" |
| Actuator Length - Limit Switch | 1.3 in |
| Actuator Location, Actuator Location (Limit Switch), Actuator Location - Limit Switch | Side |
| Actuator Type | Pin |
| Actuator, Actuator Style, Actuator Style (Limit Switch), Actuator Style - Limit Switch, Basic Actuator Style (Limit Switch), Basic Actuator Style - Limit Switch | Plunger |
| Alternate Part No. | 785-LSXE3K |
| Amperage Rating, Amps | 10 |
| Body Depth - Limit Switch | 2.44 in |
| Body Height - Limit Switch | 4.75 in |
| Body Material | Aluminum |
| Body Style (Limit Switch), Body Style - Limit Switch | Standard |
| Body Width - Limit Switch | 2.0 in |
| Boot Sealed Actuator (Limit Switch), Boot Sealed Actuator - Limit Switch | No |
| Brand, Manufacturer | Honeywell |
| Certification | Class1, Division1, Groups B, C, D), 9 ,Class 2, Division1, Groups E, F, G |
| Connection type | 1/2-14 NPT |
| Contact Configuration | 1NO/1NC SPDT |
| Contact Form | SPDT - 1 NC / 1 NO, 1NC/1NO, SPDT, SPDT |
| Contact Form - Limit Switch, Contact Form- Switches | 1NC/1NO |
| Country of Origin (subject to change) | United States |
| Current Rating | 10 A |
| DC Contact Rating, DC Contact Rating - Limit Switch | 10A @ 250V |
| Depth | 2.44" |
| Electrical Connection | Screw Terminals |
| Enclosure Type | NEMA 1/3/4/6/13/IP67 |
| Frequency Rating | 50/60 |
| Head Type | Side Plunger Head |
| Height | 5.75" |
| IP Rating | No IP Rating |
| Item, Limit Switch Style | Hazardous Location Limit Switch |
| Manufacturer Part No. | LSXE3K |
| Material | Die Cast Zinc |
| Mounting - Limit Switch | Surface |
| Mounting Hole - Limit Switch | (2) 0.20 in dia |
| Mounting Hole Pattern - Limit Switch | 2 Hole Diagonal |
| Mounting Hole Spacing - Limit Switch | 2.34 in x 1.16 in |
| Movement | Linear, Side |
| NEMA Rating | 1, 3, 4, 6, 7, 13, 1, 13, 3, 4, 6, 7 |
| Number of Poles | 1 |
| Operating Force | 6.0 in-lb, 26.69 N |
| Operating Temp. Range | 10 Degrees to 250 Degrees F |
| Operating Temperature | -12 to 121 |
| Product Category, Switch Type | Limit Switches |
| Roller Width | 0.19 in |
| Series | LSX Series, LSX, HDLS |
| Standards | CSA, UL |
| Stem Thread - Limit Switch | No Stem |
| Termination Style | Screw |
| Tradename | Microswitch |
| Travel | Differential Travel 0.045 in, Maximum Pretravel 0.10 in, Minimum Over Travel 0.19 in |
| Voltage Rating | 600VAC/250VDC, 600 VAC/250 VDC |
| Voltage Rating AC | 600 V |
| Voltage Rating DC | 250 V |
| Width | 2.00" |
| Wiring Entry | 1/2"-14 NPT |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Onlinecomponents.com | LSXE3K | 210.62 | 210.62 | 1 | 2 | HONEYWELL | 210.62 @ Qty: 1+ | |||
| Digi-Key | LSXE3K-ND | 228.82 | 320.348 | 2 | In Stock | Honeywell Sensing and Productivity Solutions | 228.82 @ Qty: 2+ | |||
| Grainger | 12V027 | 350.0 | 350.0 | 1 | In Stock | 35 | HONEYWELL MICRO SWITCH | 350.0 @ Qty: 1+ | ||
 | swatee.com | LSXE3K | 380.13 | 380.13 | 1 | 2 | Honeywell | 380.13 @ Qty: 1+ | ||
 | sustainablesupply.com | C2889644 | 436.01 | 436.01 | 1 | In Stock | Honeywell Micro Switch | 1.85 | 436.01 @ Qty: 1+ | |
 | Radwell | LSXE3K | 520.0 | 520.0 | 1 | In Stock | HONEYWELL MICROSWITCH | 520.0 @ Qty: 1+ | ||
 | standardelectricsupply.com | 2361522 | 776.76 | 776.76 | 1 | In Stock | Honeywell | 776.76 @ Qty: 1+ | ||
 | Zoro | G3906567 | 978.73 | 978.73 | 1 | In Stock | 50 | Honeywell Micro Switch | 1.85 | 978.73 @ Qty: 1+ |
| Newark | 39B093 | 1138.12 | 1138.12 | 1 | In Stock | HONEYWELL | 1138.12 @ Qty: 1+ | |||
| us.rs-online.com | 70289202 | 1140.6 | 1596.84 | 2 | In Stock | Honeywell | 1140.6 @ Qty: 2+ | |||
 | Raptor Supplies | AA4MZP | 2116.5849315 | 2116.5849315 | 1 | In Stock | HONEYWELL | 2116.5849315 @ Qty: 1+ |
