mpn:
brand:
manufacturer:
MPN:
Description:

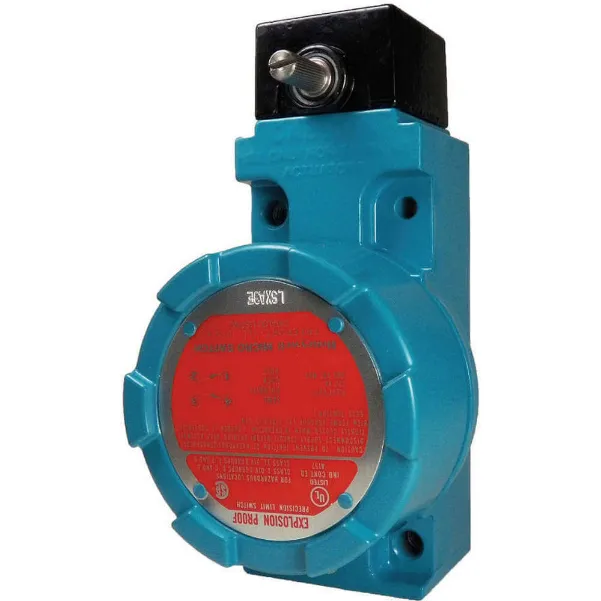

Hazardous Location Switches
Weight:
0.121875
Weight:
0.121875 LB
Preferred Price:
865.54
Price:
865.54
Min Simple Price:
489.01
Absolute Min Price:
694.39
Min Price:
694.39
Dimensions:
[7.0, 4.0, 4.0]
qty:
21
simpleSku:
ODExMw:::LSXN7L
sku:
ODExMw::DE:LSXN7L@y0
condition:
11
seller:
sustainablesupply.com
amzMan:
honeywell
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| AC Contact Rating, AC Contact Rating - Limit Switch | 10A @ 600V |
| Actuator Location, Actuator Location (Limit Switch), Actuator Location - Limit Switch | Side |
| Actuator Style | Rotary Head, No Lever |
| Actuator Style (Limit Switch) | Rotary, No Lever |
| Actuator Style - Limit Switch | No Lever, Rotary |
| Actuator Type | Side Rotary - No Lever |
| Amps | 10 |
| Base Product Number | LSXN7 |
| Basic Actuator Style (Limit Switch), Basic Actuator Style - Limit Switch | Rotary |
| Body Depth - Limit Switch | 2.44 in |
| Body Height - Limit Switch | 4.75 in |
| Body Material | Aluminum |
| Body Style (Limit Switch), Body Style - Limit Switch | Standard |
| Body Width - Limit Switch | 2.0 in |
| Boot Sealed Actuator (Limit Switch), Boot Sealed Actuator - Limit Switch | No |
| Category | Switches |
| Certification | Class1, Division1, Groups B, C, D), 9 ,Class 2, Division1, Groups E, F, G |
| Circuit | DPDT (DB/DM) |
| Contact Form | 2NC/2NO, DPDT |
| Contact Form - Limit Switch, Contact Form- Switches | 2NC/2NO |
| Country of Origin (subject to change) | United States |
| Current Rating (Amps) | 10A (AC), 800mA (DC) |
| DC Contact Rating, DC Contact Rating - Limit Switch | 10A @ 250V |
| Depth | 2.44" |
| Description | SWITCH SNAP ACTION DPDT 10A 120V |
| Detailed Description | Switch DPDT (DB/DM) Chassis Mount |
| Differential Travel | 35? |
| Digi-Key Part Number | LSXN7L-ND |
| Electrical Connection | Screw Terminals |
| Electrical Life, Ingress Protection, Mechanical Life, Operating Position, Release Force | - |
| Features | Explosion Proof |
| Height | 5.75" |
| IP Rating | No IP Rating |
| Item, Limit Switch Style | Hazardous Location Limit Switch |
| Manufacturer Product Number | LSXN7L |
| Manufacturer Standard Lead Time | 10 Weeks |
| Manufacturer, Mfr | Honeywell Sensing and Productivity Solutions |
| Mounting - Limit Switch | Surface |
| Mounting Hole - Limit Switch | (2) 0.20 in dia |
| Mounting Hole Pattern - Limit Switch | 2 Hole Diagonal |
| Mounting Hole Spacing - Limit Switch | 2.34 in x 1.16 in |
| Mounting Type | Chassis Mount |
| Movement | CCW Maintained, CW Maintained |
| NEMA Rating | 1, 13, 3, 4, 6, 7 |
| Number of Poles | 2 |
| Operating Force | 4.0 in-lb, 46gfm |
| Operating Temp. Range | 10 Degrees to 250 Degrees F |
| Operating Temperature | -1?C ~ 121?C |
| Overtravel | 20? |
| Package | Bulk |
| Pretravel | 65? |
| Product Status | Active |
| Roller Width | 0.19 in |
| Series | LSX |
| Standards | CSA, UL |
| Stem Thread - Limit Switch | No Stem |
| Switch Function | On-On |
| Termination Style | Screw Terminal |
| Travel | Differential Travel 35 Degrees , Maximum Pretravel 65 Degrees , Minimum Over Travel 20 Degrees |
| Voltage Rating | 600VAC/250VDC |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 115 V |
| Width | 2.00" |
| Wiring Entry | 1/2"-14 NPT |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | sustainablesupply.com | C2889646 | 489.01 | 489.01 | 1 | In Stock | Honeywell Micro Switch | 1.95 | 489.01 @ Qty: 1+ | |
 | Digi-Key | 3540410 | 774.87 | 774.87 | 1 | In Stock | Honeywell Sensing and Productivity Solutions | 774.87 @ Qty: 1+ | ||
 | standardelectricsupply.com | 2222659 | 817.91 | 817.91 | 1 | In Stock | Honeywell | 817.91 @ Qty: 1+ | ||
 | Zoro | G4153134 | 1030.6 | 1030.6 | 1 | In Stock | 26 | Honeywell Micro Switch | 1.95 | 1030.6 @ Qty: 1+ |
| Newark | 86C0049 | 1198.43 | 1198.43 | 1 | In Stock | HONEYWELL | 1198.43 @ Qty: 1+ | |||
 | Raptor Supplies | AA4MZW | 2457.1755585 | 2457.1755585 | 1 | In Stock | HONEYWELL | 2457.1755585 @ Qty: 1+ |
