| Ambient Temp. Range | -40 Degrees to 149 Degrees F |
| Country of Origin (subject to change) | Mexico |
| Depth | 3-5/32" |
| Electrical Connections | Enclosed Screw Terminal Strip |
| For Use With | Any Quarter-Turn, Final Control Elements Requiring Spring Return Fail-Safe Operation |
| Height | 6-81/54" |
| Includes | Mounting Bracket, Self-Centering Shaft Adapter, Internal Switch |

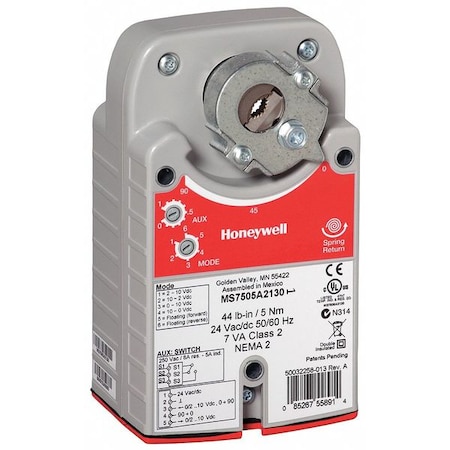

| Item | Electric Actuator |
| Motor Direction | CW or CCW |
| Mounting Type | Direct Mount |
| Power Consumption | 6/3VA |
| Shaft Type | Self-Centering Clamping |
| Signal Type | On/Off, Floating |
| Spring Return | Yes |
| Stroke Deg. | 95 +/-3 |
| Switch Type | SPDT |
| Timing | 90 sec. Nominal @ 60 Hz, 25 sec. Spring Return |
| Torque | 27 in.-lb. |
| Voltage | 24VAC/DC |
| Width | 3-55/84" |
