Honeywell V7-1B17D8-048

B00M2EHW8K

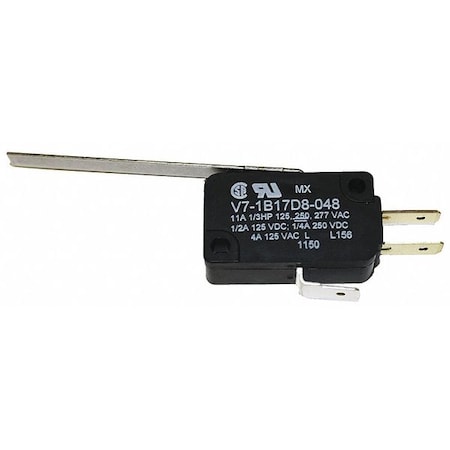

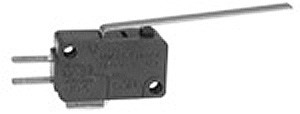

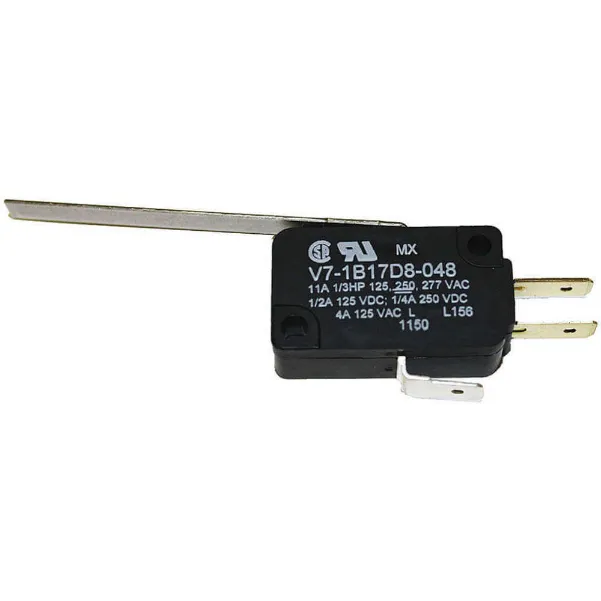

HONEYWELL V7-1B17D8-048 Switch Snap Action

HONEYWELL V7-1B17D8-048 Switch Snap Actionzoom

Attributes

Key Value
AC Contact Rating - Sna.11 A 1/3 HP 125 V, 250 .
AC contacts rating @R10A / 250V AC
ActuatorLever
Actuator Length2.34"
Actuator TypeLever, Lever, Straight
Actuator Type - Snap Ac.Lever, Long
Alternate Part No.785-V7-1B17D8-048
Base Product NumberV7-1
BrandHoneywell
CircuitSPDT
Contact FormSPDT
Contact Form- SwitchesSPDT
Contacts configurationSPDT
Current Rating11 A
Current Rating (Amps)11A (AC), 500mA (DC)
DC Contact Rating - Sna.1/2 A 125 V; 1/4 A 250 V
Depth0.4"
Depth - Snap Action Swi.0.4 in
Differential Travel0.050" (1.3mm), 0.03 in
Electrical Connection -.3/16 in Quick Connect
Electrical Life100,000 Cycles
Features-
Height0.63"
Height - Snap Action Sw.0.63 in
Ingress Protection-
ItemMiniature Snap Action S.
Leadsconnectors 4,75x0,5mm
Length1.14"
Lever Actuator Length -.2.34 in
Lever length51.2mm
ManufacturerHoneywell
Manufacturer Part No.V7-1B17D8-048
Manufacturer seriesV7
Max. Pretravel0.235 in
Mechanical durability10000000 cycles
Mechanical Life10,000,000 Cycles
MfrHoneywell Sensing and P.
Mounting Dimension0.41 x 0.87" Centers
Mounting Dimension - Sn.0.87 in Centers
Mounting TypeChassis Mount
Number of positions2
Operating Force0.5 N, 0.49N, 50gf
Operating Position0.602" (15.3mm)
Operating Temperature-40?C ~ 85?C
Operating temperature-40...85?C
Over Travel0.115 in
Overtravel0.115" (2.9mm)
PackageBulk
Pretravel0.236" (6.0mm)
Product CategoryBasic / Snap Action Swi.
Product StatusActive
Release Force0.14 oz, 4.000gf
SeriesV7 Series, BZ, V7
Stable positions number1
Switch FunctionON - (OFF), OFF - (ON),.
Switches featureswith lever
Switching methodON-(ON)
Terminal TypeQuick Connect
TerminationQC Tabs
Termination StyleScrew, Quick Connect - .
TradenameMicroswitch
Type of ActuatorLong Straight Lever
Type of switchmicroswitch SNAP ACTION
Voltage Rating - AC125 V
Voltage Rating - DC125 V
Voltage Rating AC277 V
Voltage Rating DC250 V
Width - Snap Action Swi.1.14 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomCarlton Bates Company784549207071.7117HONEYWELL1.71 @ 1
thumbzoomgalesburgelectric.comV7-1B17D8-0482.28143Honeywell2.28 @ 1
thumbzoomsustainablesupply.comC11747222.67143Honeywell0.012.67 @ 1
Onlinecomponents.comV7-1B17D8-0483.06105420Honeywell3.06 @ 10
TMEV7-1B17D8-0483.9225043HONEYWELL3.92 @ 250
thumbzoomNewark39B27664.071156HONEYWELL4.07 @ 1
thumbzoomZoroG45956474.991327Honeywell0.014.99 @ 1
Digi-Key12485305.6411745Honeywell Sensing and Productivity Solutions5.64 @ 1
us.rs-online.com702895557.091642Honeywell7.09 @ 1
thumbzoomswatee.comV7-1B17D8-0487.711126Honeywell7.71 @ 1
thumbzoomRaptor SuppliesAB7TNP8.7041565143HONEYWELL8.7041565 @ 1
thumbzoomkempstoncontrols.co.ukV7-1B17D8-048929.6352143Honeywell929.6352 @ 1
