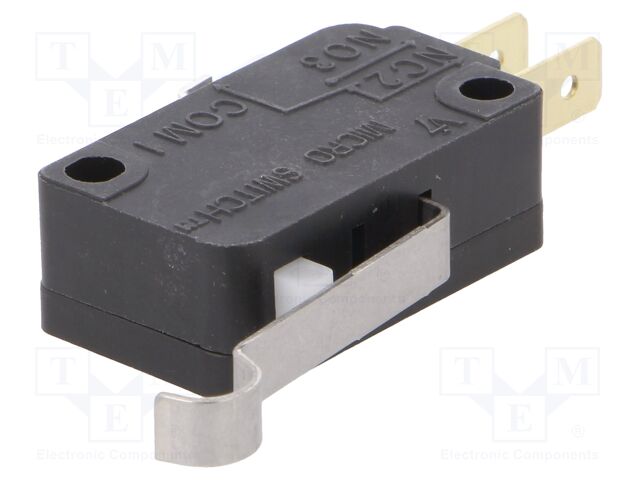

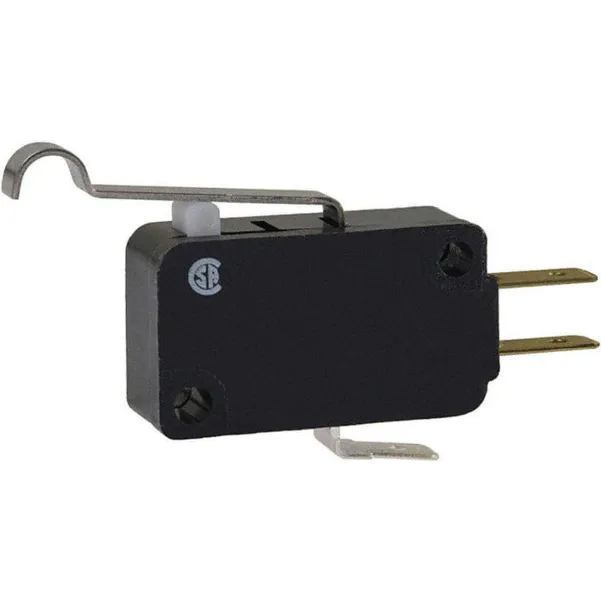

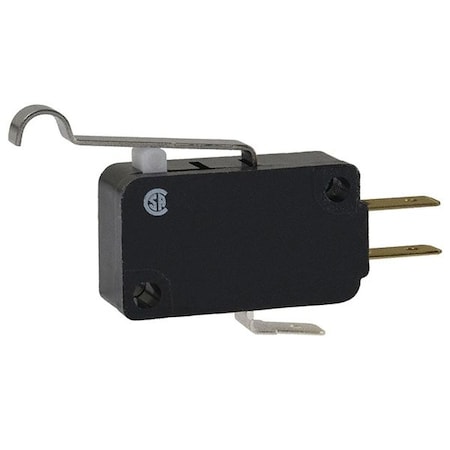

Honeywell V7-1B17D8-263 Switch, Miniature, Basic, Spdt, Simulated Roller 1.29 Inches, Quick Connect

Honeywell V7-1B17D8-263 Switch, Miniature, Basic, Spdt, Simulated Roller 1.29 Inches, Quick Connectzoom

Attributes

Key Value
AC Contact Rating - Sna.11 A @ 277 V, 11 A 1/3 .
ActuatorSimulated Roller Lever
Actuator Length1.29"
Actuator TypeLever, Simulated Roller
Actuator Type - Snap Ac.Lever, Simulated Roller
Alternate Part No.785-V7-1B17D8-263
Base Product NumberV7-1
Basic Actuator Type - S.Lever
BrandHoneywell
CategorySwitches
CircuitSPDT
Contact FormSPDT
Contact Form- SwitchesSPDT
Current Rating3A, 11 A
Current Rating (Amps)11A (AC), 500mA (DC)
Current Stock797
DC Contact Rating - Sna.1/2 A 125 V; 1/4 A 250 .
Depth0.4"
Depth - Snap Action Swi.0.4 in
DescriptionSWITCH SNAP ACTION SPDT.
Detailed DescriptionSwitch SPDT Chassis Mou.
Differential Travel0.030" (0.76mm), 0.03 in
Digi-Key Part Number480-2383-ND
Electrical Connection -.3/16 in Quick Connect
Electrical Life100,000 Cycles
Family SeriesHoneywell-Microswitch
Features-
Gross Weight0.015 lbs
Height0.63"
Height - Snap Action Sw.0.63 in
Housing MaterialPCT Polyester Thermopla.
Ingress Protection-
International ShippingNo
ItemMiniature Snap Action S.
Item NumberV7-1B17D8-263
Lead TimeExpected to ship in 1-2.
Length1.14"
Lever Actuator Length -.1.29 in
ManufacturerHoneywell-Microswitch, .
Manufacturer Part No.V7-1B17D8-263
Manufacturer Part NumberV7-1B17D8-263
Manufacturer Product Nu.V7-1B17D8-263
Manufacturer Standard L.10 Weeks
Max. Pretravel0.11 in
Mechanical Life10,000,000 Cycles
MfrHoneywell Sensing and P.
Mounting Dimension0.41 x 0.87" Centers
Mounting Dimension - Sn.0.87 in Centers
Mounting TypeChassis Mount
MpnV7-1B17D8-263
Net Weight0.015 lbs
Number of Circuits - Sn.1
Operating Force90gf, 3.17 oz, 3.17 oz..
Operating Position0.730" (18.5mm)
Operating Temp. Range-40 Degrees C to 85 D.
Operating Temperature-40?C ~ 85?C
Over Travel0.06 in
Overtravel0.060" (1.5mm)
PackageBulk
Pretravel0.110" (2.8mm)
Product CategoryBasic / Snap Action Swi.
Product StatusActive
Release Force0.31 oz, 9.000gf
SeriesV7
SKUZO-G4594256
Snap Action Switch TypeMiniature Snap Action S.
StandardsCSA, ENEC, UL
SubCategoryElectrical
Switch FunctionON - (OFF), OFF - (ON),.
Termination StyleQuick Connect Terminal,.
TradenameMicroswitch
Type of ActuatorSimulated Roller Lever
Voltage Rating250VAC
Voltage Rating - AC125 V
Voltage Rating - DC125 V
Voltage Rating AC277 V
Voltage Rating DC250 V
Watertight - Snap Actio.No
Width - Snap Action Swi.1.14 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Sager ElectronicsV7-1B17D8-2631.4913728Honeywell1.49 @ 1
Onlinecomponents.comV7-1B17D8-2631.5313236HONEYWELL1.53 @ 1
thumbzoomCarlton Bates Company784549497471.56164HONEYWELL1.56 @ 1
thumbzoomsustainablesupply.comC11747252.82141Honeywell0.012.82 @ 1
RS Delivers820-74822.916141Honeywell2.916 @ 1
Grainger24A2463.95141HONEYWELL3.95 @ 1
thumbzoomRadwellV7-1B17D8-2635.014HONEYWELL MICROSWITCH5.0 @ 1
thumbzoomDigi-Key12485345.111984Honeywell Sensing and Productivity Solutions5.1 @ 1
thumbzoomNewark39B27705.2915312HONEYWELL5.29 @ 1
alliedcontrols.comV7-1B17D8-2635.381In StockHoneywell5.38 @ 1
thumbzoomTMEV7-1B17D8-2635.491151HONEYWELL5.49 @ 1
thumbzoomZoroG45942565.591In StockHoneywell5.59 @ 1
thumbzoomswatee.comV7-1B17D8-2636.3612356Honeywell6.36 @ 1
thumbzoommidwestapplianceparts.comV7-1B17D8-263-HM-P7.451In StockHoneywell7.45 @ 1
thumbzoomRaptor SuppliesAB7TNT7.7097151In StockHONEYWELL7.709715 @ 1
thumbzoomebay.com_re_use-itV7-1B17D8-2638.08141HONEYWELL8.08 @ 1
thumbzoomGalcoV7-1B17D8-263-MCRO9.6912Honeywell-Microswitch0.0159.69 @ 1
AmazonTPB005T5IPXU10.221642Honeywell10.22 @ 1
thumbzoomsimsupply.comZO-G459425612.421797Honeywell12.42 @ 1
thumbzoomebay.com_graingerV7-1B17D8-263102.48141HONEYWELL102.48 @ 1
thumbzoomebay.com_plccenterV7-1B17D8-263103.24141HONEYWELL103.24 @ 1
thumbzoomebay.com_zorotoolsV7-1B17D8-263103.33141HONEYWELL103.33 @ 1
thumbzoomebay.com_sydco-usaV7-1B17D8-263113.961In StockHoneywell113.96 @ 1
thumbzoomebay.com_dolly6797V7-1B17D8-263119.99141HONEYWELL119.99 @ 1
thumbzoomebay.com_njcsupplyV7-1B17D8-263129.981In StockHoneywell129.98 @ 1
thumbzoomebay.com_itsalovelydayforshoppingV7-1B17D8-263168.3141HONEYWELL168.3 @ 1
thumbzoomebay.com_tne-elektronikV7-1B17D8-263169.021In StockHoneywell169.02 @ 1
thumbzoomkempstoncontrols.co.ukV7-1B17D8-263768.73681In StockHoneywell768.7368 @ 1
