| AC Contact Rating, AC Contact Rating - Limit Switch | 15A @ 480V |
| Actuator Location, Actuator Location (Limit Switch), Actuator Location - Limit Switch | Top |
| Actuator Style | Rotary Head, No Lever |
| Actuator Style (Limit Switch) | Rotary, No Lever |
| Actuator Style - Limit Switch | No Lever, Rotary |
| Amps | 15 Ind./0.5 Res./0.25 Res. |
| Basic Actuator Style (Limit Switch), Basic Actuator Style - Limit Switch | Rotary |
| Body Depth - Limit Switch | 5.71 in |
| Body Height - Limit Switch, Body Width - Limit Switch | 4.0 in |
| Body Material | Aluminum |
| Body Style (Limit Switch), Body Style - Limit Switch | Standard |
| Boot Sealed Actuator (Limit Switch), Boot Sealed Actuator - Limit Switch | No |
| Certification | Class I, Division1, Groups C, D), 9 (Class II, Division1, Groups E, F,G) |
| Contact Form | 1NC/1NO, SPDT |
| Contact Form - Limit Switch, Contact Form- Switches | 1NC/1NO |
| Country of Origin (subject to change) | United States |
| DC Contact Rating, DC Contact Rating - Limit Switch | 0.02A @ 250V |
| Depth | 5.71" |
| Electrical Connection | Screw Terminals |
| Height, Width | 4.00" |
| IP Rating | 66, 67 |

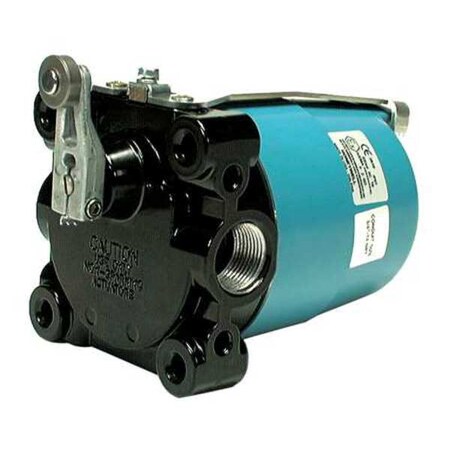

| Item, Limit Switch Style | Hazardous Location Limit Switch |
| Mounting - Limit Switch | Surface |
| Mounting Hole - Limit Switch | (4) 0.33 in dia |
| Mounting Hole Pattern - Limit Switch | 4 Hole Rectangular |
| Mounting Hole Spacing - Limit Switch | 3.15 in x 3.15 in |
| Movement | CCW, CW |
| NEMA Rating | 1, 13, 3, 4, 4X, 6, 6P, 7 |
| Number of Poles | 1 |
| Operating Force | 0.37 ft-lb |
| Operating Temp. Range | -13 Degrees to 185 Degrees F |
| Series | CX |
| Standards | CSA, UL |
| Stem Thread - Limit Switch | No Stem |
| Travel | Differential Travel 10 Degrees , Maximum Pretravel 15 Degrees , Minimum Over Travel 90 Degrees |
| Voltage Rating | 120/250/480VAC/120/250VDC |
| Wiring Entry | 3/4 in NPT |
