Attributes
| Key ^ | Value |
|---|---|
| AC Contact Rating | 0.05 A @ 250 V AC |
| Case Material | Zinc Die Cast |
| Contact Form | 2NC/2NO, Gold-Plated |
| Country of Origin (subject to change) | United States |
| DC Contact Rating | 2.5A @ 24VDC |
| Depth | 3.66" |
| For Use With | Microswitch CPS Accessories |
| Indicator | 24VDC Red Multi-Cluster LED |
| IP Rating | 67 |

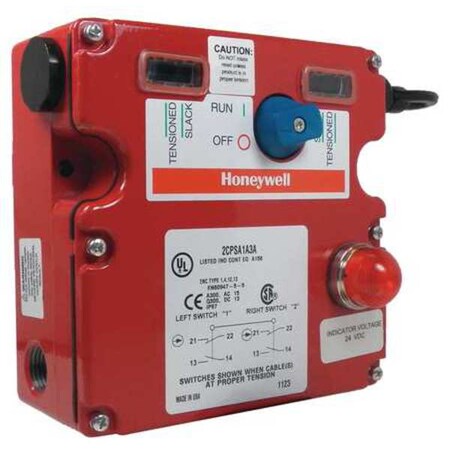

| Item | Emergency Cable Pull Switch |
| Length, Width | 9.63" |
| Max. Cable Span | 250 ft |
| Min. Current | 10uA to 50mA |
| Mounting Style | Double End |
| NEMA Rating | 1, 4, 12, 13 |
| Operating Force | 3 to 5 lb. |
| Reset | Rotary Knob |
| Standards | UL Listed, CSA Certified, CE Marked, SIL 3 Capable, Low Voltage Directive 73/23/EEC, as Amended By Directive 93/68/EEC, Machinery Directive 98/37/EEC Only as the Directives Relate to the Components Being Used in a Safety Function, EN60947-1, EN-60947-5-1, EN60947-5-5 |
| Switch Function | Maintained |
| Switching Ability | Single Cable |
| Thermal Amperage | 10A |
| Wiring Entry | 1/2" NPT |
