| Actuator Length | 1.50" |
| Actuator Length - Limit Switch | 1.50 in |
| Actuator Location, Actuator Location (Limit Switch), Actuator Location - Limit Switch | Top |
| Actuator Style | Rotary Lever Arm |
| Amps | 20 Ind/0.5 Res/0.25 Res |
| Arm Material | Steel |
| Body Depth - Limit Switch | 2.02 in |
| Body Height - Limit Switch | 2.56 in |
| Body Material | Aluminum |
| Body Style (Limit Switch), Body Style - Limit Switch | Miniature |
| Body Width - Limit Switch | 2.78 in |
| Certification | ATEX, IEC Ex, Div. 1, & 2, Class I, Groups C, & D; Div. 1 & 2, Class II, Groups, E, F, & G; II 2 G, EEx d IIB + H2 T6 |
| Contact Form | 1NC/1NO, SPDT |
| Contact Form - Limit Switch, Contact Form- Switches | 1NC/1NO |
| Country of Origin (subject to change) | United States |
| Depth | 2.02" |
| Electrical Connection | Screw Terminals |
| Height | 2.56" |
| IP Rating | No IP Rating |

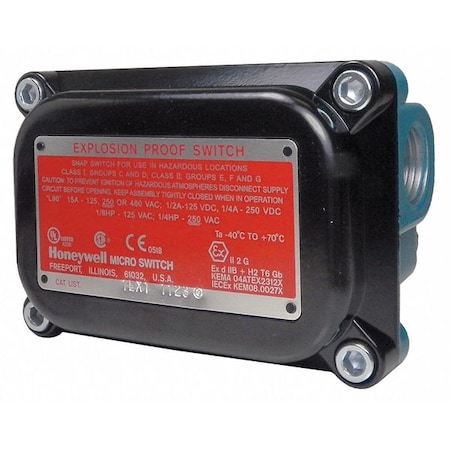

| Item, Limit Switch Style | Explosion Proof Limit Switch |
| Mounting - Limit Switch | Surface |
| Mounting Hole - Limit Switch | (4) 0.33 in dia |
| Mounting Hole Pattern - Limit Switch | 4 Hole Rectangular |
| Mounting Hole Spacing - Limit Switch | 3.15 in x 3.15 in |
| Movement | CW |
| NEMA Rating | 1, 7 |
| Number of Poles | 1 |
| Operating Force | 0.81 lb. to 2.00 lb. |
| Operating Temp. Range | -40 Degrees to 160 Degrees F |
| Roller Dia. | 0.75" |
| Roller Material | Bronze |
| Roller Width | 0.31" |
| Series | EX |
| Standards | UL, CSA, ATEX, IEC Ex |
| Stem Thread - Limit Switch | No Stem |
| Travel | Maximum Pretravel 8 Degrees , Minimum Over Travel 25 Degrees , Differential Travel 10 Degrees |
| Voltage Rating | 120/250/480VAC/120/250VDC |
| Width | 2.78" |
| Wiring Entry | (2) 1/2" NPT |
