| Actuator Length | 5.50" |
| Actuator Length - Limit Switch | 5.50 in |
| Actuator Location | Top |
| Actuator Location - Limit Switch | Top |
| Actuator Style | Wobble Stick |
| Amps | 10 |
| Arm Material | Stainless Steel |
| Body Material | Zinc Die Cast |
| Contact Form | 1NC/1NO, SPDT |
| Contact Form- Switches | 1NC/1NO |
| Country of Origin (subject to change) | United States |
| Depth | 1.75" |
| Electrical Connection | Screw Terminals |
| Height | 4.20" |
| IP Rating | 65, 66, 67 |

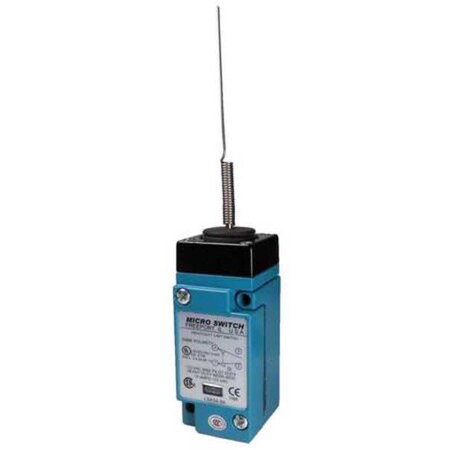

| Item | Heavy Duty Limit Switch |
| Limit Switch Style | Heavy Duty Limit Switch |
| Movement | Wobble |
| NEMA Rating | 1, 3, 4, 4X, 6, 6P, 12, 13 |
| Number of Poles | 1 |
| Operating Force | 5 oz. |
| Operating Temp. Range | 10 Degrees to 200 Degrees F |
| Series | LSK |
| Standards | UL, CSA, CE, CCC |
| Travel | Pretravel 2 in Radius |
| Voltage Rating | 600VAC/250VDC |
| Width | 1.62" |
| Wiring Entry | 1/2"-14 NPT |
