| Actuator Length | 1.74" |
| Actuator Length - Limit Switch | 1.74 in |
| Actuator Location, Actuator Location - Limit Switch, Movement | Side |
| Actuator Style | Plunger, Roller |
| Amps | 10 |
| Body Depth - Limit Switch | 2.44 in |
| Body Height - Limit Switch | 4.75 in |
| Body Material | Aluminum |
| Body Style - Limit Switch | Standard |
| Body Width - Limit Switch | 2.00 in |
| Certification | Class1, Division1, Groups B, C, D), 9 ,Class 2, Division1, Groups E, F, G |
| Contact Form | 1NC/1NO, SPDT |
| Contact Form- Switches | 1NC/1NO |
| Country of Origin (subject to change) | United States |
| Depth | 2.44" |
| Electrical Connection | Screw Terminals |
| Height | 5.75" |
| IP Rating | No IP Rating |

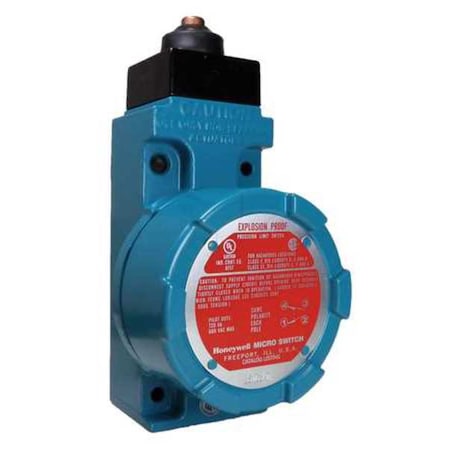

| Item, Limit Switch Style | Hazardous Location Limit Switch |
| NEMA Rating | 1, 3, 4, 6, 7, 13 |
| Number of Poles | 1 |
| Operating Force | 6.00 in.-lb. |
| Operating Temp. Range | 10 Degrees to 250 Degrees F |
| Roller Dia. | 0.50" |
| Roller Width | 0.19" |
| Series | LSX |
| Standards | UL, CSA |
| Travel | Maximum Pretravel 0.10 in, Minimum Over Travel 0.19 in, Differential Travel 0.045 in |
| Voltage Rating | 600VAC/250VDC |
| Width | 2.00" |
| Wiring Entry | 1/2"-14 NPT |
