| AC Contact Rating, AC Contact Rating - Limit Switch | 10A @ 600V |
| Actuator Location, Actuator Location (Limit Switch), Actuator Location - Limit Switch | Side |
| Actuator Style | Rotary Head, No Lever |
| Actuator Style (Limit Switch) | Rotary, No Lever |
| Actuator Style - Limit Switch | No Lever, Rotary |
| Amps | 10 |
| Basic Actuator Style (Limit Switch), Basic Actuator Style - Limit Switch | Rotary |
| Body Depth - Limit Switch | 2.44 in |
| Body Height - Limit Switch | 4.75 in |
| Body Material | Aluminum |
| Body Style (Limit Switch), Body Style - Limit Switch | Standard |
| Body Width - Limit Switch | 2.0 in |
| Boot Sealed Actuator (Limit Switch), Boot Sealed Actuator - Limit Switch | No |
| Certification | Class1, Division1, Groups B, C, D), 9 ,Class 2, Division1, Groups E, F, G |
| Contact Form | 2NC/2NO, DPDT |
| Contact Form - Limit Switch, Contact Form- Switches | 2NC/2NO |
| Country of Origin (subject to change) | United States |
| DC Contact Rating, DC Contact Rating - Limit Switch | 10A @ 250V |
| Depth | 2.44" |
| Electrical Connection | Screw Terminals |
| Height | 5.75" |
| IP Rating | No IP Rating |

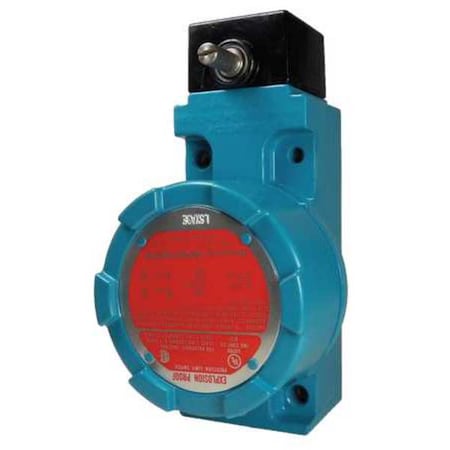

| Item, Limit Switch Style | Hazardous Location Limit Switch |
| Mounting - Limit Switch | Surface |
| Mounting Hole - Limit Switch | (2) 0.20 in dia |
| Mounting Hole Pattern - Limit Switch | 2 Hole Diagonal |
| Mounting Hole Spacing - Limit Switch | 2.34 in x 1.16 in |
| Movement | CCW Maintained, CW Maintained |
| NEMA Rating | 1, 13, 3, 4, 6, 7 |
| Number of Poles | 2 |
| Operating Force | 4.0 in-lb |
| Operating Temp. Range | 10 Degrees to 250 Degrees F |
| Roller Width | 0.19 in |
| Series | LSX |
| Standards | CSA, UL |
| Stem Thread - Limit Switch | No Stem |
| Travel | Differential Travel 35 Degrees , Maximum Pretravel 65 Degrees , Minimum Over Travel 20 Degrees |
| Voltage Rating | 600VAC/250VDC |
| Width | 2.00" |
| Wiring Entry | 1/2"-14 NPT |
