Description:

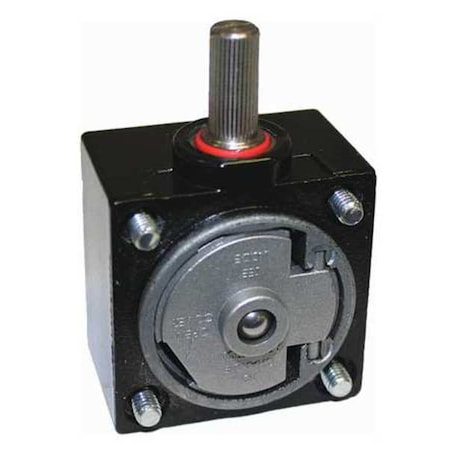

Limit Switch Head, Actuator Style Rotary, Actuator Location Side, Contact Form Not Applicable, Amps Not Applicable, Voltage Rating 600V AC/250V DC, Travel Differential Travel 5 Degrees max, Overtravel 60 Degrees min, Pretravel 15 Degrees max, Movement CW and CCW, Operating Force 4.0 in-lb, Operating Temp. -40 Degrees to 212 Degrees F, NEMA Rating 1, 3, 4, 4X, 6, 6P, IP Rating Not Rated, Standards CSA, UL, For Use With HDLS LSA, Low Temp, Switches
Attributes
| Key ^ | Value |
|---|---|
| Actuator Length | Not Specified |
| Actuator Location | Side |
| Actuator Style | Rotary |
| Amps, Contact Form | Not Applicable |
| Description/Special Features | Low Temperature |
| For Use With | HDLS LSA, Low Temp, Switches |
| IP Rating | Not Rated |
| Item, Product Type | Limit Switch Head |
| Movement | CW and CCW |
| NEMA Rating | 1, 3, 4, 4X, 6, 6P |
| Operating Force | 4.0 in-lb |
| Operating Temp. | -40 Degrees to 212 Degrees F |
| Standards | CSA, UL |
| Travel | Differential Travel 5 Degrees max, Overtravel 60 Degrees min, Pretravel 15 Degrees max |
| Voltage Rating | 600V AC/250V DC |
