Hubbell BR20WHIWRTR

mpnB00N9CDB5W
brandname: Hubbell
manufacturername: Hubbell

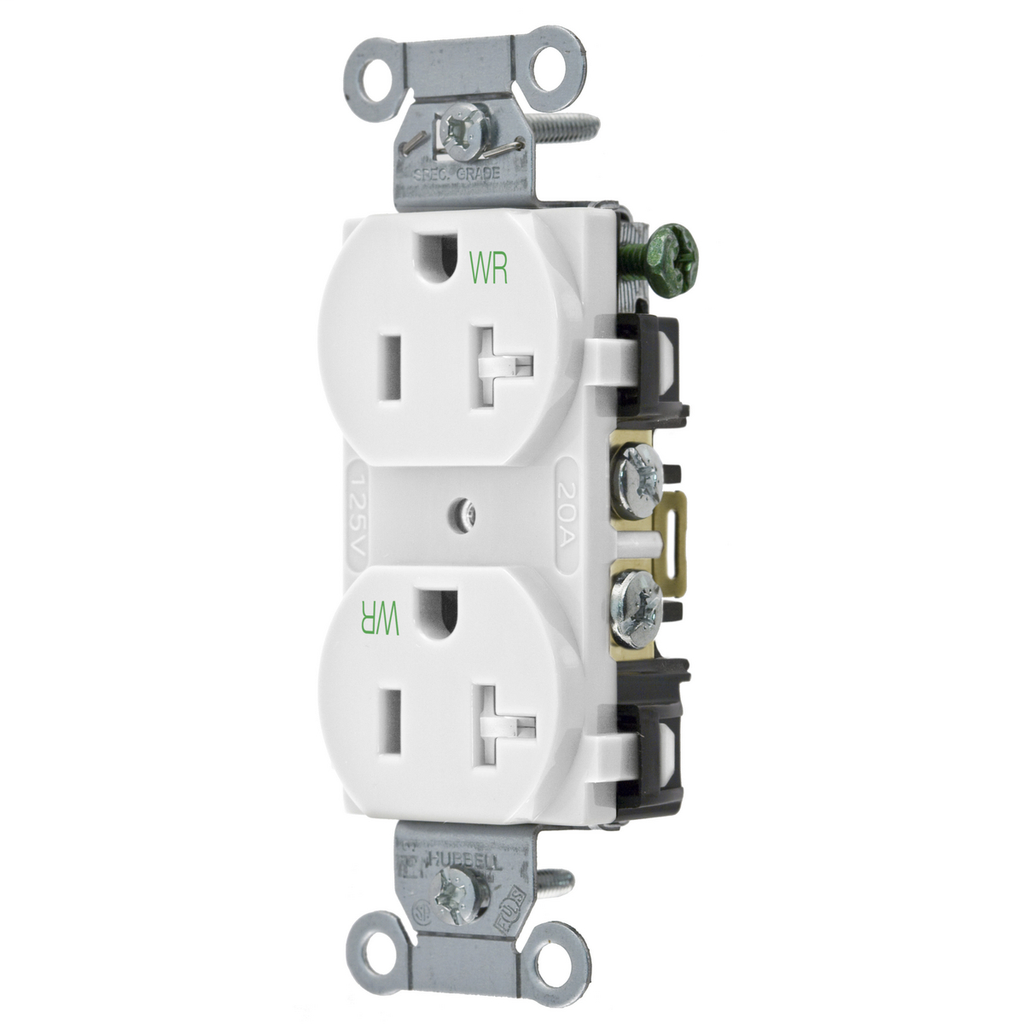

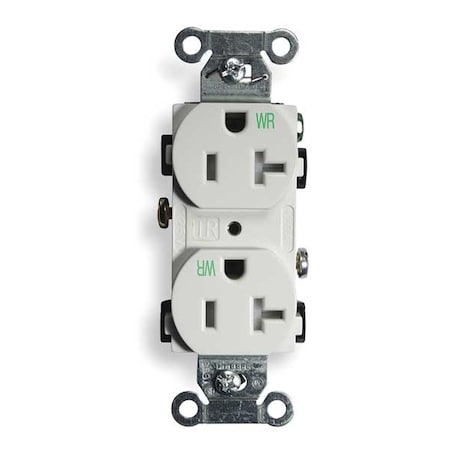

Hubbell BR20WHIWRTR Weather/Tamper Resistant, Common Ground, 20 amp, 125V, 5-20R, White

Brand: Hubbell
PartNumber: BR20WHIWRTR
Model: BR20WHIWRTR
Color: See Image
PackageQuantity: 1
Binding: Misc.
Manufacturer: Hubbell
Label: Hubbell

Attributes

Key	Value
Accessory Group	-
Additional Electrical P.	Standard Protection
Additional Electrical P.	Standard Protection
AFCI	No
Amperage	20 A
Amperage Rating	20A, 20 A
Amps	20
Amps - Plugs and Recep.	20
Amps - Plugs and Recept.	20 A
Application	Commercial Specificatio.
Application Environment	Commercial
Approvals	CSA, UL
AWG Range	#12 AWG to #10 AWG
Boot Code	-
Carton Quantity	10 EA
Color	White
Color - Plugs and Recep.	White
Color Family	White
Comments	Commercial Specificatio.
Connection Orientation	Straight
Connectivity	Back and Side Wired
Contact Material	Brass
Corrosion Resistant	No
Country of Origin	CN - China
Country of Origin (subj.	China
Cover Type	No Cover
Current / Amperage Rati.	20 A
Current / amperage rati.	20 A
Current Rating	20 A
Current rating	20 A
Description	Grounding, Smooth
Dielectric Strength	Withstands 2,000V minim.
Dielectric strength	Withstands 2,000V minim.
Display Size	Standard Sized Product
Display Type	Standard Sized Product
ECCN	EAR99
Environmental Conditions	Weather Resistant
Environmental conditions	Weather Resistant
Face Plate Height	2.73 in
Face Plate Width	1.32 in
Family Series	Hubbell Plugs & Recepta.
Flange Type	Non-Flanged
GFCI	No
Grade	Federal Specification
Gross Weight	0.2 lbs
Ground	Grounded
Grounding	Grounded
Horsepower - Maximum	1
Horsepower Rating	1 hp
Housing Color	White
Housing Colour	White
Housing Material	Nylon
HP	1, 1 hp
Illuminated	No
Includes	Grounding Staple, Mount.
Includes Mounting Hardw.	Yes
Isolated Ground	No
Item	Receptacle
Item - Plugs and Recept.	Receptacle
Item Number	BR20WHIWRTR
Item Type	Traditional Duplex
Key Resistance Properti.	Tamper & Weather Resist.
Manufacturer	Hubbell
Manufacturer Part Number	BR20WHIWRTR
Market	Commercial, Industrial
Material	Nylon
Material - Mounting Har.	Screw Mounting
Material - mounting har.	Screw Mounting
Max HP	1
Maximum Operating Tempe.	75 Degrees C, 75 Degre.
Maximum Wire Size	10 AWG
Minimum Operating Tempe.	-40 Degrees C, -40 Deg.
Minimum Wire Size	12 AWG
Mount Hole Center-to-Ce.	3.28 in
Mount Type	Flush
Mounting Type	Flush
Mounting Type - Plugs a.	Flush
Multimedia Outlet	No
NEMA Configuration	5-20, 5-15R
NEMA Enclosure Rating	1
Nema Rating	5-20R
NEMA Receptacle Configu.	5-20R
NEMA Receptacle Configu.	5-20R
Net Weight	0 lbs
No. of Poles	2
No. of Wires	3
Number of Gangs	1
Number of poles	2-Pole
Number of Poles	2
Number Of Poles	2-Pole
Number of Poles & Wires	2 Pole / 3 Wire
Number of Wires	3
Number Of Wires	3-Wire
Number of wires	3-Wire
OEM Brand Name	Hubbell Wiring Device-K.
Operating temperature	Maximum continuous 75C .
Operating Temperature	Maximum continuous 75?C.
Outlet Type	Duplex
Outlet Type - Plugs and.	Standard Duplex
Phase	1, Single, Single Phase
Polarized	Yes
Power Indicator	No
Primary Resistance Prop.	Tamper Resistant - Tamp.
Product Type	Receptacle
Rated Voltage	125V
Receptacle Type	Duplex
Resistance Properties	Tamper Resistant, Weath.
Series	Commercial Specificatio.
Shrouded	No
Standard	Certified to CSA C22.2,.
Standards	Certified to CSA C22.2,.
Style	Smooth Face
Sub-Category	Duplex Receptacles
Surge Protection	No
Surge Suppression	No
Tamper Resistant	Yes
Type	Duplex, Tamper-Resistan.
UL 94 Flammability Rati.	V-2
UNSPSC	39121406
UPC	783585144726
USB	No
Voltage	125VAC, 125 V, 125 VAC
Voltage - Plugs and Rec.	125V AC
Voltage Rating	125V AC, 125 V
Voltage Rating Descript.	125 V
Voltage rating descript.	125 V
Wattage	2500 W
Weather Resistant	Yes
Weather Resistant - Plu.	Yes
Weight	0.2 lb
Wire Connection Type	Screw Terminals
Wire Connection Types	Screw Terminals
Wire size	#12 AWG to #10 AWG
Wire Size	#12 AWG to #10 AWG
Wiring Method	Back, Side
Wiring Method - Plugs a.	Back and Side

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
gordonelectricsupply.com	BR20WHIWRTR	8.76	1	In Stock		HUBBELL		8.76 @ 1
turtle.com	HUB BR20WHIWRTR	9.24	1	In Stock		Hubbell		9.24 @ 1
Zoro	G2899407	10.0	1	In Stock		Hubbell	1.15	10.0 @ 1
Onlinecomponents.com	BR20WHIWRTR	10.71	1	In Stock		Hubbell		10.71 @ 1
Graybar	25172163	11.3456	1	70		Hubbell Wiring Device - Kellems		11.3456 @ 1
MRO Supply	1015365	11.57	4	In Stock		Hubbell Wiring		11.57 @ 4
Galco	BR20WHIWRTR-HBBL	11.91	1	In Stock		Hubbell	0.2	11.91 @ 1
mayerelectric.com	HUBBR20WHIWRTR	11.96	1	In Stock		HUBBELL WIRING DEVICES	0.2	11.96 @ 1
Grainger	2HED3	12.81	1	141	0	HUBBELL WIRING DEVICE-KELLEMS		12.81 @ 1
sustainablesupply.com	C2889906	14.56	1	In Stock		Hubbell Kellems	1.15	14.56 @ 1
Newark	84M8995	19.2	1	In Stock		HUBBELL WIRING DEVICES		19.2 @ 1
AmazonTP	B0078S3NNS	19.69	1	In Stock	3	Hubbell Wiring Device-Kellems		19.69 @ 1
Raptor Supplies	AC2AKZ	20.670975	1	In Stock		HUBBELL WIRING DEVICE-KELLEMS		20.670975 @ 1
grainger.ca	HBLBR20WHIWRTR	25.0040167	1	In Stock		HUBBELL WIRING DEVICE-KELLEMS	1.15	25.0040167 @ 1
