| AFCI | No |
| Amps, IP Rating | 20 |
| Color, Housing Color | Gray |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Country of Origin (subject to change) | United States |
| Cover Type | No Cover |
| Current Rating | 20 A |
| Flange Diameter, Flange Height, Flange Width | Not Applicable |
| Flange Type | Non-Flanged |
| For Environment | Dry |
| For Location | Indoor |
| Grade, Market | Industrial |
| Grounding | Grounded |
| Horsepower Rating | 1 hp |
| Housing Material | Valox |
| HP | 1.0 |

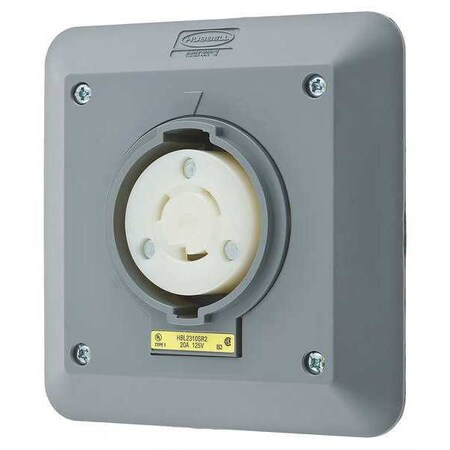

| Item, Product Type | Locking Receptacle |
| Material | Impact Modified PBT |
| Maximum Operating Temperature | 75 Degrees C |
| Maximum Wire Size | 8 AWG |
| Minimum Operating Temperature | -40 Degrees C |
| Minimum Wire Size | 16 AWG |
| Mounting Type | Semi Flush Mount |
| NEMA Configuration, NEMA Receptacle Configuration | L5-20R |
| NEMA Enclosure Rating, Phase | 1 |
| NEMA Rating | 12, 4, 4X |
| Number of Gangs, Number of Poles | 2 |
| Number of Wires | 3 |
| Polarized, Shrouded | Yes |
| Resistance Properties | Corrosion Resistant, Impact Resistant |
| Shrouded / Non-Shrouded | Shrouded |
| Special Features | Corrosion resistant |
| Standards | UL/CSA |
| UL 94 Flammability Rating | V-2 |
| Voltage, Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
