| AFCI | No |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Country of Origin (subject to change) | China |
| Cover Type | No Cover |
| Current Rating | 20 A |
| Face Diameter | 1.56 in |
| Face Plate Height | 2.77 in |
| Face Plate Width | 1.7 in |
| Flange Diameter | Not Applicable |
| Flange Height | Not Applicable |
| Flange Type | Non-Flanged |
| Flange Width | Not Applicable |
| Grounding | Grounded |
| Housing Color | Black |
| Housing Material | Nylon |
| Includes | Mounting Strap |
| Includes Mounting Hardware | Yes |

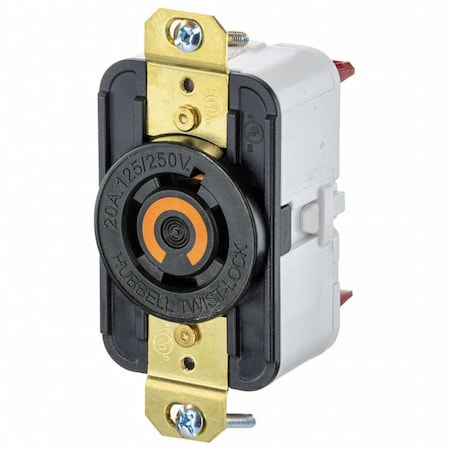

| Item | Locking Receptacle |
| Maximum Operating Temperature | 75 Degrees C |
| Maximum Wire Size | 8 AWG |
| Minimum Operating Temperature | -40 Degrees C |
| Minimum Wire Size | 14 AWG |
| Mount Hole Center-to-Center Height | 3.28 in |
| Mount Type | Flush |
| NEMA Enclosure Rating | 1 |
| NEMA Receptacle Configuration | L14-20R |
| Number of Gangs | 1 |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Overall Depth | 1.468 in |
| Polarized | Yes |
| Promotion Restriction | Not eligible for promotion |
| Resistance Properties | Impact Resistant |
| Shrouded | No |
| UL 94 Flammability Rating | V-2 |
| Voltage Rating | 125/250V AC |
