| Amps, Amps - Plugs and Receptacles, IP Rating | 20 |
| Antimicrobial, Corrosion Resistant, Shrouded | No |
| Blade Material | Brass |
| Body Length, Overall Length | 2.75 in |
| Boot Code | C |
| Color, Color - Plugs and Receptacles, Housing Color | Black |
| Connection Orientation | Straight |
| Cord Size | 0.350 in to 1.150 in |
| Country of Origin (subject to change) | United States |
| Current Rating | 20 A |
| Face Diameter | 2.21 in |
| For Environment | Dry |
| For Location | Indoor |
| For Maximum Cable Diameter | 1.15 in |
| For Minimum Cable Diameter | 0.35 in |
| Grade, Grade - Plugs and Receptacles, Market | Industrial |
| Grounding | Grounded |
| Horsepower Rating | 2 hp |
| Housing Material, Material | Nylon |
| HP | 1 Line to Neutral, 2 Line to Line |

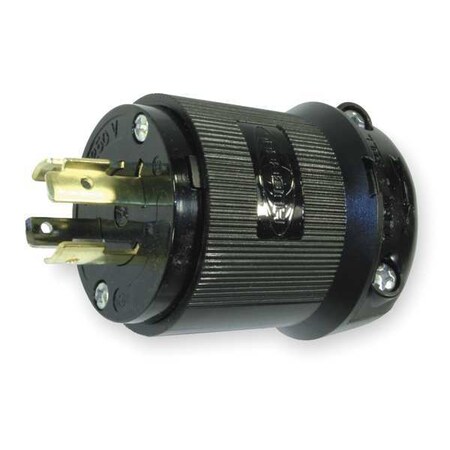

| Item, Item - Plugs and Receptacles | Locking Plug |
| Maximum Operating Temperature | 75 Degrees C |
| Maximum Wire Size | 8 AWG |
| Minimum Operating Temperature | -40 Degrees C |
| Minimum Wire Size | 16 AWG |
| NEMA Configuration, NEMA Plug Configuration, NEMA Plug Configuration - Plugs and Receptacles | L14-20P |
| Number of Blades, Number of Wires | 4 |
| Number of Poles | 3 |
| Outside Diameter | 2.33 in |
| Phase | 1 |
| Polarized | Yes |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Standards | UL/CSA |
| UL 94 Flammability Rating | HB |
| Voltage | 125/250VAC |
| Voltage - Plugs and Receptacles, Voltage Rating | 125/250V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
