| Blade Material | Copper Alloy |
| Connection Orientation | Straight |
| Country of Origin (subject to change) | China |
| Current Rating | 20 A |
| For Maximum Cable Diameter | 1.15 in |
| For Minimum Cable Diameter | 0.35 in |
| Grounding | Grounded |
| Housing Color | Black, White |
| Housing Material | Nylon |

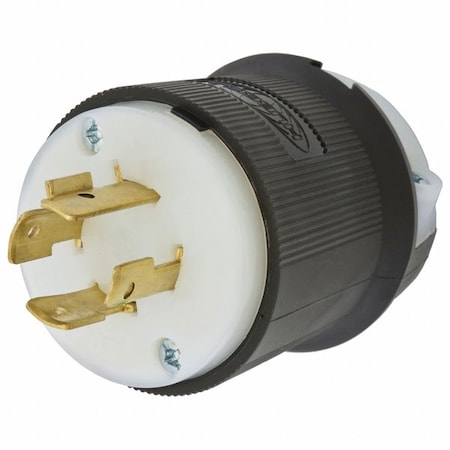

| Item | Locking Plug |
| Market | Industrial |
| Maximum Operating Temperature | 75 Degrees C |
| Maximum Wire Size | 8 AWG |
| Minimum Operating Temperature | -40 Degrees C |
| Minimum Wire Size | 14 AWG |
| NEMA Plug Configuration | L16-20P |
| Number of Blades | 4 |
| Number of Poles | 3 |
| Polarized | Yes |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Shrouded | No |
| UL 94 Flammability Rating | HB |
| Voltage Rating | 480V AC |
| Wire Connection Type | Spring Clamp Terminals |
| Wiring Style | Standard |
