Description:

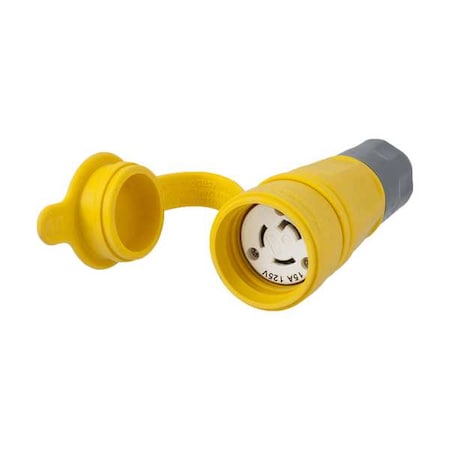

Watertight Locking Connector, Connection Orientation Straight, Current Rating 15 A, Housing Color Yellow, Housing Material Thermoplastic Elastomer, IP Rating IP69K, NEMA Receptacle Configuration L5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Corrosion Resistant, Moisture Resistant, Shrouded Yes, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type Press-On Cap, Contact Material Nickel-Plated Brass
Attributes
| Key ^ | Value |
|---|---|
| Amps, Amps - Plugs and Receptacles | 15 |
| Color - Plugs and Receptacles | Yellow |
| Cord Size | 0.300 in to 0.625 in |
| Dimensions | 1.85 in x 1.85 in x 4.62 in |
| For Maximum Cable Diameter | 0.625 in |
| For Minimum Cable Diameter | 0.375 in |
| Height | 4.62 in |
| Item, Item - Plugs and Receptacles | Watertight Locking Connector |
| Length, Outside Diameter, Overall Length, Width | 1.85 in |
| Maximum Wire Size | 10 AWG |
| Minimum Wire Size | 18 AWG |
| NEMA Configuration | L5-15 |
| NEMA Plug Configuration - Plugs and Receptacles | L5-15R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Voltage | 125VAC |
| Voltage - Plugs and Receptacles | 125V AC |
| Wire Size | 16/3 SJ to 10/3 SJ, 18/3 S to 12/3 S |
| Wiring Style | Standard |
