| Amps, Amps - Plugs and Receptacles | 20 |
| Antimicrobial, Midget Locking, Power Indicating Light, Power Indicator | No |
| Cap Type | Press-On Cap |
| Color, Color - Plugs and Receptacles, Housing Color | Black |
| Connection Orientation | Straight |
| Contact Material | Nickel-Plated Brass |
| Cord Size | 0.325 in to 0.875 in |
| Corrosion Resistant, Shrouded | Yes |
| Country of Origin (subject to change) | United States |
| Current Rating | 20 A |
| For Maximum Cable Diameter | 0.875 in |
| For Minimum Cable Diameter | 0.375 in |
| Grade | Industrial/Commercial |
| Grade - Plugs and Receptacles, Market | Industrial |
| Horsepower Rating | 5 hp |
| Housing Material | Thermoplastic Elastomer |
| HP | 5.0 |
| IP Rating | IP69K |

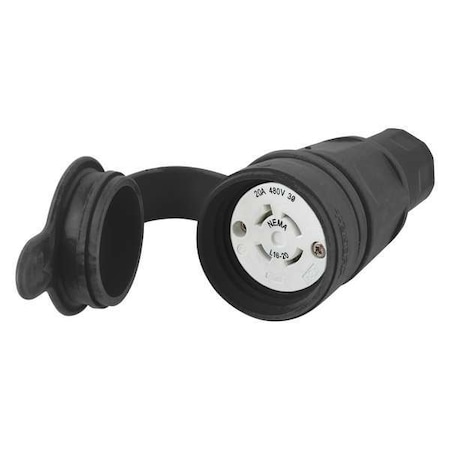

| Item, Item - Plugs and Receptacles | Watertight Locking Connector |
| Material | Thermoplastic Elastomer, Valox |
| Maximum Operating Temperature | 60 Degrees C |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40 Degrees C |
| Minimum Wire Size | 18 AWG |
| NEMA Configuration | L16-20 |
| NEMA Enclosure Rating | 12, 4, 4X, 6, 6P |
| NEMA Plug Configuration - Plugs and Receptacles, NEMA Receptacle Configuration | L16-20R |
| NEMA Rating | 4, 4X, 6, 6P |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Outside Diameter, Overall Length | 2.51 in |
| Phase | Three |
| Resistance Properties | Corrosion Resistant, Moisture Resistant, UV/Sunlight Resistant |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Special Features | Corrosion resistant |
| Standards | ANSI |
| UL 94 Flammability Rating | HB |
| Voltage | 480VAC |
| Voltage - Plugs and Receptacles, Voltage Rating | 480V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
