Attributes
| Key ^ | Value |
|---|---|
| Amperage Rating, Amps, Amps - Plugs and Receptacles | 100 |
| Amperage, Current / amperage rating, Current rating, Current Rating | 100 A |
| Application | Metallic with Nylon Shroud |
| Approvals | CSA, UL |
| Aux/Pilot Contacts | None |
| Body Material | Valox 357 Housing and Epoxy Painted Aluminum Shroud |
| Body Material - Pin and Sleeve | Valox 357 Housing and Aluminum Shroud |
| Brand | Hubbell Wiring Device - Kellems |
| Built-In Strain Relief, Shrouded | Yes |
| Cap Type | Spring-Loaded Cap |
| Case Material | Non-Metallic |
| Catalog Number, Item Number, Manufacturer Part Number | HBL3100CS2W |
| Color | Black and Gray |
| Color, Color - Plugs and Receptacles | Gray |
| Compatible with Series | UL 1686 Class 1 Insulgrip(R) |
| Conductor range | #4 AWG to #2 AWG |
| Connection Description | Water Resistant |
| Connection Orientation | Straight |
| Connectivity | Pressure Terminal Screws |
| Display Size, Display size, Item type | Standard |
| Environmental conditions | Watertight |
| Family Series | Hubbell Plugs & Receptacles, Insulgrip Series |
| Features | Pin Chamber Confines Arcing within the Interior Chamber, Spring-Loaded, Gasketed Cover for Dust-Tight Seal, Watertight Neoprene Sealing Glands for Reliable Seal |
| For Maximum Cable Diameter | 1.94 in |
| For Minimum Cable Diameter | 0.925 in |
| Gross Weight | 4.1 lbs |
| Grounding | Grounded |
| Grounding Style | Style 2 |
| GTIN | 00783585010984 |
| Housing Colour, Voltage Color Code | Black, Gray |
| Housing Material | Thermoplastic |
| Housing Material Grade | Valox 357 |
| Insulation | Insulated Body |
| IP Rating | IP68, IP69K |

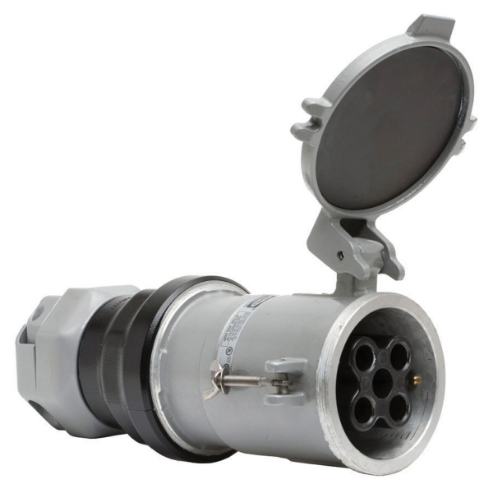

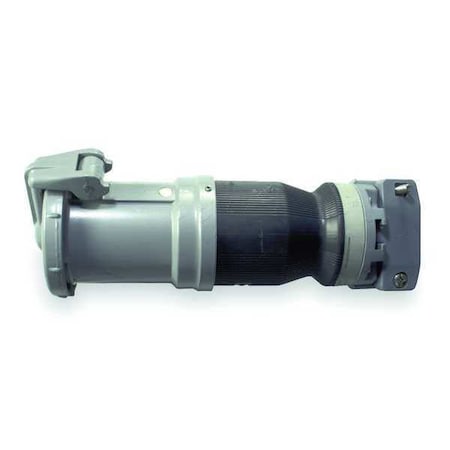

| Item, Item - Plugs and Receptacles | Watertight Pin and Sleeve Connector |
| Lockout-Tagout, Power Indicating Light, Reverse Service, Switch Rated | No |
| Manufacturer | Hubbell |
| Manufacturer, OEM brand name | Hubbell wiring device-kellems |
| Market | Industrial |
| Material | Composite |
| Material - mounting hardware | Cord Mounted |
| Maximum Operating Temperature | 75 Degrees C |
| Maximum Wire Size | 2 AWG |
| Minimum Operating Temperature | -40 Degrees C |
| Minimum Wire Size | 4 AWG |
| Mounting | Cord |
| NEMA Enclosure Rating, NEMA Rating | 4x |
| Nema Rating | Non-NEMA |
| Net Weight | 0 lbs |
| Number of conductors | 3-Wire Grounding |
| Number of poles | 2-Pole |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Number of wires | 3-Wire |
| Outside Diameter | 4.5 in |
| Overall Length | 11.7 in |
| Phase | Single |
| Phase - Electrical | 1 |
| Product Series | Insulgrip |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Series | UL 1686 Class 1 Insulgrip |
| Standards | CSA Certified C22.2 No. 182.1, UL 1682, UL Listed and CSA Certified Type 4X, UL, CSA |
| Style | Standard Service,Style 2 Grounding |
| Temperature Range (F) | -40-167 ?F |
| Temperature rating | -40 C w/o impact, -25 with impact. |
| Terminal Type | Screw |
| UL 94 Flammability Rating | V-0 |
| UPC | 783585010984 |
| Voltage | 600 V, 600 VAC/250 VDC |
| Voltage - Plugs and Receptacles, Voltage rating description | 600V AC/250V DC |
| Voltage Rating | 250V DC, 600V AC, 600 VAC/250 |
| Wire Connection Type | Screw Terminals |
| Wire Size | 2 AWG, 3 AWG, 4 AWG |
| Wire Size Range | 4-2 AWG |
