Description:

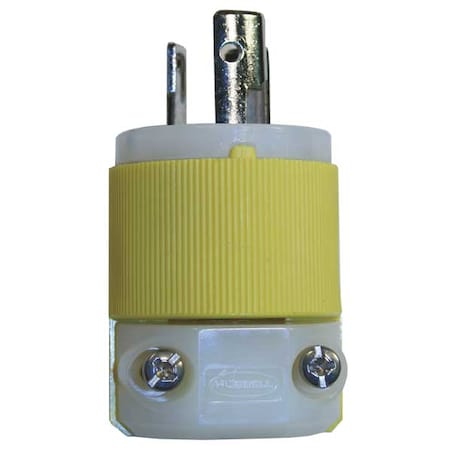

Locking Plug, Connection Orientation Straight, Current Rating 15 A, Housing Color Yellow, Housing Material Nylon, NEMA Plug Configuration L7-15P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Corrosion Resistant, Impact Resistant, Voltage Rating 277V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 0.72 in, For Minimum Cable Diameter 0.23 in, Grade Marine, Grounding Grounded
Attributes
| Key ^ | Value |
|---|---|
| Amps - Plugs and Receptacles | 15 |
| Body Length, Length, Overall Length, Width | 1.53 in |
| Cord Size | 0.230 in to 0.720 in |
| Dimensions | 1.53 in x 1.53 in x 1.97 in |
| Display Size | Standard Sized |
| For Maximum Cable Diameter | 0.72 in |
| For Minimum Cable Diameter | 0.23 in |
| Grade - Plugs and Receptacles | Marine |
| Height | 1.97 in |
| Item - Plugs and Receptacles | Locking Plug |
| Maximum Wire Size | 10 AWG |
| Minimum Wire Size | 18 AWG |
| NEMA Plug Configuration - Plugs and Receptacles | L7-15P |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Outside Diameter | 1.527 in |
| Phase | Single |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Voltage - Plugs and Receptacles | 277V AC |
| Wire Size | #18 AWG to #10 AWG |
| Wiring Style | Standard |
