Hubbell HBL47CM79C

B00N8Z6OTK

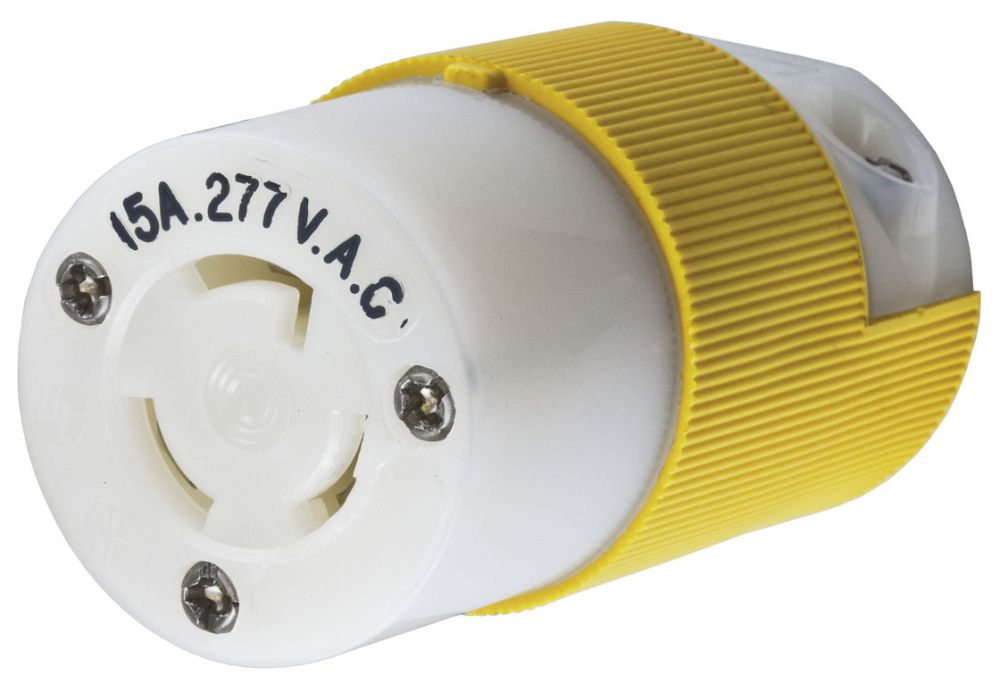

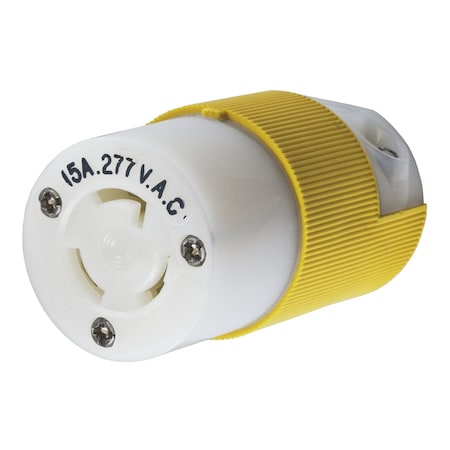

Hubbell HBL47CM79C Locking Connector, Composite, 15 amp, 277V L7-15R

Hubbell HBL47CM79C Locking Connector, Composite, 15 amp, 277V L7-15Rzoom

Attributes

Key Value
Amperage15 A
Amps15A
ApplicationHeavy Duty Industrial
ApprovalsCSA, UL
Body MaterialNatural White Nylon
Body TypeStraight
Cable range0.230 - 0.720 in
ColorYellow
Color - Plugs and Recep.Yellow
ConnectivityPressure Terminal Screws
Cord dia230 in-0.720 in
Cord Dia. Range.230"-.720" (5.8-18.3)
Cord range0.230 in-0.720 in(5.8-1.
Corrosion ResistantYes
Current / amperage rati.15 A
Current rating15 A
Current Rating15 A
Dielectric Strength2,000V minimum
Dielectric strengthWithstands 2,000V minim.
Dimensions1.53 in x 1.53 in x 2.7.
Display SizeStandard
Environmental conditionsIndoor Dry Unless Prote.
Family SeriesHubbell Plugs & Recepta.
Flame ResistantHB or better per UL 94 .
Gross Weight0.2 lbs
Height2.78 in
InsulationInsulated Body
IP RatingIP20
Isolated GroundNo
Item - Plugs and Recept.Connector Body
Item NumberHBL47CM79C
Length1.53 in
ManufacturerHubbell
Manufacturer Part NumberHBL47CM79C
MaterialNylon, .032" Bronze
Material - mounting har.Cord Mounted
NEMA ConfigurationL7-15R
Nema RatingL7-15R
Net Weight0 lbs
Number of poles2-Pole
Number of Poles2, 2-Pole
Number of wires3-Wire
Number of Wires3
Operating temperatureMaximum continuous 75C .
Phase1
Special FeaturesTerminals identified in.
StandardsRound portable service .
Temperature rating-40 C w/o impact, -25 w.
TypeConnector Body
Voltage277V AC, 125 V
Voltage rating descript.125 V
WatertightNo
Width1.53 in
Width (in)1.53
Wire size#18 AWG to #10 AWG
Wire Size#18 AWG to #10 AWG
Wiring StyleChem/Marine

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comHBL47CM79C32.91In StockHubbell32.9 @ 1
thumbzoomZoroG20070171140.151In StockHubbell Wiring Device-Kellems40.15 @ 1
thumbzoomMRO Supply102341743.01In StockHubbell Wiring43.0 @ 1
thumbzoomgordonelectricsupply.comHBL47CM79C43.651In StockHUBBELL43.65 @ 1
thumbzoomGalcoHBL47CM79C-HBBL44.261In StockHubbell0.244.26 @ 1
us.rs-online.com7198770747.011In StockHubbell Wiring Device-Kellems47.01 @ 1
Newark14C541659.31In StockHUBBELL WIRING DEVICES59.3 @ 1
thumbzoomRadwellHBL47CM79C60.013HUBBELL KELLEMS60.0 @ 1
