mpn:
brand:
manufacturer:
MPN:
Weight:
0.0220460011861
Weight:
0.0220460011861 LB
Preferred Price:
18.62
Price:
18.62
Min Simple Price:
9.35
Absolute Min Price:
13.85
Min Price:
13.85
Dimensions:
[4.0, 2.0, 2.0]
qty:
21
simpleSku:
DY4OTU:::HBL5242W
sku:
DY4OTU::WO:HBL5242W@y0
condition:
11
seller:
Onlinecomponents.com
amzMan:
hubbell
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Amperage Rating | 15A |
| Amperage, Current / amperage rating, Current rating, Current Rating | 15 A |
| Amps | 15 |
| Application Environment | Industrial |
| Application, Comments | Extra Heavy Duty Compact |
| Approvals | CSA, UL |
| AWG Range, Wire Size, Wire size | #14 AWG to #10 AWG |
| Brand | Hubbell Wiring Device-Kellems |
| Carton Quantity | 10 |
| Color, Color Family | White |
| Connectivity | Side Wired Only |
| Corrosion Resistant, GFCI, Illuminated, Isolated Ground, Multimedia Outlet, Power Indicator, Surge Suppression, Tamper Resistant, USB, Weather Resistant | No |
| Country of Origin | US - United States |
| Country of Origin (subject to change) | United States |
| Description, Ground | Grounding |
| Dielectric strength, Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.28 in x 1.33 in x 1.05 in |
| Display Size, Display Type | Standard Sized Product |
| ECCN | EAR99 |
| Environmental conditions, Environmental Rating | Indoor Dry Unless Protected By Additional Means |
| Family Series | Hubbell Plugs & Receptacles |
| Gross Weight | 0.2 lbs |
| Height | 1.05 in., 1.05 in |
| HP, Max HP, Maximum Horsepower | 0.5 |

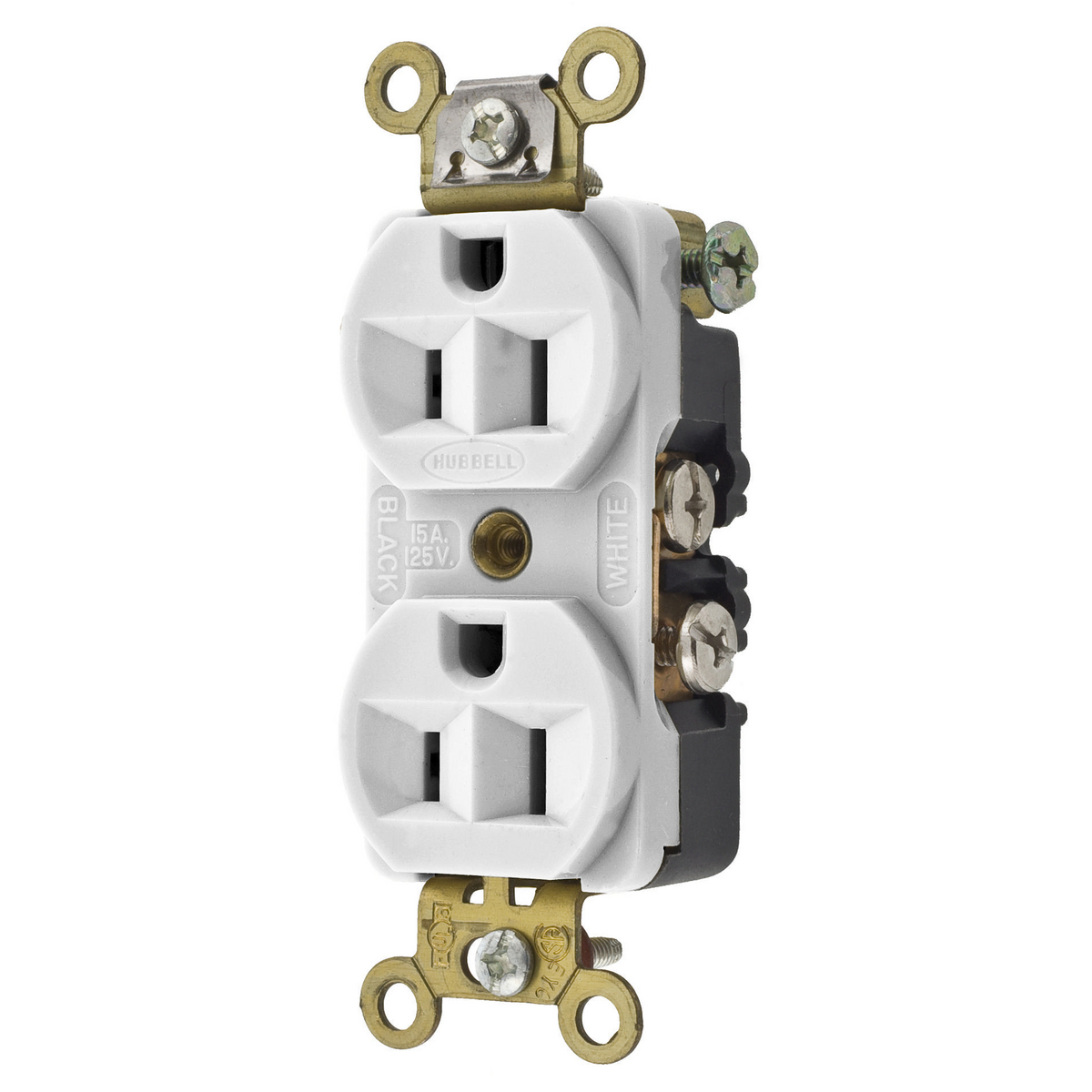

| Item | Traditional Duplex |
| Item Number, Manufacturer Part Number | HBL5242W |
| Length | 3.28 in., 3.28 in |
| Manufacturer | Hubbell |
| Material | Nylon/Reinforced PET |
| Material - mounting hardware, Mounting Hardware Material | Screw Mounting |
| Mounting Type | Flush |
| NEMA Configuration, Nema Rating | 5-15R |
| Net Weight | 0 lbs |
| No. of Poles, Number of Poles | 2 |
| No. of Wires, Number of Wires | 3 |
| Number of Gangs, Phase | 1 |
| Number Of Poles, Number of poles | 2-Pole |
| Number Of Wires, Number of wires | 3-Wire |
| Operating temperature | Maximum continuous 75C and minimum -40C without Impact |
| Operating Temperature | Maximum continuous 75?C and minimum -40?C without Impact |
| Outlet Type | Duplex |
| Phase | Single phase |
| Rated Voltage | 125V ac |
| Series | Heavy Duty |
| Standard | Certified to CSA 22.2, No. 42 File 285;Fed. Spec. WC596;NEMA? WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Standards | UL listed, CSA certified |
| Style | Finder Groove Face |
| Sub-Category | Duplex Receptacles |
| Type | Standard Duplex |
| UNSPSC | 39121406 |
| UPC | 783585000000 |
| Voltage | 125VAC |
| Voltage rating description | 125 V |
| Voltage, Voltage Rating | 125 VAC |
| Wattage | 1875 W |
| Weight | 0.2 lb |
| Width | 1.33 in., 1.33 in |
| Width (in) | 1.33 |
| Wiring Method | Side |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Onlinecomponents.com | HBL5242W | 9.35 | 9.35 | 1 | In Stock | Hubbell | 9.35 @ Qty: 1+ | |||
 | gordonelectricsupply.com | HBL5242W | 12.26 | 12.26 | 1 | In Stock | HUBBELL | 12.26 @ Qty: 1+ | ||
 | standardelectricsupply.com | 2137427 | 12.57 | 12.57 | 1 | In Stock | Hubbell | 12.57 @ Qty: 1+ | ||
 | MRO Supply | 1023691 | 12.86 | 23.148 | 3 | In Stock | Hubbell Wiring | 12.86 @ Qty: 3+ | ||
 | Galco | HBL5242W-HBBL | 13.24 | 13.24 | 1 | In Stock | Hubbell | 0.2 | 13.24 @ Qty: 1+ | |
| us.rs-online.com | 71987369 | 14.07 | 14.07 | 1 | In Stock | Hubbell Wiring Device-Kellems | 14.07 @ Qty: 1+ | |||
| steinerelectric.com | 92478 | 14.88 | 14.88 | 1 | In Stock | Hubbell Wiring Device-Kellems | 14.88 @ Qty: 1+ | |||
| Graybar | 97115915 | 18.2448 | 18.2448 | 1 | In Stock | Hubbell Wiring Device - Kellems | 18.2448 @ Qty: 1+ | |||
| Newark | 35B669 | 21.33 | 21.33 | 1 | In Stock | HUBBELL WIRING DEVICES | 21.33 @ Qty: 1+ | |||
| kirbyrisk.com | 490446 | 26.66 | 26.66 | 1 | In Stock | Hubbell | 26.66 @ Qty: 1+ | |||
 | Zoro | G2584919 | 26.74 | 37.436 | 2 | In Stock | 26 | Hubbell Wiring Device-Kellems | 0.2 | 26.74 @ Qty: 2+ |
