Hubbell HBL5342I

B00N8ZDN62

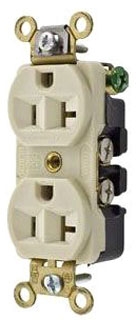

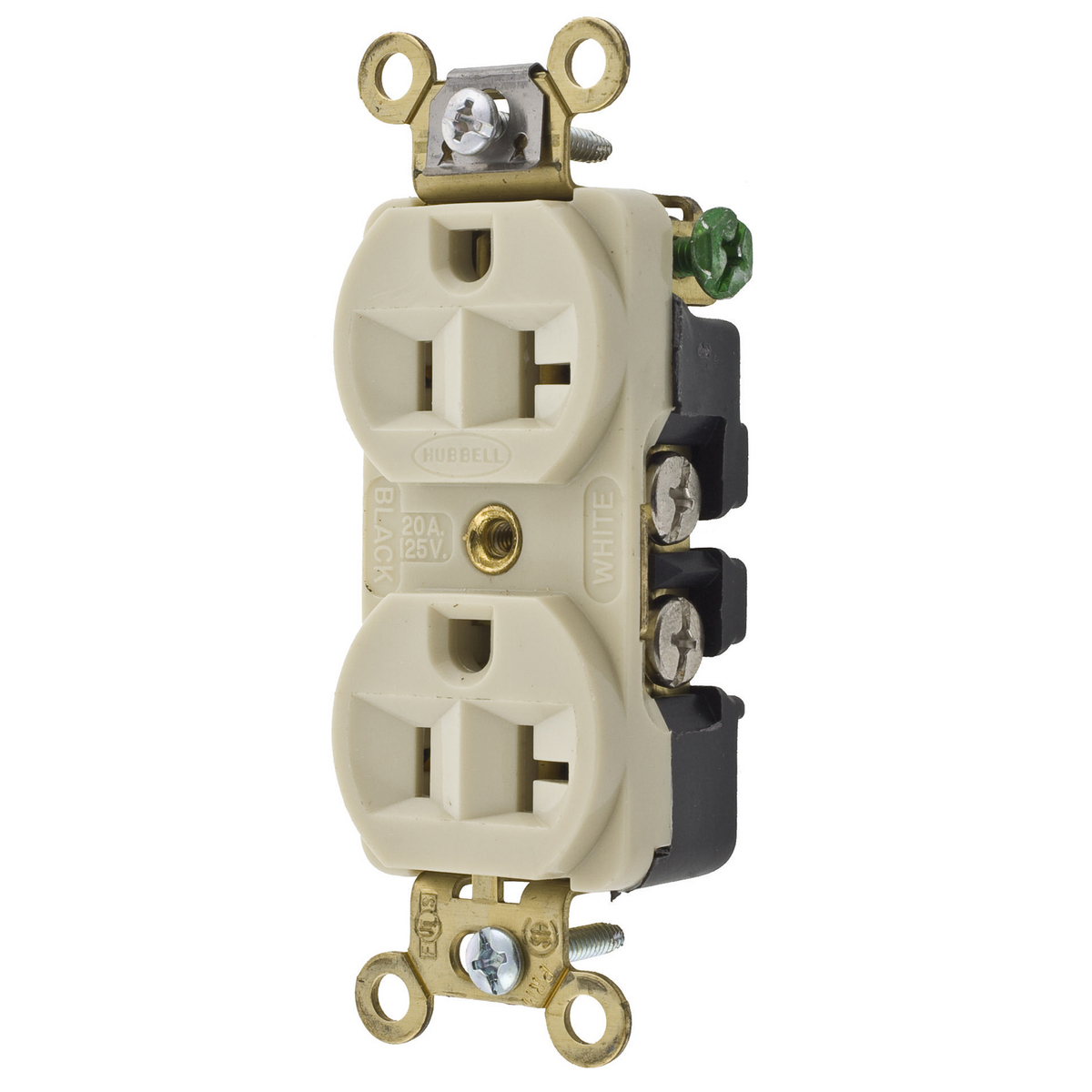

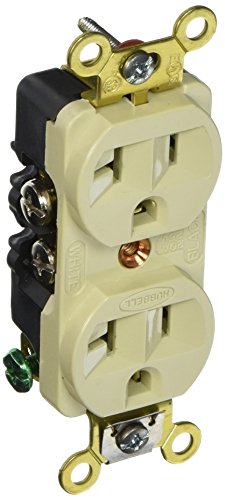

Hubbell HBL5342I Duplex Receptacle, Industrial Grade, 20 amp, 125V, 5-20R, Ivory

Hubbell HBL5342I Duplex Receptacle, Industrial Grade, 20 amp, 125V, 5-20R, Ivoryzoom

Attributes

Key Value
Amperage20 A
Amperage Rating20A, 20
Amps20
Amps - Plugs and Recep.20
Amps - Plugs and Recept.20
ApplicationExtra Heavy Duty Compact
Application EnvironmentIndustrial
ApprovalsCSA, UL
AWG Range#12 AWG to #10 AWG
BrandHubbell Wiring Device-K.
Carton Quantity10
ColorIvory
Color - Plugs and Recep.Ivory
Color FamilyIvory
CommentsExtra Heavy Duty Compact
ConnectivitySide Wired Only
Corrosion ResistantNo
Country of OriginUS - United States
Country of Origin (subj.United States
Current / amperage rati.20 A
Current Rating15 A, 20 A
Current rating20 A
DescriptionFinder Groove, Grounding
Dielectric StrengthWithstands 2,000V minim.
Dielectric strengthWithstands 2,000V minim.
Dimensions3.28 in x 1.33 in x 1.0.
Display SizeStandard Sized Product
Display TypeStandard Sized Product
ECCNEAR99
Environmental conditionsIndoor Dry Unless Prote.
Environmental RatingIndoor Dry Unless Prote.
Family SeriesHubbell Plugs & Recepta.
GFCINo
Gross Weight0.25 lbs
GroundGrounding
Height1.05 in., 1.05 in
Horsepower1
HP1, 1.0
IlluminatedNo
Isolated GroundNo
ItemTraditional Duplex
Item - Plugs and Recept.Receptacle
Item NumberHBL5342I
Length3.28 in., 3.28 in
ManufacturerHubbell
Manufacturer Part NumberHBL5342I
MaterialComposite/Thermoplastic.
Material - mounting har.Screw Mounting
Max HP1
Maximum Horsepower1
Mounting Hardware Mater.Screw Mounting
Mounting TypeFlush
Mounting Type - Plugs a.Flush
Multimedia OutletNo
NEMA Configuration5-20R, 5-15R
Nema Rating5-20R
NEMA RatingNEMA 5-20R
NEMA Receptacle Configu.5-20R
Net Weight0 lbs
No. of Poles2
No. of Wires3
Number of Gangs1
Number of poles2-Pole
Number of Poles2
Number Of Poles2-Pole
Number Of Wires3-Wire
Number of Wires3
Number of wires3-Wire
Operating temperatureMaximum continuous 75C .
Operating TemperatureMaximum continuous 75?C.
Outlet TypeDuplex
Outlet Type - Plugs and.Standard Duplex
Phase1, Single Phase
Power IndicatorNo
Rated Voltage125V AC
SeriesHeavy Duty
StandardCertified to CSA 22.2, .
StandardsUL Listed, CSA Certifie.
StyleFinder Groove Face
Sub-CategoryDuplex Receptacles
Surge SuppressionNo
Tamper ResistantNo
Temperature Rating (Deg.-40 to 75
Terminal TypeSide Wired
TypeStandard Duplex, Compac.
UNSPSC39121406
UPC783585000000
USBNo
Voltage125VAC, 125 VAC
Voltage - Plugs and Rec.125V AC
Voltage Rating125, 125 VAC
Voltage rating descript.125 V
Wattage2500 W
Weather ResistantNo
Weather Resistant - Plu.No
Weight0.25 lb
Width1.33 in., 1.33 in
Width (in)1.33
Wire size#12 AWG to #10 AWG
Wire Size#12 AWG to #10 AWG
Wiring MethodSide
Wiring Method - Plugs a.Side

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG302415613.251In StockHubbell Wiring Device-Kellems0.2513.25 @ 1
Onlinecomponents.comHBL5342I13.941In StockHubbell13.94 @ 1
thumbzoomgordonelectricsupply.comHBL5342I17.981In StockHUBBELL17.98 @ 1
thumbzoomstandardelectricsupply.com51344018.431In StockHubbell18.43 @ 1
thumbzoomMRO Supply102399518.862In StockHubbell Wiring18.86 @ 2
thumbzoomGalcoHBL5342I-HBBL19.411In StockHubbell0.2519.41 @ 1
us.rs-online.com7198739720.611In StockHubbell Wiring Device-Kellems20.61 @ 1
steinerelectric.com2708421.751In StockHubbell Wiring Device-Kellems21.75 @ 1
Graybar8812716123.99041In StockHubbell Wiring Device - Kellems23.9904 @ 1
Newark35B71028.381In StockHUBBELL WIRING DEVICES28.38 @ 1
kirbyrisk.com49045139.11In StockHubbell39.1 @ 1
