Hubbell HBLDS3MQ5

B00N7NAYHQ

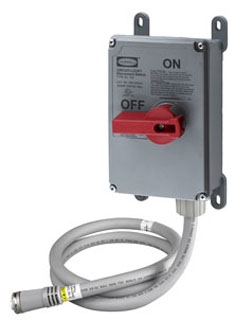

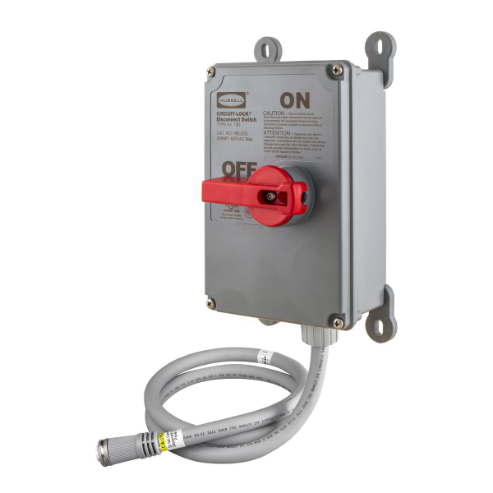

Hubbell HBLDS3MQ5 Disconnect, 3P, 30 amp, Unfused, N1, 5' Wire Leads

Hubbell HBLDS3MQ5 Disconnect, 3P, 30 amp, Unfused, N1, 5zoom

Attributes

Key Value
Amperage30A
Amperage Rating30, 30 A
Amps AC30 A
ApprovalscUL
ColorGray
Component TypeQuick-Disconnect Switch
Conductor MaterialCopper
Contact MaterialNickel-Plated Brass
Cord Length5 ft
Cord Length (Ft.)5 ft
Country of Origin (subj.Poland
Current Rating30 A
Dimensions8.5 in L x 6 in W x 4.1.
Enclosure CompositionMetallic
Enclosure TypeNEMA 4X, NEMA 4X, NEMA .
Family SeriesHubbell Disconnect Swit.
For LocationIndoor, Outdoor
For Use With2DZU9, 2DZV1, 2DZV2, 2X.
FusibleNo
Gauge/Conductor10/4
Gender ConfigurationFemale
Gross Weight4.9 lbs
Horsepower15, 15 hp
ItemSwitched Enclosure
Item NumberHBLDS3MQ5
Jacket ColorGray
Jacket TypeTC-ER
ManufacturerHubbell
Max HP 120V 1P1 hp
Max HP 230/240V 3PH7.5 hp
Max HP 240V 1P3 hp
Max HP 460/480V 3PH15 hp
Max HP 600V 3PH15 hp
Max. Voltage600V AC
Maximum Operating Tempe.75 Degrees C
Minimum Operating Tempe.-40 Degrees C
MountingWall
Mounting typeThreaded
NEMA Enclosure Rating4X
NEMA RatingNEMA 4X
Net Weight0 lbs
Number of Poles3
Operator TypeSelector - Red
PhaseThree, 3, 3 ph
Plug EndFemale
Plug Type4-Wire
Poles3
Product TypeSwitched Enclosure
Short Circuit Current R.65, 65 kA
Switch typeThree Pole Unfused
Switch Type3 Pole
Temperature Rating (Deg.-40, -40 deg C
Terminal TypePressure Screw, Screw
TypeWith Single Ended Femal.
UL 94 Flammability Rati.V-0
UL ClassUL98
UPC Code783585310954
Voltage600VAC, 600V AC
Voltage Rating600V AC, 600, 600 V
Wire Size10 AWG, 12 AWG, 14 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comHBLDS3MQ5358.381In StockHubbell358.38 @ 1
thumbzoomZoroG0718392445.01In Stock11Hubbell4.9445.0 @ 1
thumbzoomsustainablesupply.comC1184607572.411In StockHubbell4.9572.41 @ 1
thumbzoomMRO Supply1026638582.671In StockHubbell Wiring582.67 @ 1
thumbzoomgordonelectricsupply.comHBLDS3MQ5609.01In StockHUBBELL609.0 @ 1
us.rs-online.com71006143612.291In StockHubbell Wiring Device-Kellems612.29 @ 1
thumbzoomstandardelectricsupply.com2305097624.291In StockHubbell624.29 @ 1
thumbzoomGalcoHBLDS3MQ5-HBBL642.651In StockHubbell4.9642.65 @ 1
cbtcompany.comHBLDS3MQ5682.681In StockHubbell Wiring Device-Kellems682.68 @ 1
Newark16M8851799.711In StockHUBBELL WIRING DEVICES799.71 @ 1
kirbyrisk.com21626821057.61In StockHubbell1057.6 @ 1
thumbzoomRaptor SuppliesAC3XEV1088.17599151In StockHUBBELL WIRING DEVICE-KELLEMS1088.1759915 @ 1
