Hubbell 5362W

Hubbell 5362W

mpn:
5362W
brand:
name: Hubbell Wiring
manufacturer:
name: Hubbell Wiring
MPN:
5362W
Description:

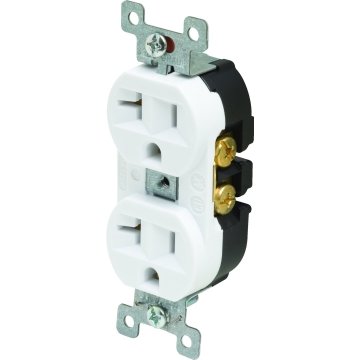

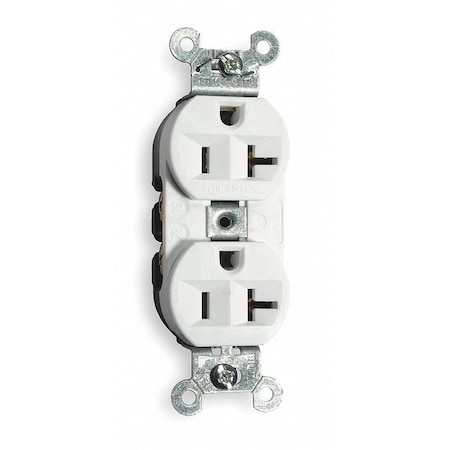

Hubbell 5362W HUBW 20A NMA5-20R Duplex RCPT
Weight:
0.05
Weight:
0.05 LB
Preferred Price:
11.02
Price:
11.02
Min Simple Price:
5.263
Absolute Min Price:
8.34
Min Price:
8.34
Dimensions:
[5.0, 2.0, 1.0]
qty:
21
simpleSku:
DY4OTU:::5362W
sku:
DY4OTU::QQ:5362W@y0
condition:
11
seller:
Monarch Electric
amzMan:
hubbell
HazMat:
False
DropShip:
False

Attributes

Key ^Value
Accessory Group, Boot Code-
Amperage Rating20A, 20 Amp
Amperage, Amps20
Amperage, Current / amperage rating, Current rating, Current Rating20 A
ApplicationHubbell-Pro Extra Heavy Duty
Application Environment, GradeIndustrial
ApprovalsCSA, UL
AWG Range, Wire size, Wire Size#12 AWG to #10 AWG
BrandHubbell Wiring Device-Kellems
Brand Name, Manufacturer NameHubbell-Wiring
Brand, ManufacturerHubbell
Carton Quantity10
Color, Color FamilyWhite
CommentsHubbell-Pro Heavy Duty
Conductor Size14-10 AWG Solid/Stranded Copper
Connection TypeDuplex Receptacle
Connectivity, Terminal ConnectionBack and Side Wired
Contact MaterialBrass
Corrosion Resistant, Degree of Protection, Energy Star Flag, Fiber Type, Finish, GFCI, Illuminated, Isolated Ground, Jacket Material, Multimedia Outlet, Power Indicator, Surge Suppression, Tamper Resistant, USB, Weather ResistantNo
Country of OriginUS - United States, USA
Country Of OriginUnited States of America
Country of Origin (subject to change)United States
DescriptionFinder Groove Face, Grounding
Dielectric Strength2000 Volt
Dielectric strength, Dielectric StrengthWithstands 2,000V minimum
Dimenions3.28 in. x 1.41 in. x 1.09 in.
Dimensions1.41 Inch Width x 1.094 Inch Depth, 3.28 in x 1.41 in x 1.09 in
Display Size, Display Type, SizeStandard Sized Product
ECCNEAR99
Environmental ConditionsV2 Flammability Rated Per UL94
Environmental conditions, Environmental RatingIndoor Dry unless protected by additional means
Family SeriesHubbell Plugs & Receptacles
GradeCommercial/Industrial
Gross Weight0.24 lbs
GroundGrounded
GroundingGrounding
GTIN00783585835013
Height1.09 in, 1.500
HP0.5
HP, Max HP, Maximum Horsepower, Number of Gangs, Package Quantity, Phase1
Industry Standard(s), StandardUL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA WD-6 Compliant
ItemTraditional Duplex, Receptacle
Item NameStraight Blade Duplex Receptacle
Item Number, Manufacturer Part Number5362W
Length3.28 in, 4.250
MaterialNylon Top and Base, Nylon, Thermoplastic/Composite
Material - mounting hardware, Mounting Hardware MaterialScrew Mounting
Maximum Load Capacity1 hp
MountingStrap/Screws
Mounting TypeScrew Mount
NEMA ConfigurationNEMA 5-20R
NEMA Configuration, Nema Rating5-20R
Net Weight0.22 lbs
No. of Poles, Number Of Outlets, Number of Poles2
No. of Wires, Number of Wires3
Number Of Poles, Number of poles2-Pole
Number of Wires3.0000
Number Of Wires, Number of wires3-Wire
Operating temperatureMaximum continuous 75C and minimum -40C without Impact
Operating TemperatureMaximum continuous 75?C and minimum -40?C without Impact
Outlet Type, StyleDuplex
PhaseSingle Phase
Rated Voltage125V
RoHS FlagYes
SeriesHubbell-PRO
Size MeasureIN
StandardUL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA? WD-6 Compliant
StandardsUL 498 E2186 Listed, CSA C22.2 No.42 Certified, NEMA WD-6, Federal Specification: W-C-596, UL Listed, CSA Certified, NEMA WD-1 and WD-6
Strap MaterialGalvanized Steel
StyleFinder Groove Face
Sub-CategoryDuplex Receptacles
Temp. RatingMaximum continuous 75?C; minimum -40?C (w/o impact)
Temperature Rating-40 to 75 deg C
Temperature ratingMaximum continuous 75C; minimum -40C (w/o impact)
TypeStandard Duplex, Heavy-Duty
UNSPSC39121406
UPC78358583501
UPC, UPC Code783585835013
Voltage125VAC, 125, 125 VAC
Voltage Rating125 Volt
Voltage, Voltage Rating, Voltage rating description125 V
Wattage1875 W
Weight0.230
Weight MeasureLB
Width2.000
Width (in)1.41
Wiring ConfigurationBack, Side
Wiring MethodBack and Side

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
Monarch Electric52385.2635.2631In StockHubbell-Wiring5.263 @ Qty: 1+
thumbzoomcbtcompany.com5362W5.535.5312Hubbell Wiring Device-Kellems5.53 @ Qty: 1+
Crescent Electric Supply Co1186726.36.31161Hubbell Wiring6.3 @ Qty: 1+
thumbzoomZoroG25309726.946.941In Stock26Hubbell Wiring Device-Kellems6.94 @ Qty: 1+
Onlinecomponents.com5362W7.47.4128HUBBELL7.4 @ Qty: 1+
steinerelectric.com1629667.897.891In StockHubbell Wiring Device-Kellems7.89 @ Qty: 1+
kirbyrisk.com19907908.98.91483Hubbell8.9 @ Qty: 1+
thumbzoomMRO Supply10143839.5721.0544In StockHubbell Wiring9.57 @ Qty: 4+
thumbzoomGalco5362W-HBBL9.859.851In StockHubbell0.249.85 @ Qty: 1+
Sager Electronics5362W9.859.851In StockHubbell Wiring Device-Kellems9.85 @ Qty: 1+
grainger.caHBL5362W10.5532192410.553219241In StockHUBBELL WIRING DEVICE-KELLEMS0.0610.55321924 @ Qty: 1+
Graybar2210354911.334411.3344195Hubbell Wiring Device - Kellems11.3344 @ Qty: 1+
thumbzoomHD Supply91868911.7911.791In StockHubbell0.2311.79 @ Qty: 1+
AmazonTPB00CYVD8QQ13.4113.411In Stock2Hubbell13.41 @ Qty: 1+
AmazonUNKB00CYVD8QQ13.4113.411In StockHubbell13.41 @ Qty: 1+
Newark85M211915.8815.881In StockHUBBELL WIRING DEVICES15.88 @ Qty: 1+
thumbzoomNational Supply Network1060037718.9418.941In StockHubbell Wiring Device-Kellems18.94 @ Qty: 1+
thumbzoomebay.com_grainger5362W132.64132.641In StockHubbell Wiring Device-Kellems132.64 @ Qty: 1+
thumbzoomebay.com_zorotools5362W140.88140.881In StockHubbell Wiring Device-Kellems140.88 @ Qty: 1+
thumbzoomebay.com_mscindustrialsupplyco5362W141.88141.881In StockHubbell Wiring Device-Kellems141.88 @ Qty: 1+
B00CYVD8QQ
Hubbell 5362W

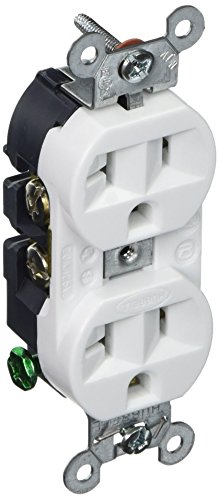

Hubbell 5362W Receptacle, Duplex Straight Blade, Hubbel-Pro, 20A, 125V, SM, White
