Hubbell Wiring Device-Kellems HBL25W47A

Hubbell Wiring Device-Kellems HBL25W47A

mpn:
HBL25W47A
brand:
HUBBELL WIRING DEVICE-KELLEMS
manufacturer:
HUBBELL WIRING DEVICE-KELLEMS
MPN:
HBL25W47A
Weight:
0.023125
Weight:
0.023125 LB
Preferred Price:
69.88
Price:
69.88
Min Simple Price:
38.19
Absolute Min Price:
54.22
Min Price:
54.22
Dimensions:
[5.0, 5.0, 3.0]
qty:
21
simpleSku:
DY4OTU:::HBL25W47A
sku:
DY4OTU::HT:HBL25W47A@y0
condition:
11
seller:
Zoro
amzMan:
hubbell wiring device-kellems
HazMat:
False
DropShip:
False

Attributes

Key ^Value
Amperage Rating15A
Amperage Rating, Amps, Amps - Plugs and Receptacles15
Amperage Rating, Current / Amperage Rating, Current Rating15 A
ApplicationIndustrial/Commercial
ApprovalsCSA, UL
Body TypeStraight
BrandHubbell Wiring Device - Kellems
Brand, ManufacturerHubbell
Catalog Number, Item Number, Manufacturer Part Number, MpnHBL25W47A
Class CodeA08
Color, Color - Plugs and Receptacles, Color FamilyYellow
Conductor Range#14AWG to #12AWG
ConnectionTerminal Screws
Cord Diameter0.300-0.625 in, 3/8 to 5/8 in
Cord Size0.300 in to 0.625 in
Corrosion Resistant, International Shipping, Isolated Ground, Made in USA, MSDS FlagNo
Country of OriginUS - United States, China, CN
Cross Reference Products25W47
Current Stock42
Description - InvoiceCONN, W/TIGHT, L5-15R, 15A, 125V
Dimensions1.85 in L x 4.62 in W, 1.85 x 1.85 x 4.62 in
Dimensions, Size1.85 in x 1.85 in x 4.62 in
Each - Height10.625 in
Each - Length9.000 in
Each - Width1.000 in
ECCNEAR99
EnclosureIP20, NEMA 4/4X/12/IP66
Environmental ConditionsWater Tight
EU RoHS IndicatorContact Manufacturer
Family NameWatertight Devices
Family SeriesHubbell Plugs & Receptacles
For Maximum Cable Diameter0.625 in
For Minimum Cable Diameter0.375 in
Freight Class Code06168002
GradeIndustrial
Gross Weight, Net Weight0.2 lbs
GTIN00783585131320
Harmonization Code8536694020
Height4.62 in
Image Actual Or RepresentativeA
Industry Standard(s), StandardMeets NEMA WD-1, WD-6 And ANSI Standards
InsulationInsulated Body
Item Type, TypeConnector Body
Item, Item - Plugs and ReceptaclesWatertight Locking Connector
Length, Outside Diameter, Overall Length, Width1.85 in
ManufacturerHubbell Wiring Device-Kellems
MaterialElastomer/Composite, Plastic, Elastomer/Composite
Maximum Wire Size10 AWG
Minimum Wire Size18 AWG
MountingCord
NEMA ConfigurationL5-15
NEMA Configuration, NEMA Plug Configuration - Plugs and Receptacles, NEMA Rating, Nema Rating, NEMA TypeL5-15R
NEMA RatingL5-15R, NEMA L5-15R, 5
No. of Poles, Number of Poles2
No. of Wires, Number of Wires3
Number of Conductors3-Wire Grounding
Number Of Poles, Number of Poles2-Pole
Number Of Wires3-Wire
PerformanceElectrical - Current Interrupting - Rated for current interruption per UL498;Electrical - Dielectric Voltage - 2500V AC;Electrical - Max Working Voltage - As marked;Electrical - Temperature Rise - 30?C max per UL498 at rated current;Environmental - UV resistance - All exposed materials are UV stabilized;Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P;Environmental - Operating Temperatures - -40?C (without impact) to +60?C continuous;Mechanical - Cord Accommodation - 0.375"-0.625" (9.5-15.9)
Primary TypeTwist-Lock
Rated Voltage125V
Replaced Catalog Number25W47H
SeriesHBL, Watertight, Twist-Lock Series
SKUZO-G9990793
Special FeaturesWatertight, Locking
Sub BrandTwist-Lock Devices
Sub Class CodeA08A116
SubCategoryElectrical
Temperature RatingMaximum Continuous: 75? C; Minimum Continuous: -40? C w/o impact, -25? with impact.
Temperature Rating (Degrees F)-40 to 75 deg C
Terminal Type, TerminationScrew
TypeGrounding Heavy Duty Non-Shrouded Standard Watertight, Grounding Heavy Duty Shrouded Watertight Cord Mount, Twist-Lock, Connector
UNSPSC39121421
UPC, UPC Code783585131320
Voltage125VAC
Voltage - Plugs and Receptacles125V AC
Voltage Rating125, 125 VAC
Voltage Rating, Voltage Rating Description125 V
WatertightYes
Wire Size16/3 SJ to 10/3 SJ, 18/3 S to 12/3 S
Wiring StyleStandard

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomZoroG999079338.1938.19146Hubbell0.3738.19 @ Qty: 1+
thumbzoomsustainablesupply.comC289010840.1340.131In StockHubbell Kellems0.3740.13 @ Qty: 1+
thumbzoomGalcoHBL25W47A-HBBL40.3440.341In StockHubbell0.240.34 @ Qty: 1+
cbtcompany.comHBL25W47A44.1244.121In StockHubbell Wiring Device-Kellems44.12 @ Qty: 1+
thumbzoomstandardelectricsupply.com230521146.046.01In StockHubbell46.0 @ Qty: 1+
thumbzoomMRO Supply501797246.046.01In Stock14Hubbell Wiring46.0 @ Qty: 1+
thumbzoomgordonelectricsupply.comHBL25W47A46.6946.691In StockHUBBELL46.69 @ Qty: 1+
thumbzoomsimsupply.comZO-G999079350.1350.13142Hubbell50.13 @ Qty: 1+
thumbzoommayerelectric.comHUBHBL25W47A50.3850.381In StockHUBBELL WIRING DEVICES50.38 @ Qty: 1+
steinerelectric.com84980655.8455.841In StockHubbell55.84 @ Qty: 1+
thumbzoomcrescentelectric.com29069558.4458.441In StockHubbell Wiring Device - Kellems58.44 @ Qty: 1+
Graybar2570341563.2863.281In StockHubbell Wiring Device - Kellems63.28 @ Qty: 1+
us.rs-online.com7103416471.1271.1213Hubbell Wiring Device-Kellems71.12 @ Qty: 1+
thumbzoomNewark47Y789373.7473.741In StockHUBBELL WIRING DEVICES73.74 @ Qty: 1+
thumbzoomRaptor SuppliesAH8XMC78.4379778.437971In StockHUBBELL WIRING DEVICE-KELLEMS78.43797 @ Qty: 1+
kirbyrisk.com312363282.4182.411In StockHubbell82.41 @ Qty: 1+
Hubbell Wiring Device-Kellems HBL25W47A

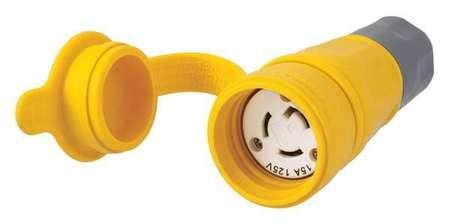

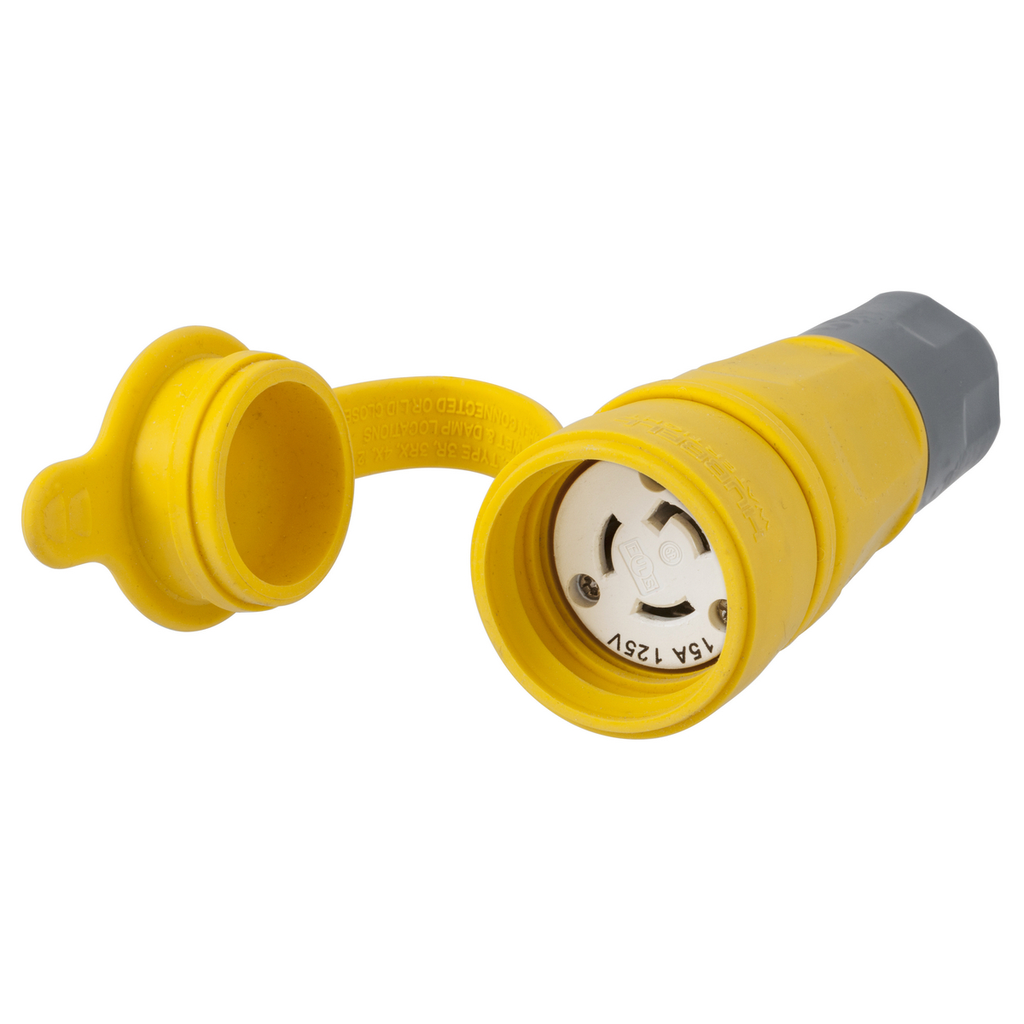

15A Watertight Locking Connector 2P 3W 125VAC
