Hubbell Wiring Device-Kellems HBL2640

B00IPBM9K0

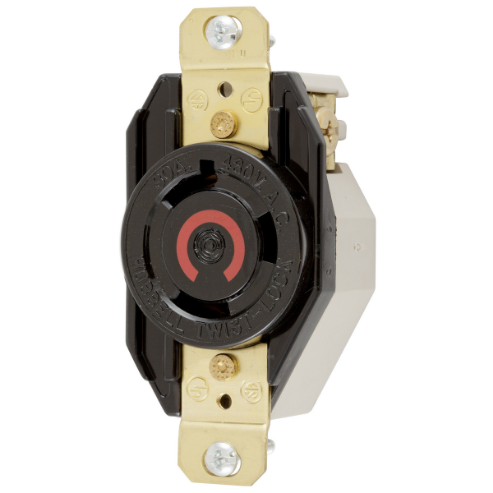

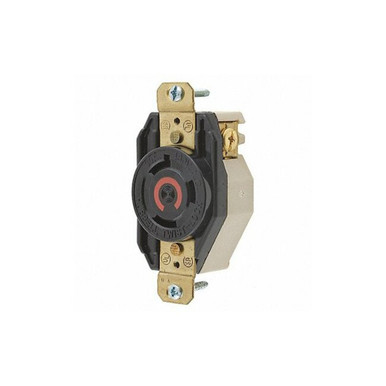

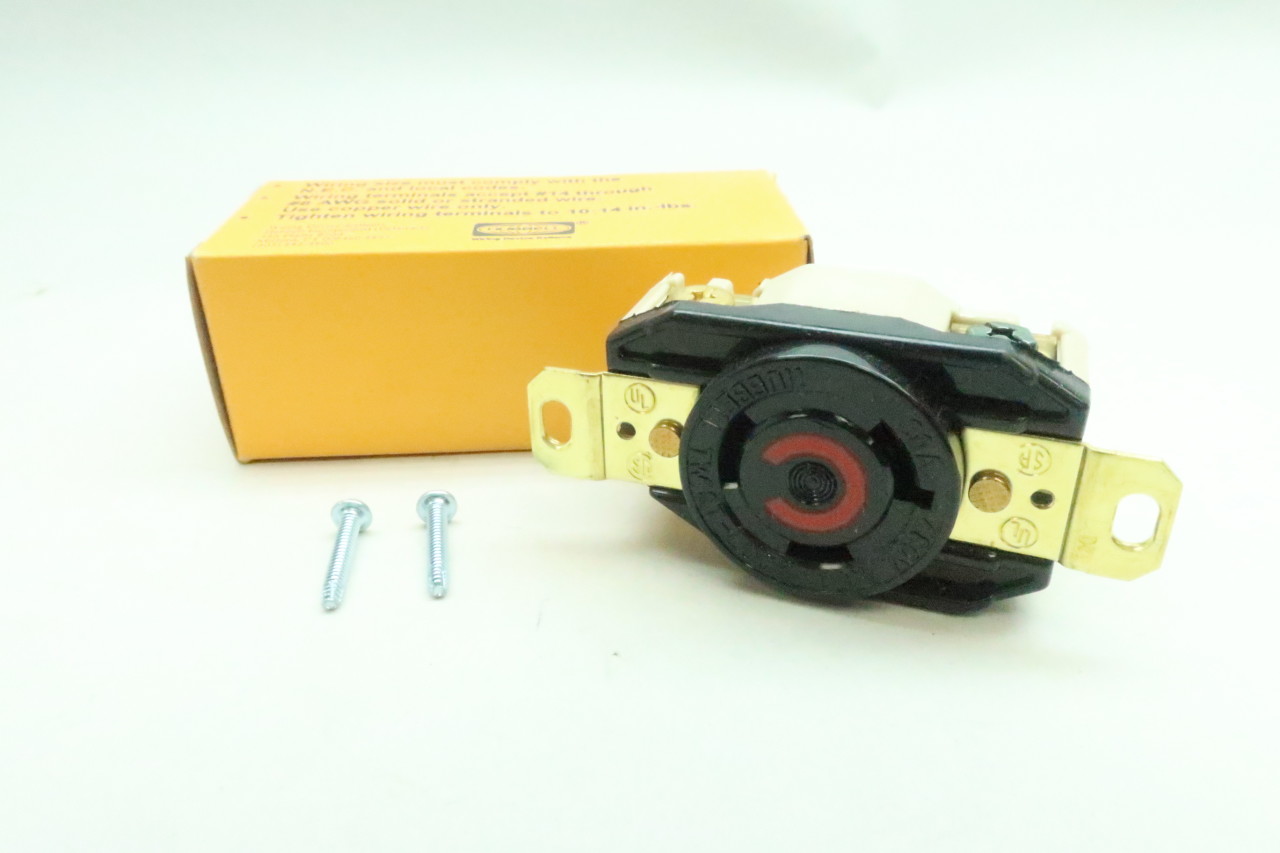

Locking Devices, Twist-Lock, Industrial, Flush Receptacle, 30A 480V AC, 2-Pole 3-Wire Grounding, L8-30R, Screw Terminal, Black

Locking Devices, Twist-Lock, Industrial, Flush Receptacle, 30A 480V AC, 2-Pole 3-Wire Grounding, L8-30R, Screw Terminal, Blackzoom

Attributes

Key Value
AFCINo
Amperage30 A
Amperage Rating30A
ApplicationHeavy Duty Industrial
ApprovalsCSA, UL
AWG Range#16 AWG to #8 AWG
BrandTwist-Lock, Hubbell
ColorBlack
Color FamilyBlack
Connection OrientationStraight
ConnectivityBack and Side Wired
Contact MaterialBrass
Corrosion ResistantNo
Country of OriginUS - United States
Cover TypeNo Cover
Current / amperage rati.30 A
Current Rating30 A
Current rating30 A
Current Stock47
Dielectric strengthWithstands 2,000V minim.
Dimensions3.28 in x 1.7 in x 1.31.
Display TypeStandard Sized Product
ECCNEAR99
Environmental conditionsIndoor Dry Unless Prote.
Family NameTwist-Lock? Family
Family SeriesHubbell Plugs & Recepta.
Flange DiameterNot Applicable
Flange HeightNot Applicable
Flange TypeNon-Flanged
Flange WidthNot Applicable
For EnvironmentDry
For LocationIndoor
GradeIndustrial
Gross Weight0.265 lbs
GroundingGrounded
Height1.31 in., 1.31 in
Horsepower Rating5 hp
Housing ColourBlack
Housing MaterialNylon
HP5
IncludesMounting Hardware
Includes Mounting Hardw.Yes
International ShippingNo
IP RatingIP20
Isolated GroundNo
ItemLocking Receptacle
Item NumberHBL2640
Lead TimeExpected to ship in 1-2.
Length3.28 in., 3.28 in
ManufacturerHubbell
Manufacturer Part NumberHBL2640
MarketIndustrial
MaterialNylon
Material - mounting har.Screw Mounting
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size8 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size16 AWG
Mount TypeFlush
MpnHBL2640
NEMA ConfigurationL8-30P
NEMA Enclosure Rating1
Nema RatingL8-30R
NEMA Receptacle Configu.L8-30R
Net Weight0.235 lbs
No. of Poles2
No. of Wires3
Number of Gangs1
Number of poles2-Pole
Number of Poles2
Number of Wires3
Number of wires3-Wire
Operating temperatureMaximum continuous 75C .
Phase1, Single, Single phase
PolarizedYes
Rated Voltage480V ac
Resistance PropertiesImpact Resistant
SeriesInsulgrip Series
ShroudedNo
SKUZO-G2565333
Special FeaturesLocking
StandardCertified to CSA C22.2 .
StandardsUL/CSA
SubCategoryElectrical
TerminationScrew
TypeSingle Flush Receptacle.
UL 94 Flammability Rati.V-2
UNSPSC39121406
UPC783585236063
UPC Code783585236063
Voltage480 VAC
Voltage Rating480V ac, 480 V
Voltage rating descript.480 VAC
WatertightNo
Width1.7 in.
Width (in)1.7
Wire Connection TypeScrew Terminals
Wire size#16 AWG to #8 AWG
Wiring StyleStandard

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialD70583627.481In StockHUBBELL27.48 @ 1
thumbzoomsustainablesupply.comC120889737.651In StockHubbell0.2737.65 @ 1
thumbzoomKelly HayesHBL264038.86192Hubbell Wiring Device-Kellems38.86 @ 1
Onlinecomponents.comHBL264040.551In StockHubbell40.55 @ 1
thumbzoomZoroG50659226650.01In StockHubbell50.0 @ 1
Sager ElectronicsHBL264050.341In StockHubbell Wiring Device-Kellems50.34 @ 1
standardelectricsupply.com13580052.431In StockHubbell52.43 @ 1
thumbzoomMRO Supply102126452.431In StockHubbell Wiring52.43 @ 1
AmazonSCB00IPBM9K057.621In StockHubbell Wiring Device-Kellems57.62 @ 1
thumbzoomFrench GerlemanHUBHBL264058.381In StockWiring Device-Kellems58.38 @ 1
thumbzoomGalcoHBL2640-HBBL58.721In StockHubbell0.26558.72 @ 1
thumbzoomsimsupply.comZO-G256533359.53147Hubbell59.53 @ 1
steinerelectric.com2660160.661In StockHubbell Wiring Device-Kellems60.66 @ 1
Graybar8812645065.5872120Hubbell Wiring Device - Kellems65.5872 @ 1
thumbzoomRadwellHBL264070.0114HUBBELL KELLEMS70.0 @ 1
Newark14C504272.31In StockHUBBELL WIRING DEVICES72.3 @ 1
thumbzoombscsource.comHBL264074.391In StockHubbell Wiring Device-Kellems74.39 @ 1
us.rs-online.com7057485082.5311Hubbell Wiring Device-Kellems82.53 @ 1
grainger.caHBLHBL264084.752366621In StockHUBBELL WIRING DEVICE-KELLEMS0.2784.75236662 @ 1
thumbzoomNational Supply Network5403542389.161In StockHubbell Wiring Device-Kellems89.16 @ 1
kirbyrisk.com489068103.44113Hubbell103.44 @ 1
thumbzoomRaptor SuppliesAE7ZFG106.5504961In StockHUBBELL WIRING DEVICE-KELLEMS106.550496 @ 1
thumbzoomebay.com_industrialmotion1HBL2640119.941In StockHubbell Wiring Device-Kellems119.94 @ 1
thumbzoomebay.com_zorotoolsHBL2640140.951In StockHubbell Wiring Device-Kellems140.95 @ 1
thumbzoomebay.com_graingerHBL2640167.651In StockHubbell Wiring Device-Kellems167.65 @ 1
